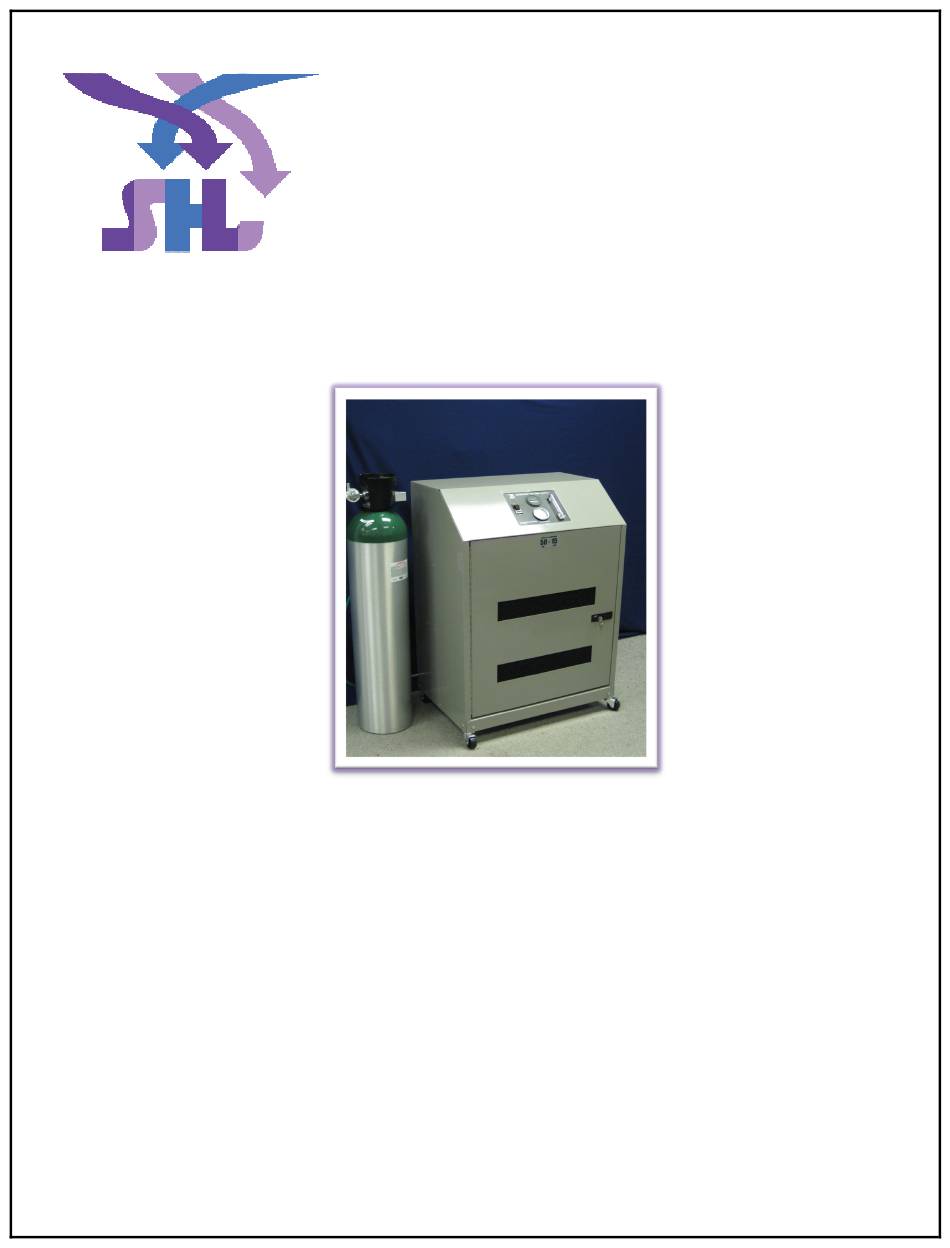

- Page 1 VETROSON® Oxy-Gen™ Systems Installation, Operation & Maintenance Manual SUMMIT HILL LABORATORIES 3 Sheila Drive Tinton Falls, NJ 07724 Phone 732-933-0800 Fax 732-933-0055 Toll Free 1-800-922-0722 sales@summithilllaboratories.com www.summithilllaboratories.com...
-
Page 3: Table Of Contents
Table of Contents FREIGHT DAMAGE CLAIMS & INITIAL INSPECTION ........... 1 SAFETY PRECAUTIONS ......................2 SETUP & INSTALLATION INSTRUCTIONS ................ 3 SHUTDOWN PROCEDURES ....................5 WARRANTY ..........................6 LIMITS OF LIABILITY ......................7 PROBLEM SYMPTOMS ......................8 EXTERNAL COMPONENTS DESCRIPTION ................ 9 .......................... -
Page 5: Freight Damage Claims & Initial Inspection
Freight Damage Claims & Initial Inspection The Receiver Tank and Generator will be packed in separate boxes. Both boxes should be opened and inspected immediately upon delivery. The large box contains the Generator. The second box contains the Receiver Tank and other components. Both boxes will be shipped on one pallet. -
Page 6: Safety Precautions
Safety Precautions It is very important that you read the precautions below and make yourself and others operating the VETROSON® Oxy-Gen™ System aware of the hazards of oxygen in general. While oxygen can be handled and used very safely, it can be dangerous if mishandled. -
Page 7: Setup & Installation Instructions
Setup & Installation Instructions Although every VETROSON® Oxy-Gen™ System is thoroughly tested and checked before it is shipped from our factory, the following checks are necessary to ensure that none of the internal components has been damaged in shipment. 1. Make a visual inspection of the machine, receiver tank unit and stand. 2. - Page 8 c. Power supply for the VETROSON® Oxy-Gen™ System: The VETROSON® Oxy-Gen™ System must be positioned within 8 feet (2.2 meters) of a grounded electrical outlet that will power it. It must have a dedicated line. It is very important NOT to use any extension cords with the unit, as these cords could overheat and melt, possibly causing a fire.
-
Page 9: Shutdown Procedures
5. You should be able to feel oxygen being discharged from the lower left oxygen outlet port. If you do not feel oxygen, call Summit Hill Laboratories customer service for assistance. 6. Turn the machine off. You’re ready to connect the receiver tank. One end of the 3' oxygen hose is already connected to the receiver tank at the factory. -
Page 10: Warranty
Laboratories. Summit Hill Laboratories will pay shipping charges back to the practice. This Warranty shall also become null, void and not binding on SHL if a defect or malfunction occurs in the product or any part of the product as a result of user error including but not limited to: A failure to operate the VETROSON®... -
Page 11: Limits Of Liability
This Warranty may be transferred to subsequent owners of the VETROSON® Oxy- Gen™ System only with the prior written approval of SHL. The warranties above are given expressly in lieu of any other warranty stated or implied and constitute the only warranties made by SHL. -
Page 12: Problem Symptoms
Problem Symptoms Before checking below, verify power to unit. Low oxygen pressure This may be the result of a leak in the external and/or system. Test all oxygen hoses and lines for leaks. Low purity has not yet been pressure may also be the result of exceeding the LPM reached the unit is designed to produce or blocked filters. -
Page 13: External Components Description
VETROSON® Oxy-Gen™ System External Components Description Generator Vent Ports - Three rectangular vent ports are positioned in the front to accept large particle filters. Oxygen (O2) hose Outlet This female fitting is at the lower left-hand side. The 3' hose from the receiver tank connects to it. -
Page 14: Vetroson® Oxy-Gen™ Generator Specifications
VETROSON® Oxy-Gen™ Generator Specifications Volts Starting Running Power Weight Width Depth Height Model Delivers Amps Amps Watts (Lbs.)* (Inches) (Inches) (Inches) VGS2015 20 PSI, 15 LPM VGS5015 50 PSI, 15 LPM 1610 *Weights shown are for the generator only. The Receiver Tank weighs an additional 34# The shipping weight will be more due to the box, packing material and pallet. -
Page 15: Routine Maintenance Instructions
Routine Maintenance Instructions Filter Replacement Depending upon the model, one or more pleated HEPA Air Intake Filters (VGS1500) are used. VGS1500 consists of two parts: the HEPA Filter component and a foam filter which caps it. They fit into the round holes at the rear of the unit. The HEPA filter should be replaced every 6 months or every 500 hours or sooner if indicated. -
Page 16: Technical Service And Assistance
Technical Service and Assistance Technical service personnel are available at Summit Hill Laboratories from 9:00 A.M. through 5:00 P.M. Eastern Standard Time: - By Telephone from within the United States For Immediate Assistance: (800) 922-0722 Summit Hill Laboratories Main Office (732) 933-0800 Summit Hill Laboratories Main Office - By Telephone from outside the United States +(1) (732) 933-0800...
