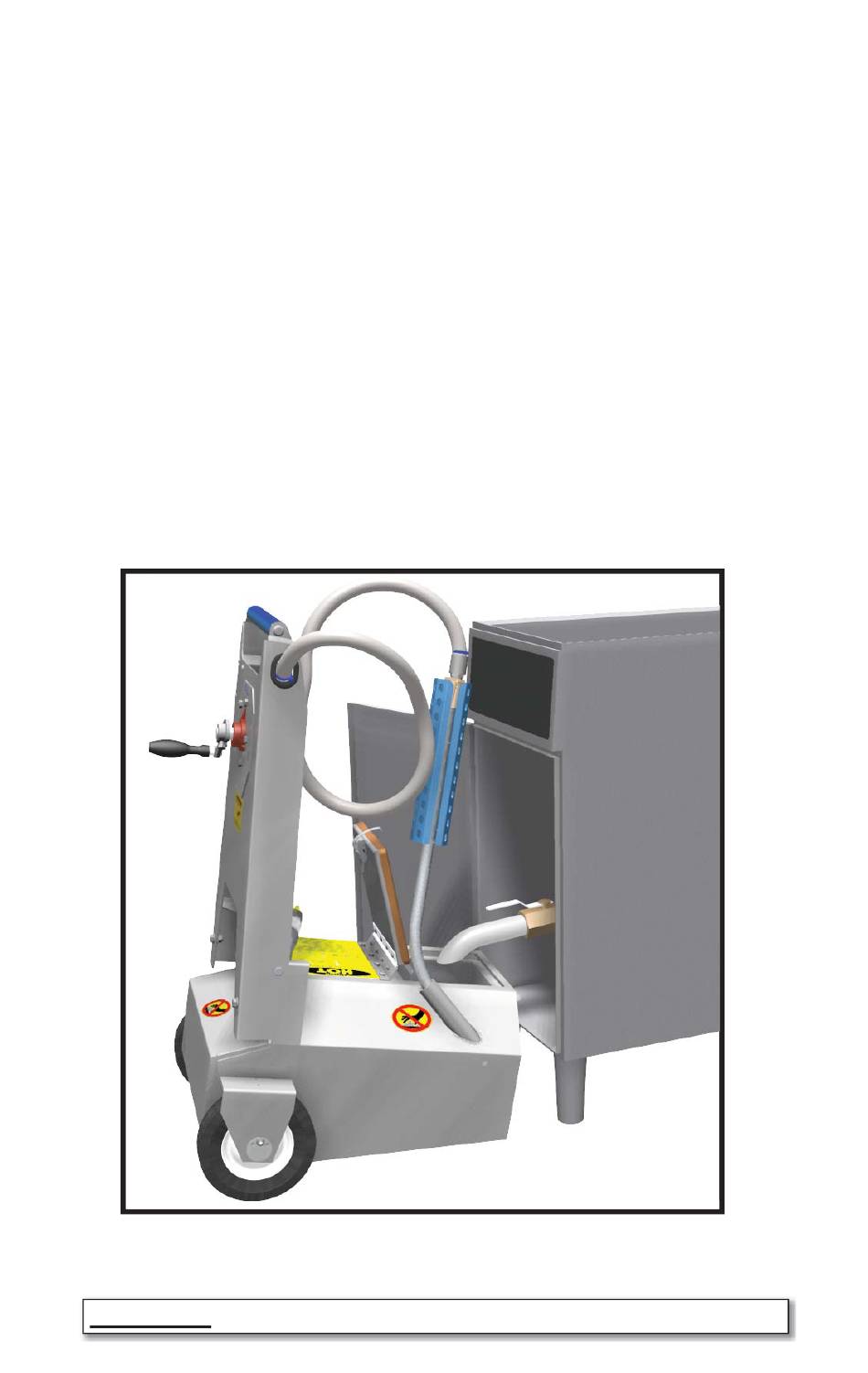

- Page 1 ® Shortening Shuttle Pump Simplicity Series Model # S-914-W Assembly, Operation Care Manual CAUTION: Read instructions carefully before using to insure safe operation.
-
Page 2: Safety Precautions
Safety Precautions Please read carefully and follow all safety precautions to ensure maximum safety. Maximum temperature the tank of the Shuttle Pump will safely º withstand: 300 Warning: You MUST wear proper clothing when operating this unit. We recommend using heat resistant Safety Gloves. - Page 3 1 SP-BS-100, Basket Strainer Shuttle Wand (SS-WAND) Note: Before beginning assembly inspect all included parts to be sure there is no shipping damage. Contact the shipper immediately if there is any damage. ® The Shortening Shuttle Pump has been designed for quick and...
- Page 4 Firmly tighten the bolt. Caution: Overtightening will break the handle. This completes the assembly of the ® Shortening Shuttle Pump. Please read the next section to learn how to operate the unit safely. fi gure 2...
- Page 5 ® How To Use The Shortening Shuttle Pump ® The Shortening Shuttle Pump has been designed for safety, durability and ease of use. It is very maneuverable thus is well suited to narrow aisles and tight spaces. ® If the Shortening Shuttle Pump has not been used in a while then priming the pump is recommended.
- Page 6 ® Wheel the Shortening Shuttle Pump to the disposal site. Using Safety Gloves, Un-stow the hose or optional wand and hold it in the disposal container.
- Page 7 Using the Optional Basket Filter (SP-BF-200) you may fi lter your ® oil. If you are going to be fi ltering your oil with the Shortening Shuttle Pump then before you fi lter you MUST dump at least one tank of oil to the dumpster to fl...
- Page 8 (Do Not use any caustic cleaning agents). Clean inside by wiping with a cloth or paper towels. Do Not put water inside the ® Shortening Shuttle Pump. Warning: If water is pumped through the unit the pump will be damaged by subsequent rust deposits.
- Page 9 Troubleshooting: Crank turns freely but no oil is being pumped: If the crank turns very freely but no pumping is occuring then the pump may need to be primed. Solution: Disconnect the Long H2 Hose from the pump at the Quick disconnect and pour 1/4 to 1/2 cup oil clear oil into the pump, this should prime it so that suction will now occur.
- Page 10 Crank turns but no oil is being pumped: If the crank & pump turns but no oil is being pumped then there may be a blockage in the suction tube/hose or the suction tube screen is blocked. Solution: First check and clear any blockage around the suction tube screen.
- Page 11 ® Shortening Shuttle Pump Replacement Parts Long Hose Assm........914-H2 Short Hose Assm........ 914-H3-Y1 12” Handle Kit ........914-203 Double Wheel Kit ........914-204 Wheel Bracket Kit .........914-205 Safety Gloves, heat resistant ....914-207 Red Pump ..........914-960 Cover Assembly ........914-211 Tefl on Glide Block ........914-213 Basket Strainer ........
- Page 12 12 Month Warranty ® If, within twelve months from date of purchase, this Shortening Shuttle Pump fails due to a defect in materials or workmanship, simply call us and we will repair or replace it free of charge. Note: this does not include parts that normally wear.
