A. Setting up the screen:
Follow the steps below and Fig. 1 & 2.
1. Place the screen in an upright position (fig.1) with the
legs toward the ground.
2. Deploy the Tripod Support legs by pushing down on
the Tripod Junction.
3. Turn the tripod's screen casing in a 90-degree
horizontal position so that the screen casing is now
parallel to the ground with the screen handle facing the
bottom of the top hook.
4. Completely extend the legs as much as possible so
they are stable and position them away from objects that
may interfere with their balance. DO NOT stand the
tripod on an unstable platform to avoid an injury should
the tripod screen collapse.
Tripod Series
Tripod Projection Screen
USER'S GUIDE

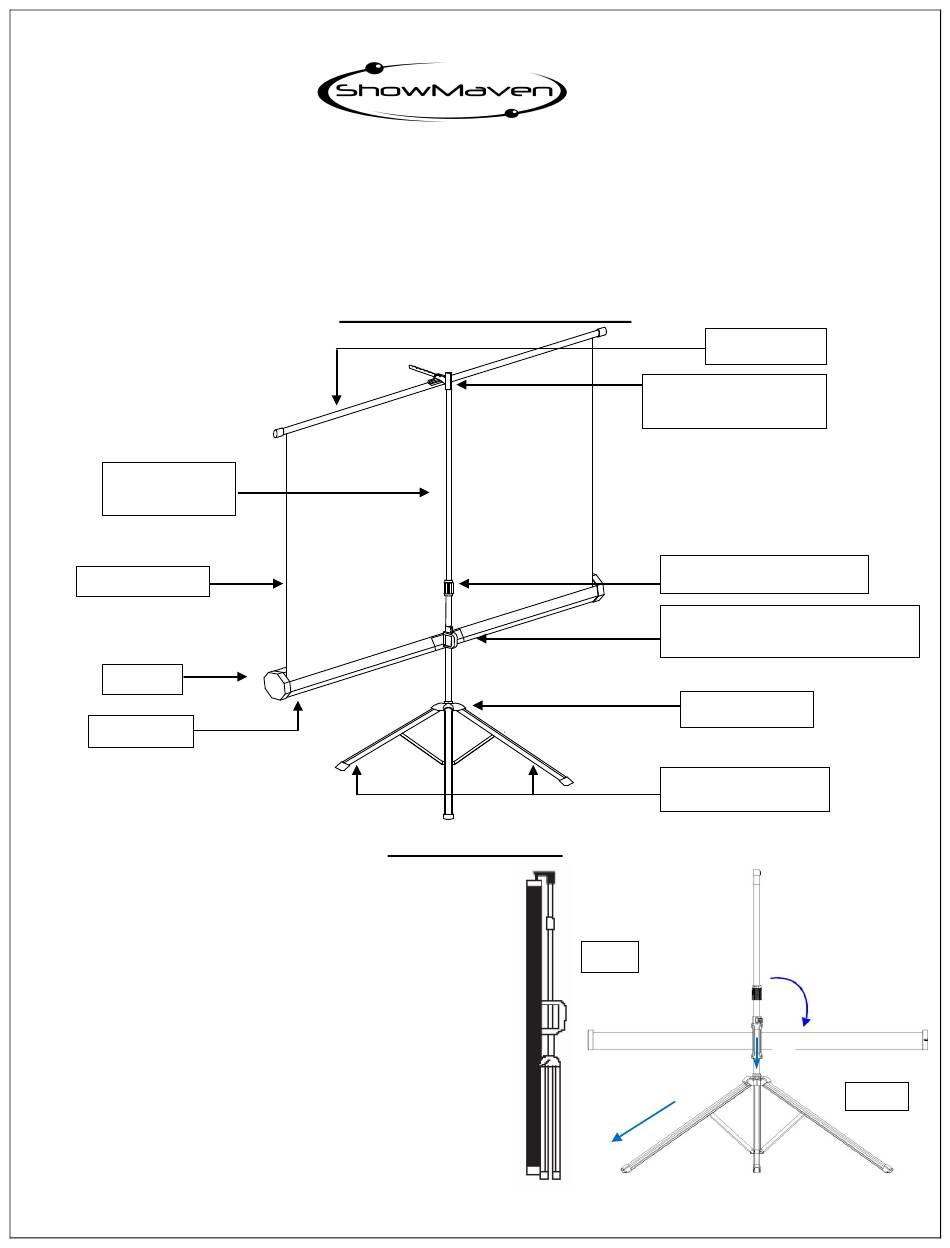

Tripod Screen Parts Identification
Tripod Screen Setup
1
Support beam
Top hook & Screen
handle
Vertical locking sleeve ring
Carrying handle & Screen height
adjustment lock/release tab
Tripod junction
Tripod Support Legs
1
Fig.1
4
3
2
Fig. 2
