Shanghai Berry Electronic Tech Co., Ltd

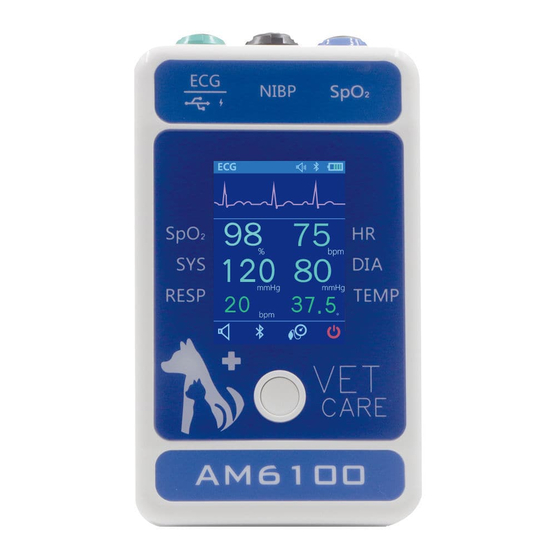

AM6100 Animal Monitor
AM6100 Animal Monitor
Operation Manual
(V1.1)
Shanghai Berry Electronic Tech Co., Ltd
www.shberrymed.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AM6100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Berry AM6100

  • Page 1 Shanghai Berry Electronic Tech Co., Ltd AM6100 Animal Monitor AM6100 Animal Monitor Operation Manual (V1.1) Shanghai Berry Electronic Tech Co., Ltd www.shberrymed.com...

  • Page 2: Version Information

    Shanghai Berry Electronic Tech Co., Ltd AM6100 Animal Monitor Version Information Version date content V1.0 2016/7/21 Create this document. V1.1 2018/8/24 Fix the details.

  • Page 3: Preface

    Berry) owns the intellectual property rights to this manual. Berry intends to maintain the contents of this manual as confidential information. Disclosure of the information in this manual in any manner whatsoever without the written permission of Berry is strictly forbidden.
  • Page 4 Shanghai Berry Electronic Tech Co., Ltd AM6100 Animal Monitor Manufacturer’s Responsibility All information contained in this manual is believed to be correct. Berry shall not be liable for errors contained herein nor for incidental or consequential damages in connection with the furnishing, performance, or use of this manual.
  • Page 5 Shanghai Berry Electronic Tech Co., Ltd AM6100 Animal Monitor  Any Berry product which has been subjected to misuse, negligence or accident;  Any Berry product from which Berry original serial number tag or product identification markings have been altered or removed;...

  • Page 6: Table Of Contents

    Shanghai Berry Electronic Tech Co., Ltd AM6100 Animal Monitor Contents Version Information ........................... I Preface.............................. II Contents ............................V Chapter 1 Safety ..........................1 1.1 Warnings .......................... 2 1.2 Cautions ........................... 3 1.3 Notes ..........................3 Chapter 2 Basic ..........................4 2.1 Monitor Description ......................
  • Page 7 Shanghai Berry Electronic Tech Co., Ltd AM6100 Animal Monitor 5.4.2 Measurement Procedure ..................27 5.4.3 Precautions ......................27 Appendices ............................29 Basic Specification ........................29 Environmental Specifications ....................29 Parameters Specifications ....................... 30 Battery and AC adapter ......................31 Bluetooth ..........................32...

  • Page 8: Chapter 1 Safety

    Shanghai Berry Electronic Tech Co., Ltd AM6100 Animal Monitor Chapter 1 Safety The safety statements presented in this chapter refer to the basic safety information that the operator of the animal monitor shall pay attention to and abide by. There are additional safety statements in other chapters or sections, which may be the same as or similar to the followings, or specific to the operations.

  • Page 9: Warnings

    Shanghai Berry Electronic Tech Co., Ltd AM6100 Animal Monitor 1.1 Warnings WARNING  This is a kind of monitoring device, not treatment device.  To ensure animal safety, verify the device and accessories can function safely and normally before use.

  • Page 10: Cautions

    Shanghai Berry Electronic Tech Co., Ltd AM6100 Animal Monitor 1.2 Cautions CAUTION  The monitor for the ordinary sealed equipment, users should guarantee the surface dry, clean and prevent the liquid in.  Install or carry the animal monitor properly to avoid damages caused by drop, impact, strong vibration or other mechanical force.

  • Page 11: Chapter 2 Basic

    Shanghai Berry Electronic Tech Co., Ltd AM6100 Animal Monitor Chapter 2 Basic 2.1 Monitor Description This monitor integrates the functions of parameter measurement, waveform monitoring, etc. Its color TFT liquid crystal display is able to show animal parameters and waveform clearly. The monitor also features compact size, lightweight, easy-to-carry handle and built-in battery, which make it portable in clinic, ward, even at home.

  • Page 12: Features

    Shanghai Berry Electronic Tech Co., Ltd AM6100 Animal Monitor 2.2 Features  Compact size, lightweight, easy-to-carry handle.  Result and Waveform are shown on the TFT in real time.  Low-power dissipation.  Built-in battery. Support both Bluetooth 3.0 and BLE 4.0 communication.

  • Page 13: Accessories

    Shanghai Berry Electronic Tech Co., Ltd AM6100 Animal Monitor 3. SpO2: SpO2 sensor connector. 4. Display: TFT LCD. 5. Key: Power on and perform functions. 6. Nameplate. 2.4 accessories ECG & TEMP cable, NIBP cuff and hose, SpO2 sensor and AC adapter.

  • Page 14: Chapter 3 Installation

    Shanghai Berry Electronic Tech Co., Ltd AM6100 Animal Monitor Chapter 3 Installation 3.1 Unpacking and checking Before unpacking, examine the packing case carefully for signs of damage. If any damage is detected, contact the carrier or our company. If the packing case is intact, open the package and remove the instrument and accessories carefully.
  • Page 15 Shanghai Berry Electronic Tech Co., Ltd AM6100 Animal Monitor Figure 3-1 ECG & TEMP Cable Figure 3-2 NIBP Cuff Figure 3-3 NIBP Hose Figure 3-4 SpO2 Sensor...

  • Page 16: Power On

    Shanghai Berry Electronic Tech Co., Ltd AM6100 Animal Monitor 3.3 Power On Once connected the Sensors or Probes as the Figure 2-1, you can press the Button on the panel to light on the TFT LCD.

  • Page 17: Chapter 4 Operations And Display

    Shanghai Berry Electronic Tech Co., Ltd AM6100 Animal Monitor Chapter 4 Operations and Display 4.1 Display This monitor has a color TFT LCD display. It is able to display animal parameters and waveforms clearly. The following is the standard interface when the monitor is operating normally.

  • Page 18: Operations

    Shanghai Berry Electronic Tech Co., Ltd AM6100 Animal Monitor 4. SpO2: Oxyhemoglobin saturation. 5. HR/PR: Heart Rate or Pulse Rate. 6. SYS: Systolic blood pressure. 7. DIA: Diastolic blood pressure. 8. RESP: Respiration Rate 9. TEMP: Body Temperature. 10. Voice Button.

  • Page 19: Charge

    Shanghai Berry Electronic Tech Co., Ltd AM6100 Animal Monitor  When button is selected , Long Press the Key can toggle the on-off state of the Voice. And if the voice is enable, the symbol will be shown in the status bar at the top of the TFT LCD.
  • Page 20 Shanghai Berry Electronic Tech Co., Ltd AM6100 Animal Monitor NOTE The capacity of the internal battery is limited. When the battery capacity is too low, The Battery Indicator will blink , At this moment, the AC power shall be applied to the monitor.

  • Page 21: Bluetooth

    BLE 4.0. So the monitor can be connected with most of the other smart terminal, such as PC, Android phone and Apple phone. The Figure 4-2 show a picture of Android demo. For more details about the protocol, refer to the file AM6100 Monitor Communication Protocol.pdf Figure 4-2 Android App...

  • Page 22: Chapter 5 Monitoring

    Shanghai Berry Electronic Tech Co., Ltd AM6100 Animal Monitor Chapter 5 Monitoring 5.1 ECG Monitoring 5.1.1 Introduction The electrocardiogram (ECG) is a graphical record of electric potentials generated by the heart muscle during each cardiac cycle. These potentials are detected on the surface of the body using electrodes attached to the extremities and chest wall, and are then amplified by the electrocardiograph machine and displayed on special graph paper.

  • Page 23: 3-Lead Wire Electrode Placement

    Shanghai Berry Electronic Tech Co., Ltd AM6100 Animal Monitor  Shave hair from skin at chosen sites.  Gently rub skin surfaces at sites to remove dead skin cells.  Thoroughly cleanse the site with a mild soap and water solution (do not use ether or pure alcohol because they will increase skin impedance).
  • Page 24 Shanghai Berry Electronic Tech Co., Ltd AM6100 Animal Monitor American Standard European Standard Label Color Label Color White Black Yellow Green Following is the configuration per American Standard when using three lead wires: RA (right arm) electrode: The right front leg.

  • Page 25: Precautions

    Shanghai Berry Electronic Tech Co., Ltd AM6100 Animal Monitor 5.1.4 Precautions WARNING  Use only the specified ECG cable for monitoring.  When applying electrodes or connecting cables, make sure they are not connected to any conductive part or the ground. Verify that all ECG electrodes, including neutral electrodes, are securely attached to the animal.

  • Page 26: Spo2 Monitoring

    Shanghai Berry Electronic Tech Co., Ltd AM6100 Animal Monitor 5.2 SpO2 Monitoring 5.2.1 Introduction SpO2 monitoring is a non-invasive technique used to measure the amount of oxygenated haemoglobin and pulse rate by measuring the absorption of selected wavelengths of light. The light generated in the probe passes through the tissue and is converted into electrical signals by the photodetector in the probe.

  • Page 27: Measurement Limitations

    Shanghai Berry Electronic Tech Co., Ltd AM6100 Animal Monitor Figure 5-2 proper site to attach the sensor 5.2.3 Measurement Limitations If the accuracy of any measurement does not seem reasonable, first check the animal‟s vital signs by an alternate method. Then check the instrument for proper function.

  • Page 28: Precautions

    Shanghai Berry Electronic Tech Co., Ltd AM6100 Animal Monitor  Excessive ambient light;  Improper sensor installation or incorrect sensor placement on the animal;  Concentration dysfunctional hemoglobin, such carboxyhemoglobin and methemoglobin;  SpO2 too low;  Low circular perfusion of the applied part;...
  • Page 29 Shanghai Berry Electronic Tech Co., Ltd AM6100 Animal Monitor venous syringe.  Prolonged and continuous monitoring may increase the risk of burns at the site of the sensor. It is especially important to check the sensor placement, and ensure proper attachment on neonates and animals of poor perfusion or skin sensitive to light.

  • Page 30: Nibp Monitoring

    Shanghai Berry Electronic Tech Co., Ltd AM6100 Animal Monitor 5.3 NIBP Monitoring 5.3.1 Introduction The Non-invasive Blood Pressure (NIBP) module measures blood pressure using the oscillometric method. This monitor can be applied to adult, pediatric, and neonatal animals. 5.3.2 Monitoring Procedure...

  • Page 31: Cuff Selection And Placement

    Shanghai Berry Electronic Tech Co., Ltd AM6100 Animal Monitor 5.3.3 Cuff Selection and Placement 1． Identify the animal limb circumference. 2． Select appropriate cuff; limb circumference is identified on each cuff. 3． Verify the cuff is completely deflated; place cuff around extremity being used and make sure the marking “ARTERIA”...

  • Page 32: Measurement Limitations

    Shanghai Berry Electronic Tech Co., Ltd AM6100 Animal Monitor 5.3.4 Measurement Limitations Measurements are impossible with heart rate extremes of less than 40bpm or greater than 240bpm. The measurement may be inaccurate or impossible:  If a regular arterial pressure pulse is hard to detect.

  • Page 33: Precautions

    Shanghai Berry Electronic Tech Co., Ltd AM6100 Animal Monitor 5.3.5 Precautions WARNING  The width of the cuff should be either 40% of the limb circumference or 2/3 of the upper arm length. The inflatable part of the cuff should be long enough to circle 50-80% of the limb.

  • Page 34: Temp Monitoring

    Shanghai Berry Electronic Tech Co., Ltd AM6100 Animal Monitor 5.4 TEMP Monitoring 5.4.1 Introduction This monitor use the thermal sensitive resistance to measure body temperature. the temperature probe of the thermistor resistance changes along with the body temperature. Then the monitor will measure the value of the resistance and calculate the temperature of the body.
  • Page 35 Shanghai Berry Electronic Tech Co., Ltd AM6100 Animal Monitor over-bent, mechanical damage may occur.  If you are in doubt about the accuracy of any reading(s), check the animal's vital signs by an alternative method before checking the function of the monitor.

  • Page 36: Appendices

    Shanghai Berry Electronic Tech Co., Ltd AM6100 Animal Monitor Appendices Basic Specification Size: 145mm*85mm*37mm Weight: 240g LCD: 2.4 inch color TFT LCD Environmental Specifications Temperature: Operating: -10℃ - +40℃ Storage: -25℃ - +85℃ Relative humidity: Operating: 30% to 85% (non condensing)

  • Page 37: Parameters Specifications

    Shanghai Berry Electronic Tech Co., Ltd AM6100 Animal Monitor Parameters Specifications ECG: Waveform: Lead I Band width 0.05Hz-100Hz(3dB) diagnose mode 1-40Hz monitor mode 0.1-25Hz operation mode Heart rate: Scope: 15 bpm to 300 bpm Accuracy: ± 1 bpm SpO2: Detection scope: 35%-100% Accuracy: ±...

  • Page 38: Battery And Ac Adapter

    Shanghai Berry Electronic Tech Co., Ltd AM6100 Animal Monitor Detection accuracy: Static pressure: ± 4mmHg Resp: Chest impedance method Scope : 0 bpm to 100 bpm Accuracy: ± 1bmp Temp: Type: Vascular/surface temperature 20℃～50℃ Scope: ±0.2℃ Accuracy: Battery and AC adapter Built-in Battery: 3.7V, 1800mAh lithium battery.

  • Page 39: Bluetooth

    Shanghai Berry Electronic Tech Co., Ltd AM6100 Animal Monitor Bluetooth Built-in dual mode Bluetooth, include Bluetooth 3.0 and BLE 4.0, more details about the transfer protocol refer to AM6100 Animal Monitor Communication Protocol.
