Summary of Contents for Britec GENERATOR HOIST V22

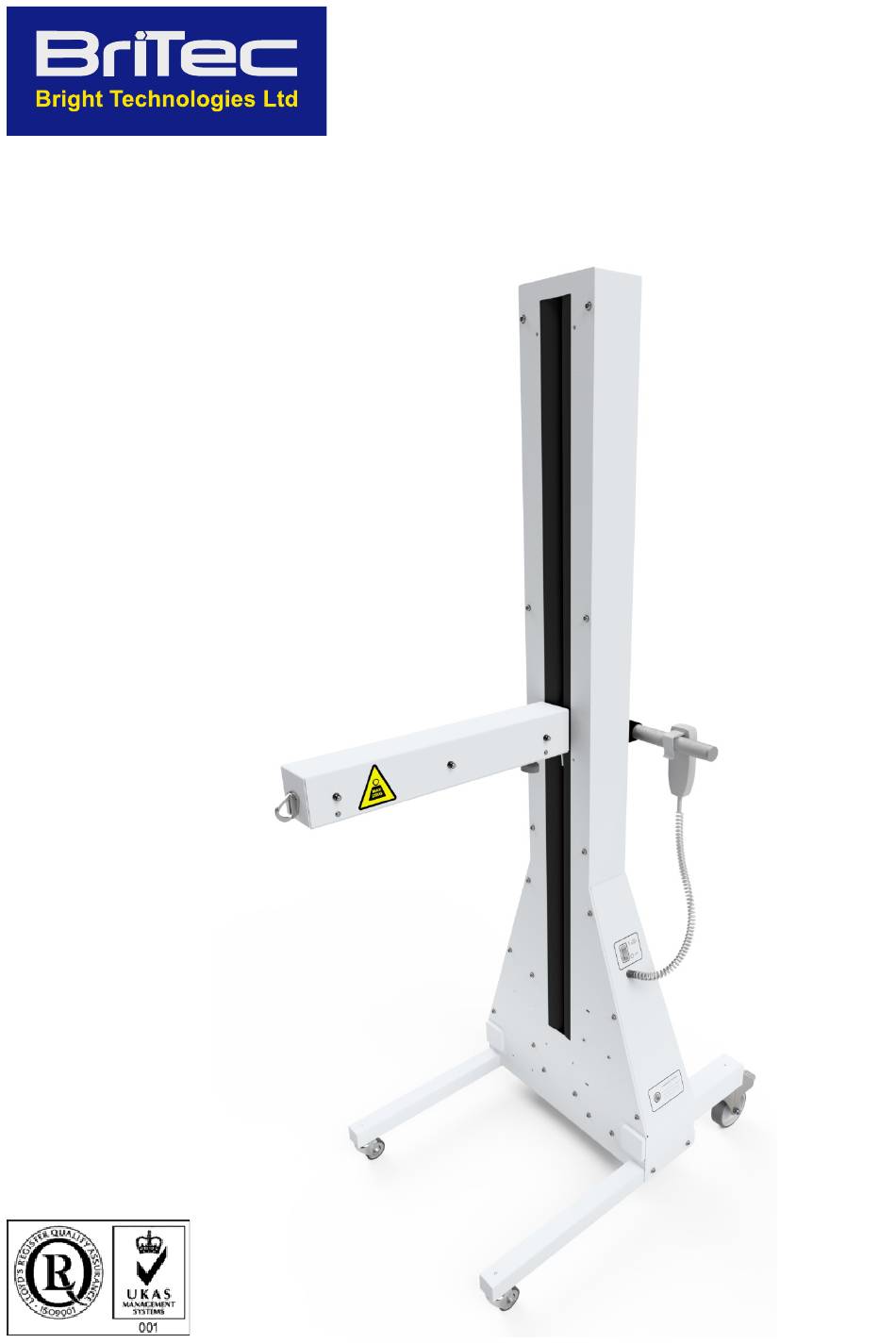

- Page 1 GENERATOR HOIST V22 User Guide Document: GenHoist-UG-01.01...
- Page 2 Unpacking Carefully remove all packaging materials Avoid using sharp objects which may damage the surface finishes All missing or damaged parts must be reported to Bright Technologies Ltd within four days of receipt of the package Contents Included in Package Generator Hoist Charger with 13 Amp socket adaptor...
-
Page 3: General Information
Please read the whole of this User Guide and familiarise yourself with the Generator Hoist before operating the device The design of the Generator Hoist V22 has been reviewed from top to bottom with upgrades to provide improved features and performance for lifting and transporting Tc generators around nuclear medicine departments. - Page 4 Generator Hoist V22 Dimensions...
-
Page 5: Key Features
Key Features Pull Handle Boom Arm Hand Controller Boom Hook Boom Lock Power Switch Overload Reset Charging Socket Locking Castor... - Page 6 Lifting and Transporting a Generator The following procedure is illustrated with a Curium Tekcis generator which utilises the custom designed clamp. The clamp is not required for Curium TKW genera- tors— simply attach the webbing strap to the boom arm hook. 1) Position hoist with boom hook aligned over the generator 2) Position the clamp over the Tekcis...
- Page 7 3) Switch the power ON 4) Use the hand controller to lower the boom arm so the hook is over the Tekcis generator —adjust the position of the hoist if needed 5) Check boom arm is locked (clockwise) 6) Attach the clamp/strap to the boom hook and raise the generator clear of the floor NOTE...
- Page 8 7) Transport the hoist & generator to desired location 8) Lock the rear castors 9) Use hand controller to raise the generator above the level of the work surface...
- Page 9 10) Unlock the boom arm and extend as necessary Then lock the boom arm 11) Use hand controller to lower the generator into position and disconnect the clamp/strap 12) Retract and lock the boom 13) Switch OFF the power 14) Unlock the castors 15) Return the hoist to storage...
-
Page 10: General Care And Maintenance
General Care & Maintenance Charging the Battery The hoist is powered by a sealed 24V lead/acid battery. Although power consumption is relatively low it is important to maintain full battery charge. • Insert the jack plug into the charging socket •... - Page 11 Notes...
- Page 12 Bright Technologies Ltd Britec House Holbrook Commerce Park Holbrook Close Sheffield S20 3FJ www.britec.net info@britec.net +44 (0)114 251 1215...
