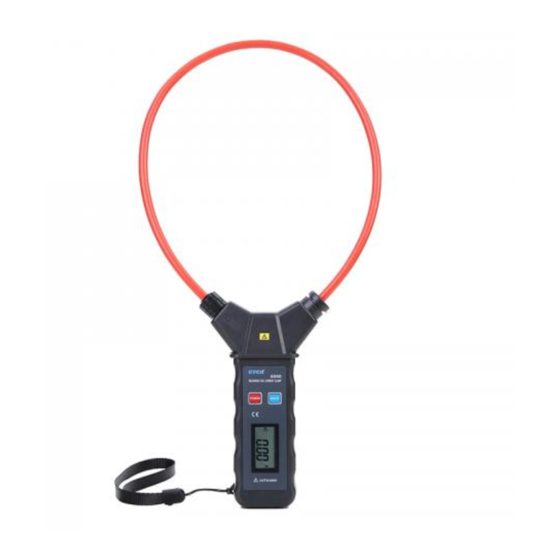

- Page 1 Flexible Coil Clamp Large Current Meter VR-690 USER’S MANUAL 이 자료는 저작권법에 따라 보호받는 저작물이므로 무단배포 및 무단복제를 금하며, 내용의 전부 또는 일부를 이용하려면, 반드시 한국 VictorRuoshui 社 의 서면동의를 받아야 합니다.
- Page 2 www.victorruoshui.co.kr Precaution For Use Thank you for purchasing our Flexible Coil Clamp Large Current Meter, In order to better for use of the product, please be certain: -- Read this user manual carefully. -- Comply with the operating cautions in this manual. ...
- Page 3 www.victorruoshui.co.kr 1. Introduction Flexible Coil Large Current Clamp Meter is designed and manufactured for field testing of AC large current. Widely used in electric power, communications, meteorology, railway, oil field, construction, measurement, scientific research and teaching units, industrial and mining enterprises and other fields.
- Page 4 www.victorruoshui.co.kr Coil Length 628mm φ7.5mm (Suitable for use in narrow environments and cable densely packed Coil Thickness place, etc.) The Measured 50Hz/60Hz(Automatic) Current Frequency Meter Size 190mm×370mm×40mm LCD Size 35mm×21.5mm; Display domain: 32mm×15mm Backlight with backlight, convenient to use in dark site Weight 200g Electric Field...
- Page 5 www.victorruoshui.co.kr 4. Meter Structure 4.1. Flexible Coil 4.2. Lock catch (Turn back and forth according arrow to lock or open the coil) 4.3. POWER key 4.4. LCD 4.5. HOLD Key 4.6. Meter front cover 4.7. Meter back cover 4.8. Battery cover 이...
- Page 6 www.victorruoshui.co.kr 5. Operate Method 5.1. Start-up, Shutdown Press POWER key to start up, LCD display; Press the POWER key again to shut down. The meter start up after 5 minutes, LCD will flashes and indicate that will auto shut down, continue flashes 30s will shut down formally to reduce battery consumption.
- Page 7 www.victorruoshui.co.kr 5.3. Peak Hold In measurement press POWER key (over 3 seconds), display ”PEAK” symbol, and enter into captures mode of peak value, and display “ ” symbol, of the circuit in this time period, and releases the hand to return to the test state. The meter automatically captures the current peak value of the circuit line during this period, release hand and returns to the test state.
- Page 8 www.victorruoshui.co.kr 8. Battery Replacement Warning! The meter cannot test in the situation of the battery cover plate is not covered properly, otherwise it is dangerous Please pay attention to the polarity of battery, or will damage the meter. Low battery, please replace the battery in time If not use the leaker for a long time, please take out batteries.
