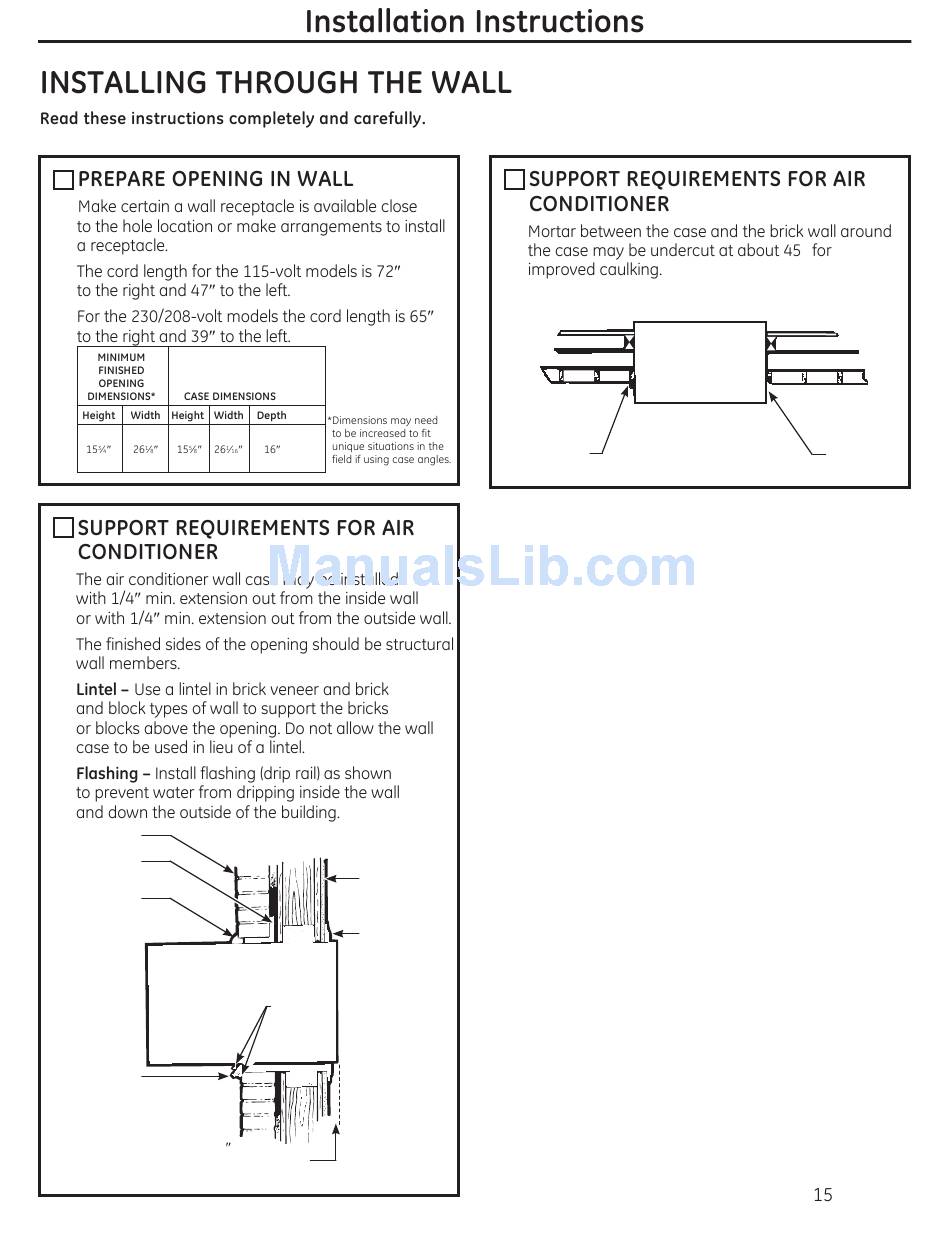

GE AJEM12DCE Owner's Manual & Installation Instructions page 15

1
2
Brick veneer
Lintel angle
(if required)
Caulking
(on all 4 sides
on the outside
and inside
of the case)
Flashing
(drip rail)
1/4 min. extension
inside the wall from
the trim molding
Plaster line
Trim molding
(if desired)
Caulking
(above
Room side
and below
the flashing)
3
Inside
Top of case
Outside
Caulking
°
Undercut
mortar
