Summary of Contents for BROMECH ATP ASP

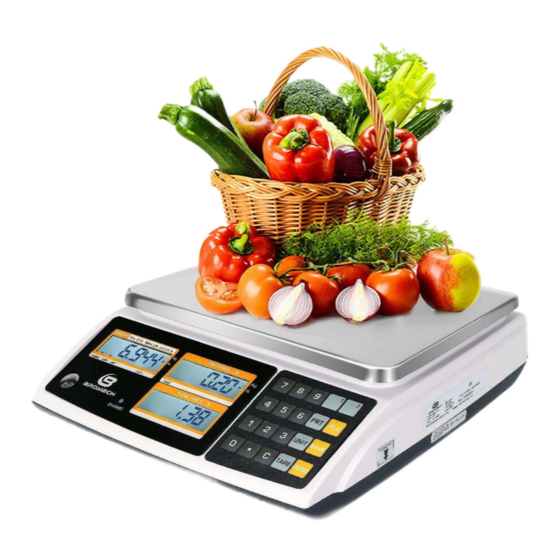

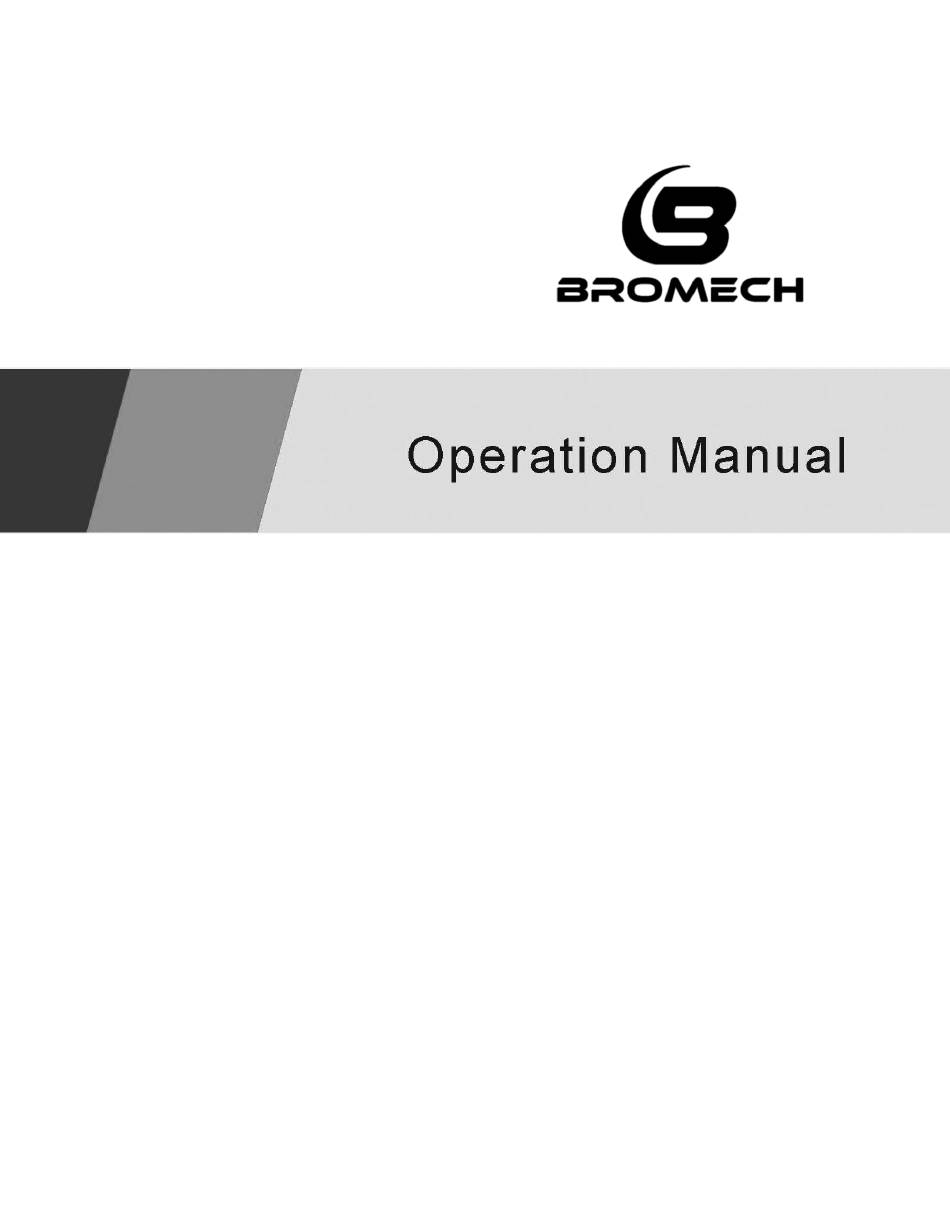

- Page 1 ATP_ASP Price Computing Scales...
-
Page 3: Table Of Contents
ATP_ASP Price Computing Scales Operation Manual Rev:Y2,August,2020 CONTENTS 1.PRECAUTIONS......................- 1 - 2. INTRODUCTION......................- 2 - 3. INSTALLATION......................- 2 - 3.1Unpacking......................- 2 - 3.2 Installation....................... - 3 - 3.3 Leveling......................- 3 - 3.4 Power Connection................... - 3 - 3.5 Rechargeable battery operation..............- 3 - 3.5.1 Charging Battery...................- 4 - 3.5.2 Battery maintenance................ -
Page 5: Precautions
1.PRECAUTIONS WARNING DISCONNECT ALL POWER TO THIS UNIT BEFORE INSTALLING, CLEANING, OR SERVICING. FAILURE TO DO SO COULD RESULT IN BODILY HARM OR DAMAGE THE UNIT. CAUTION Permit only qualified persons to service the instrument Before connecting or disconnecting any components, remove the power. -
Page 6: Introduction
Rev:Y2,August,2020 ATP_ASP Price Computing Scales Operation Manual 2. INTRODUCTION ZTP /ZSP series of economic price computing scales are very compact, reliable , high accuracy and much stable. It use15mm LCD display with white LED back light Weighing unit conversion ... -
Page 7: Installation
ATP_ASP Price Computing Scales Operation Manual Rev:Y2,August,2020 3.2 Installation Remove transport lock from bottom of the scale base Place the scale on a level surface Install the stainless steel pan to the four hole on top of housing ... -
Page 8: Charging Battery
Rev:Y2,August,2020 ATP_ASP Price Computing Scales Operation Manual Approximately 30 minutes of instrument usage are left; afterwards it will shut off automatically. Please use the supplied battery charger for charging the battery immediately,or scale cannot be used. 3.5.1 Charging Battery ... -
Page 9: Display&Keys Funtion
ATP_ASP Price Computing Scales Operation Manual Rev:Y2,August,2020 4. DISPLAY&KEYS FUNTION Indication Zeroing Display Stable Display Zero Net Weight Display Stable Low Battery Current Weighing units BATT. Charging Indication kg /lb Save Indicator Charge SAVE Keyboard Numeric Keys, enter unit price / PLU； Keys Function In setting mode ,press numeric keys to enter... -
Page 10: Operation
Rev:Y2,August,2020 ATP_ASP Price Computing Scales Operation Manual 5. OPERATION Initial Start-up Warm-up time of 15 minutes stabilizes the measured values after switching on. Power switch is located below the right side of the scale. 1. Power ON/OFF Turn the scale ON; press the switch forward and hold. The scale will show the capacity and enter a self-test mode and follow to enter the weighing mode. -
Page 11: Unit Price Setting
ATP_ASP Price Computing Scales Operation Manual Rev:Y2,August,2020 5. Unit Price Setting Weight Unit Price Total Price Make sure platform is empty and display is zero. 0.000 0.00 0.00 Place goods to be weighed on the platform. Enter the unit price by pressing numeric 1 500 0.00 0.00... -
Page 12: Automatic Unit Price Clear
Rev:Y2,August,2020 ATP_ASP Price Computing Scales Operation Manual Display will be shown, which unit price is stored. 0000 Place the load on the platform, total price will be calculate automatically. 6.2 Direct PLU Setting ZTP/ZSP can store 2 direct unit price values. Save to memory By pressing numeric keys enter the unit price 10. -
Page 13: Back Light Setting
ATP_ASP Price Computing Scales Operation Manual Rev:Y2,August,2020 Recall the direct or indirect PLU,the unit price will appear. Load the items on the platter. After stable indicator on,Press key to print out the format. 9.Back light Setting ATP/ASP have an option to choose the back light operation. In normal weighing mode,Press and hold key until to show the display... -
Page 14: Calibration
Rev:Y2,August,2020 ATP_ASP Price Computing Scales Operation Manual 6. CALIBRATION Turn on the scale. Press and hold key during the self test. Display will show “Pn” briefly PIN is activated. Press the PIN number to get into the parameter menu.The default PIN number is Press numeric key 0 four times , display will be shown Pn - - - - “0000”... - Page 15 ATP_ASP Price Computing Scales Operation Manual Rev:Y2,August,2020 Pounds test weights list Model # (1/3 Weight) (2/3 Weight) (Full capacity) Maximum ZTP_ZSP-6 2 lb 4 lb Minimum ZTP_ZSP-12 4 lb 8 lb 12 lb ZTP_ZSP-30 10 lb 20 lb 30 lb ZTP_ZSP-60 20 lb 40 lb...
