A SHYFT Group Brand
Please be sure to check that your cigarette plug outlet is properly fused. Testing the light before this fuse is properly
installed will void the warranty on the light.
Our visor light is designed to be mounted on the inside of your vehicle. It is not intended for exterior applications.
It is the sole responsibility of the owner to ensure the warning light is secure. Check your light every time you enter
the vehicle to ensure that it is mounted securely.

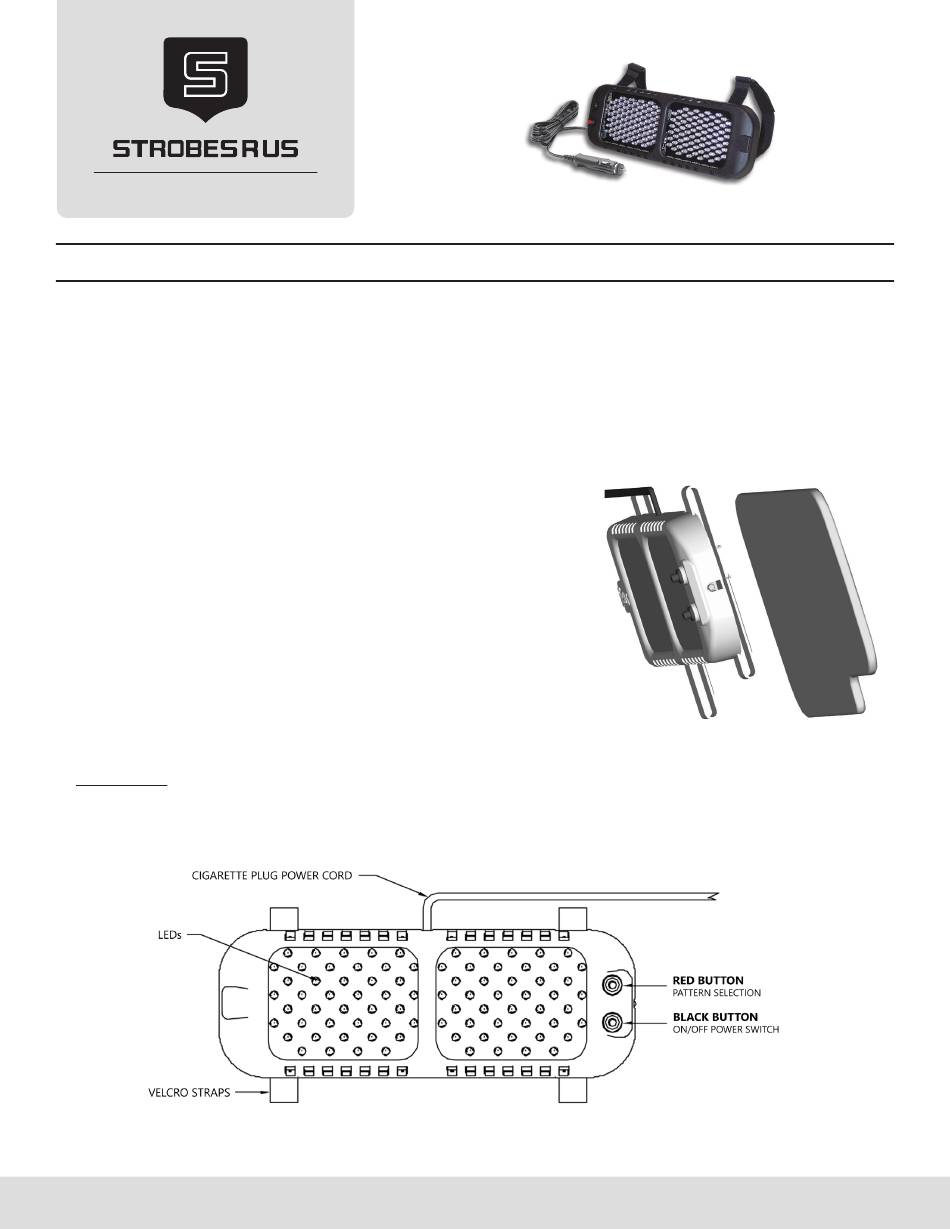

MOUNTING

The lighter plug and the velcro straps allow quick and easy installation.
1. Place the vehicle's sun visor in the "down" position and use the two
Velcro straps to attach the light to the visor, with the cigarette plug
cord exiting the top of the light.
2. The VL22 must be mounted with the power cord exiting the top of
the light or the tilt-switch will not function properly.
3. With the flat side of the light mounted against the visor and the
LEDs pointing towards the windshield, adjust the straps so that the
light may be slid over the end of the visor. Once in place, tighten the
straps to the desired tension.
4. Route the wire across the top of the visor and down to your cigarette
plug outlet.
IMPORTANT:
Once the light is secured, route your cord such that it does not interfere with the vision of the driver or the operation
of the steering wheel, gear shifter, and/or any airbags.
SRUS-VL22 Install manual
SRUS-VL22 LED VISOR LIGHT
INSTALL MANUAL
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STROBESRUS SRUS-VL22 and is the answer not in the manual?

Questions and answers

Summary of Contents for SHYFT STROBESRUS SRUS-VL22

  • Page 1 A SHYFT Group Brand SRUS-VL22 LED VISOR LIGHT INSTALL MANUAL Please be sure to check that your cigarette plug outlet is properly fused. Testing the light before this fuse is properly installed will void the warranty on the light. Our visor light is designed to be mounted on the inside of your vehicle. It is not intended for exterior applications.
  • Page 2 OPERATION ON/OFF BUTTON: There are two push-button switches located to the right on the face of this visor light . The bottom button is BLACK and switches the unit ON and OFF. When the unit is switched ON, the red LED in-between the two buttons, will illuminate signifying that the light is in Standby Mode.
  • Page 3 PATTERN PROGRAMMING The RED push-button switch is the Pattern Select button. Each time this button is pressed, the light will cycle to the next pattern. This light is designed with 24 patterns. The light will cycle back to the first pattern after pattern #24. Flash pattern Pattern Description Shortcuts...
