Summary of Contents for Bonvoisin YQK-70

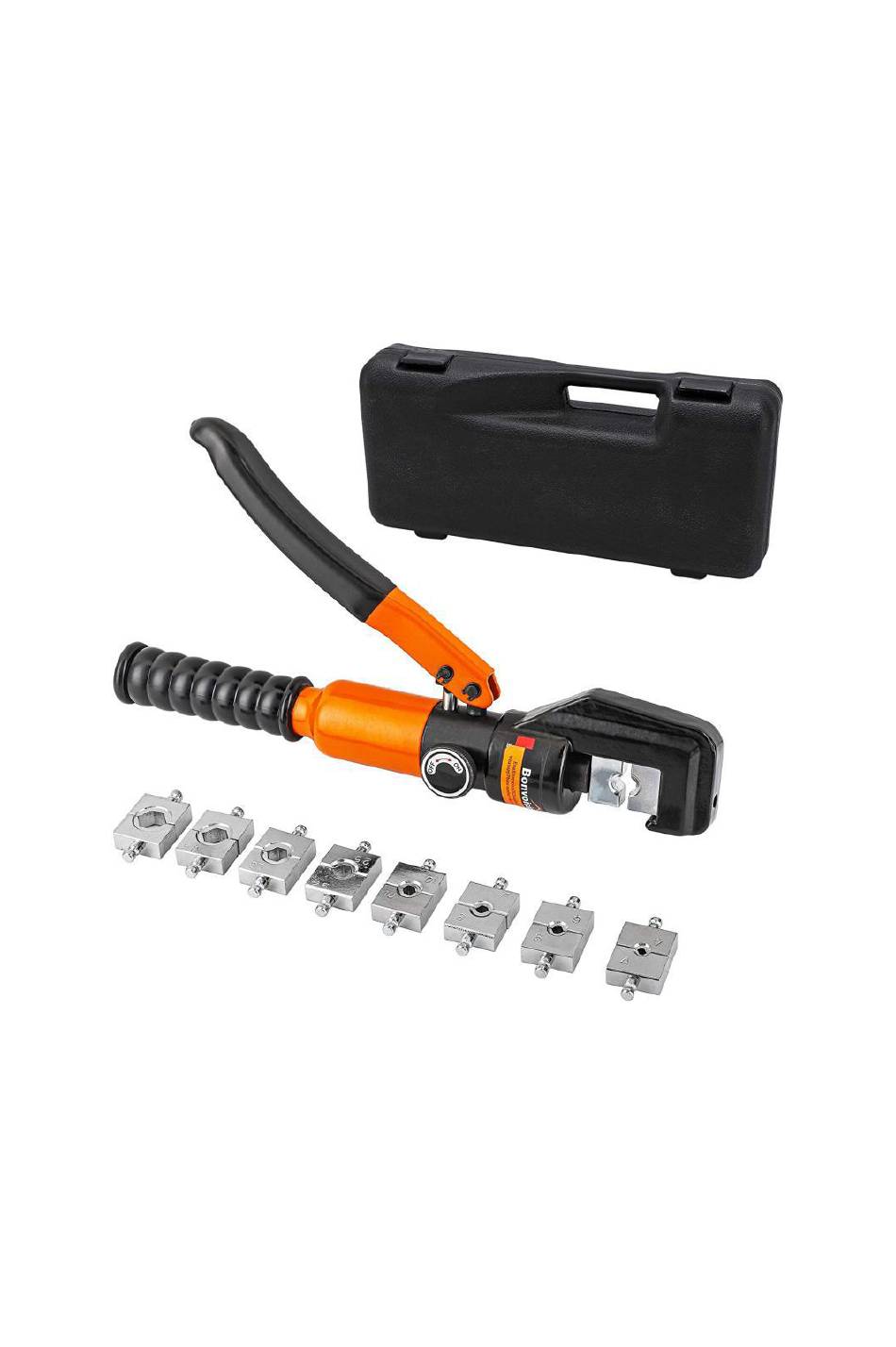

- Page 1 Bonvoisin US YQK Hydraulic Wire Crimper Please be sure to read before using...
- Page 2 If a product defect occurs during the year you purchased it, we will provide technical support. If you have any questions or complaints about the product, please let us know. *Contact Us Store: Bonvoisin Email address: bonvoisin2020us@hotmail.com Business days: Monday-Saturday (excluding holidays) Business hours: 8: 00 ~ 17: 00...
- Page 3 1. Parameters Model YQK-70 YQK-120 YQK-240 YQK-300 Output Force Stroke 10mm 16mm 16mm 16mm Aluminum Aluminum Aluminum Aluminum terminal of terminal of terminal of terminal of 10-185 10-240 Crimping 6-95 mm² / 4-50 mm² / mm² / mm² / Copper...
- Page 4 2.Product Structure Introduction Number Name Function crimping die Replaceable crimping die. clamp head seat Fix the mold. oil return bolt Quickly reset the lower die seat and piston. movable handle Pressurize the hydraulic pump. fixed handle Store hydraulic oil and handle. movable clamp head pin Fix the mold.
- Page 5 3. Instructions & Precautions Before using this tool, please carefully check whether the tool head and handle are intact to ensure safety.
- Page 6 Note: The movable handle pin must be completely inserted into the clamp head seat, otherwise a personal accident may occur.
- Page 7 Warning! 1. No part of this tool shall be hammered or knocked. When the working head, handle and other parts of the tool are damaged, it will increase personal injury accidents. 2. When there is no mold in the working jaw, please do not perform crimping operation, otherwise it will damage the tool and may cause personal injury! 3.
- Page 8 4. Precautions for repair and maintenance 1. The hydraulic pump of this series of manual hydraulic crimping tools has a precise structure, and internal parts are not allowed to be disassembled at will. Any damage caused by the user's unauthorized disassembly or improper use is not covered by our dealer's or manufacturer's warranty.
- Page 9 Warning! ·Please lock the movable handle during the oil change to prevent air from entering the hydraulic system. · If the hydraulic oil is contaminated or contains air, the sealing element of the tool will be damaged, and the tool cannot be used normally.
- Page 10 5. Common faults and troubleshooting methods Fault type Cause Analysis Troubleshooting method 1. The tool is 1. Replenish or replace out of oil. hydraulic oil. 2. There are 2. Loosen the oil return bolt, A. There is no trace swing the movable handle, pressure output or impurities in or change the hydraulic oil.
