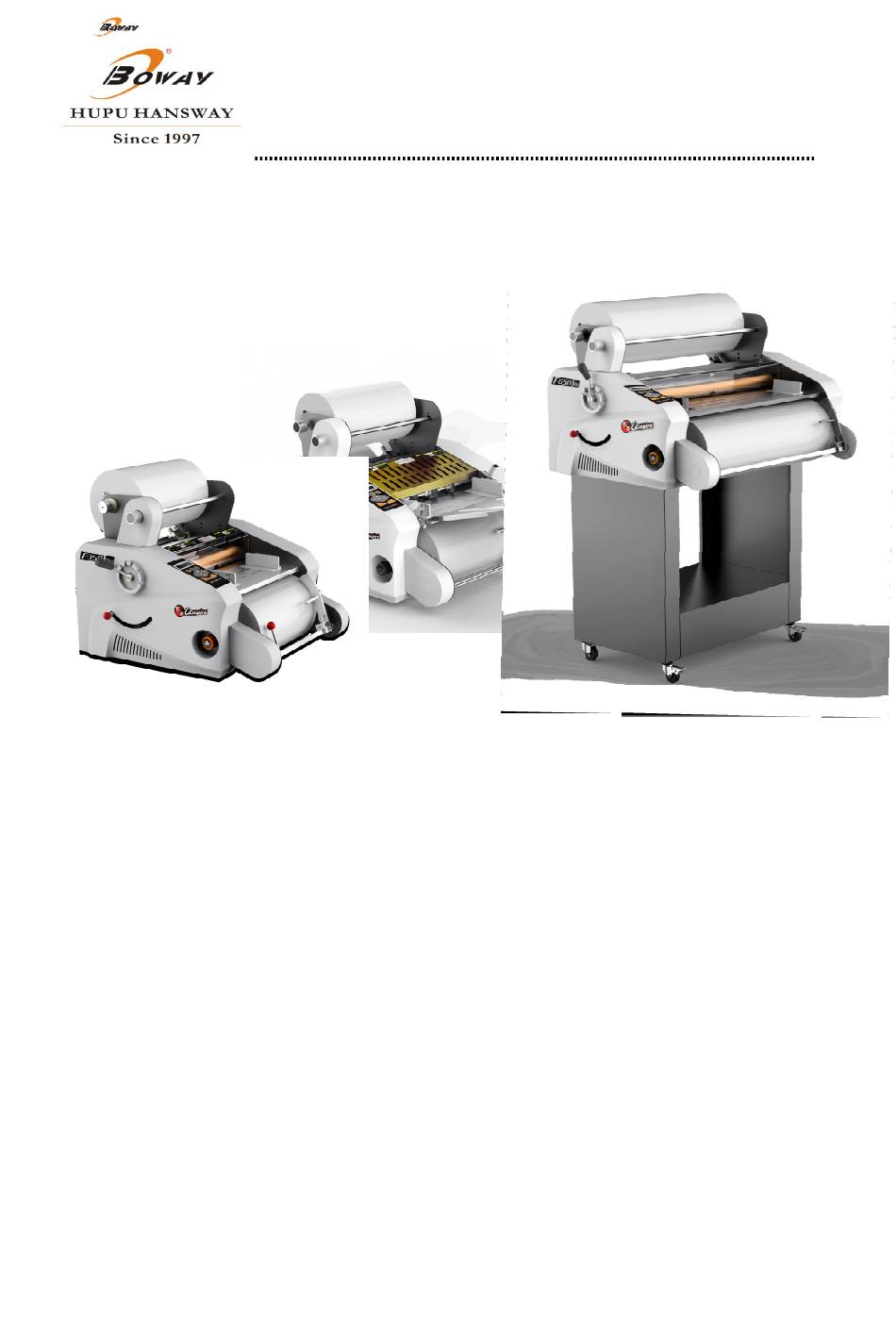

- 1 -
F350/F650 Roll Laminator Manual
HANGZHOU FUYANG HUIBO HANSWAY TRADING CO.,LTD.
ADD: NO.1216,GONGYUANXI ROAD, JINQIAO INDUSTRIAL PARK FUYANG,
HANGZHOU,CHINA
TEL: +86-571-63368676 +86-571-63168822
+86-571-61718035/8036/8980/8981
FAX: +86 20 28819702-25160
E-MAIL:boway@bowaychina.com
WEBSITE:www.bowaychina.com www.fullar.net
If any change, we won't make the notice, please make the object as the standard.
March.2014. December(second edition)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F350 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Boway F350

  • Page 1 - 1 - F350/F650 Roll Laminator Manual HANGZHOU FUYANG HUIBO HANSWAY TRADING CO.,LTD. ADD: NO.1216,GONGYUANXI ROAD, JINQIAO INDUSTRIAL PARK FUYANG, HANGZHOU,CHINA TEL: +86-571-63368676 +86-571-63168822 +86-571-61718035/8036/8980/8981 FAX: +86 20 28819702-25160 E-MAIL:boway@bowaychina.com WEBSITE:www.bowaychina.com www.fullar.net If any change, we won’t make the notice, please make the object as the standard.

  • Page 2: Table Of Contents

    - 1 - F350/F650 Roll Laminator Manual Contents ........................- 1 - oreword ： ......................- 2 - Notes of safety 1、 ..............错误！未定义书签。 Open box and check 2、 ............错误！未定义书签。 Name and function of parts 3、 ....................- 7 - Technical parameter 4、...
  • Page 3 - 2 - F350/F650 Roll Laminator Manual -03- Forward Thank you for your choosing our product. In order to correct use this product , kindly read this manual carefully. Take care every operate detail. Therefore it will help your operate skills and make the perfect production and improve the operate speed.
  • Page 4 - 3 - F350/F650 Roll Laminator Manual 1、Open box and check Kindly check the accessory, after open the laminator box， any damage or miss, kindly contact the agent or head company. 1.Machine……………………………1pc 2.CD Manual……………………1pc 3.Warranty card…………………………1pc 4.Attachment Tools………………………1pc 5.Film（Installed)…………………………1pc F350A...

  • Page 5: 2、Name And Function Of Parts

    - 4 - F350/F650 Roll Laminator Manual 2、Name and function of parts Before use and install this machine, Kindly know the name and function of parts by the below photo ——————————————————————————————————————————————————— F350 series General Parts Thread film shaft Safety cover Left Paper fixed position guide 纸张定位左侧规...
  • Page 6 - 5 - F350/F650 Roll Laminator Manual ——————————————————————————————————————————————————— ——————————————————————————————————————————————————— F350D/E Parts Name Feeding desk handle Side guide Feeding paper extended plate Clutch handle Feeding paper desk Adjust wheel of skewing ——————————————————————————————————————————————————— F650series General Parts Safety cover Up film tension adjusting handle...
  • Page 7 - 6 - F350/F650 Roll Laminator Manual ——————————————————————————————————————————————————— ——————————————————————————————————————————————————— F650B/E Parts Name Collect film tension adjusting handle ——————————————————————————————————————————————————— F650E Parts Name Feeding desk handle Feeding paper desk Clutch handle Adjust wheel of skewing ———————————————————————————————————————————————————...

  • Page 8: 3、Technical Parameter

    - 7 - F350/F650 Roll Laminator Manual 3、Technical Parameter Model F350A F350B F350C F350D F350E F650A F650B F650E Paper width 130-350 130-350 130-350 130-330 130-330 130-650 130-650 130-640 （mm） paper length 110-700 110-700 110-700 150-700 150-700 110-700 110-700 150-700 （mm）...

  • Page 9: 4、Controllable Parts And Keys

    - 8 - F350/F650 Roll Laminator Manual 4、Controllable parts and keys 4.1. Power switch Shift to the upper（“ON”），power on Shift to the lower（“OFF” ），power off Power switch 4.2. Confirm key press“E” key to choice the menu functions ,press，when you choose someone function，press“∧”“∨”to select the parameters，and press “E”,parameters will flicker and press”E”...
  • Page 10 - 9 - F350/F650 Roll Laminator Manual 4.4.Up key 、 Down key “∧”“∨”up or down for the menu，increase or decrease for the Up key Down key parameters. 4.5.Set temperature key After press“setting temp.”，temp. display will flicker，means it’s can ∧ ∨...
  • Page 11 - 10 - F350/F650 Roll Laminator Manual through the cover sensor.The main motor will stop when the paper is left the cover sensor, press” start key” again to quit from auto model. 4.9.2、F350D、F350E、F650E“Start key”functions： ①when the indicator is not light, the motor rotate at low speed, for feeding film and troubleshooting, loose the start key, it will stop.

  • Page 12: 5、How To Use The Machine

    - 11 - F350/F650 Roll Laminator Manual 4.15.Laminating mode press“E”key into menu，press“∧” “ ∨”key to choose “laminating mode”menu，press“E”to confirm，laminating mode key is shinning， mode detail: double sides laminating、up laminating、down laminating。 press “∧” “ ∨” according your demand to choose the laminating mode, press “E”to confirm.
  • Page 13 - 12 - F350/F650 Roll Laminator Manual 5.1.4、 Setting the gear knife position, keep it at the end of film about 2-4mm； 5.1.5、 Setting parameter of paper length ,speed,paper distance according the paper size; 5.2、Install film 5.2.1、 Install glued film to guide the paper。 open the safety cover， take down the working table， take a piece paper which same width of glued film, as guide and pass the front and back rolls，see pic.2...

  • Page 14: 6、 Adjustment Skill Of Auto Slitting

    - 13 - F350/F650 Roll Laminator Manual “reverse key”，Take out the involved printed matter or glued film from front ; 5.4.2、 Put the up roller to highest position，take away the safety cover and working table; 5.4.3、 Setting the temp. 80－90℃；...
  • Page 15 - 14 - F350/F650 Roll Laminator Manual Out feed roller pull roller Heating roller paper Normal slit at between “ slit Abnormal slit between “heating Anti-curing plate roller”and“pull roller” roller”and“pull roller” Pic 4 Pic 5 6.6 、 Experience ： 6.6.1、The thinner film be slit easily, the thicker film be slit not so easily. The best thickness is 18-25 mi BOPP film;...

  • Page 16: 8、Daily Maintenance

    - 15 - F350/F650 Roll Laminator Manual 7、Laminating Technology and skills To do the perfect laminating image，there are some important characters : temperature ,tension regulate and detection time of glued film on heating rolls. So，see the printed matte detail, choose the suitable film, temperature ,speed and tension。In general, More thickness film or printed matte, we need more slow speed...

  • Page 17: 9、 Self Checking

    - 16 - F350/F650 Roll Laminator Manual 9、Self -checking Press on“E”key and turn on power to enter the checking situation..Checking the following in turn operating checking content judgment method solution LCD appear ”0” for If safety cover sensor “0” ,means...

  • Page 18: 10、Troubles And Troubleshooting

    - 17 - F350/F650 Roll Laminator Manual 10、Troubles and Troubleshooting troubles trouble reason solution safety cover error Check the safety cover Cover up the safety cover Up temp. sensor Check up rolls temperature 1、check up temp. sensor wire is well or not。...
  • Page 19 - 18 - F350/F650 Roll Laminator Manual 11.2 F350D、F350E、F650E Electrical diagram...
  • Page 20 - 19 - F350/F650 Roll Laminator Manual...
