  • Page 1 User Manual Auto Laser Bird Repeller BZAL-500...
  • Page 2 Read all operation and safety information prior to use. NEVER look into laser or at bright reflections. NEVER aim the laser of BZAL-500 or the reflection at an aircraft at any distance! Illumination of aircraft, vehicles, etc. it is DANGEROUS! Do not do it.

  • Page 3: Product Description

    1.Product Description The Birdzout Auto Laser is developed as a safe, silent and effective tool for bird control. It is designed to deter birds in orchards, vineyards, crops, rooftops, large buildings and warehouses.

  • Page 4: Hardware Feature

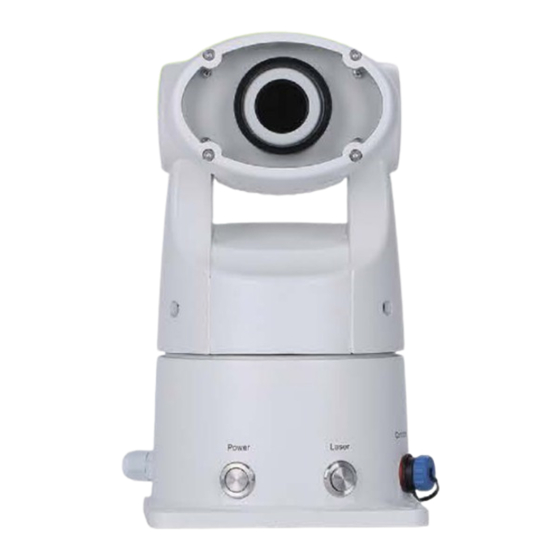

    2.Hardware Feature The Birdzout Auto Laser consists of four parts: 1. Power adapter: provide 12V DC power supply. 2. Laser and Pan/Tilt device: Laser and positioning. Controller: Program the Birdzout Auto Laser. Junction Box: E-stop and remote access to the laser.
  • Page 5 bi rdz � Numeric Key Joystick Preset Key Run Key Scan Key Function Key of the Controller: Joystick Steer the laser beam to the desired position. Preset Preset laser positi o n and save the position to the Pan/TIit. Once pushed, laser beam will sweep back and forth. Scan Speed Used to change the running speed.
  • Page 6 Junction Box: Emergency Stop, E-stop Switch turn of f power supply of Laser. T1 Socket Connect to Birdzout Auto Laser. Connect to controller to remote T2 Socket. program the Birdzout Auto Laser P1J Connector Connect to power adapter, DC12V. P1J Connector T1 Socket �...

  • Page 7: Technical Specification

    Power Operating Temperature -1 5"C-40"C Storage Temperature -20"C-50"C Protection IP6 5 Casing Aluminum Alloy Weight <3Kg Laser MODEL NO BZAL-500 Power 500 mw Laser Classification lllb Wave Length 532nm, Continuous Diameter @aperture 25mm Beam divergence 0.5mrad NOHD 296m 25.4W/ m' Exposure duration of 025 seoonds Operating Temperature -15"C to 40"C...

  • Page 8: Set Up And Operation

    The Birdzout Auto Laser should be mounted and programmed so that people have no chance to look into the laser beam. • The Protection of the Birdzout Auto Laser is I P65, it can be used both indoors or outdoors.
  • Page 9 Programming the Pan / Tilt device 1. Connect the plug of the controller to the communication port of th Birdzout Auto Laser or to the T2 connector of the junction box. Use the joystick of the controller to steer the laser to the desired position.
  • Page 10 Once the Pan / Tilt device finish seeking the "Origin" position, the Birdzout Auto Laser can be started to run the following three operation modes: 1. Manual mode: Use the joystick to move the laser beam.

  • Page 11: Maintenance

    5.MAINTENANCE DO NOT attempt to disassemble or clean the Birdzout Auto Laser internally. This will void the warranty. The external surfaces should be occasionally be wiped clean with cloths or a soft quality paper. Remove any external dirt or sand with a soft brush so as to avoid scratching the finish.
