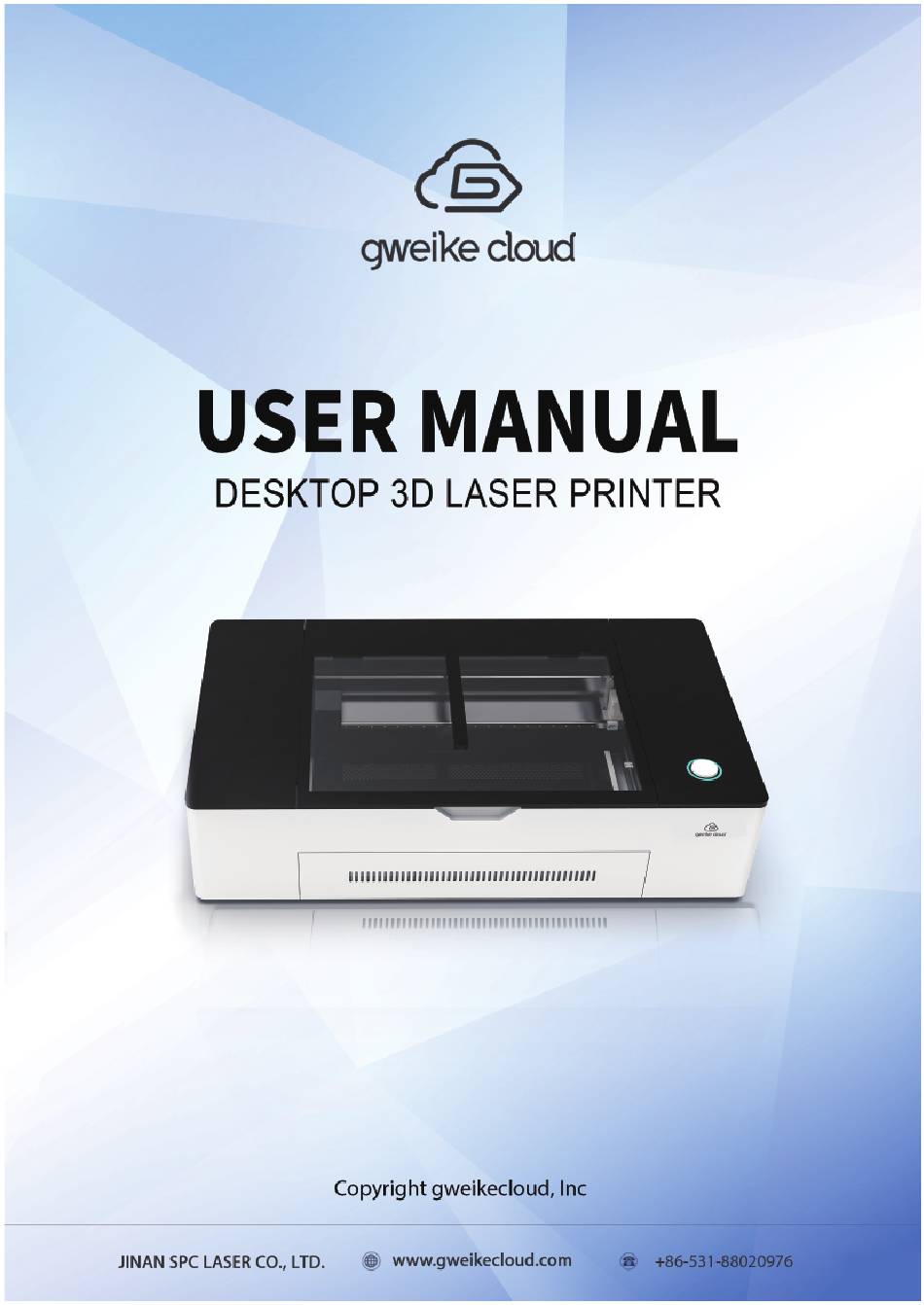

gweike cloud 16000 User Manual

Desktop 3d laser printer

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Table of Contents

Need help?

Do you have a question about the 16000 and is the answer not in the manual?

Questions and answers

Summary of Contents for gweike cloud 16000

Page 2 FOREWORD Thank you for choosing to use the Gweikecloud laser cutting machine produced Spc Laser Co ltd. We will provide you with comprehensive after-sales service and solutions. Please keep this manual and other accessories in good condition so that you can use this product better.
Page 3: Table Of Contents
CONTENTS Introduction Ⅰ. Safety 1.Laser Safety 2.Electrical Safety 3.Fire Safety Ⅱ. Certi cation/ Identi cation/Warning Labels Do and Don’t Getting Started Getting Acquainted Ⅲ. Unboxing & Setting Up 1.Unboxing 2.Machine installation Ⅳ. Operation 1.Login in 2.Turn on and connect to the WI-FI 3.How To Print Your First Work Ⅴ.
Page 4: Introduction
INTRODUCTION How to Use This Owner’s Manual T hank you for purchasing an GweikeCloud Laser system. Your GweikeCloud system has been designed to be easy to operate, but you will utilize it to its fullest potential by taking some time to read this owner’s manual prior to use. You will be ready to use the GweikeCloud Laser system as soon as you read the first few sections.
Page 5: Laser Safety
DO NOT disassemble the machine or remove any of its protective covers while the unit is plugged in. DO NOT attempt to defeat the door interlocks. DO NOT view directly into the beam of the Laser Diode Pointer (Red Dot Pointer). DO NOT operate the Laser Diode Pointer (Red Dot Pointer) without the machine’s focus lens in place.
Page 6: Fire Safety
Safety Features and Regulatory Compliance Gweikecloud has incorporated specific safety features into the Model 16000 Laser System in order to meet the requirements of 21 CFR 1040 and the International Standard IEC 60825-1.
Page 7 2.Certi cation/Identi cation Plate: This label is located on the rear of the machine’s cabinet. Defeatably-interlocked Protective Housing Safety Labels: There is one label on each of the machine’s cabinet rear doors; one on the front Door, one on the top door.one on the left Door and one on the right door.
Page 8 Aperture Safety Label: This label is located above the aperture, inside the cabinet, where laser beams enter the machine’s engraving Area, one on the left cabinet door. Non-interlocked Protective Housing Label:labels located on on the the right of the top cabinet door This label is located on the place to open the door Power Labels: The appropriate label for the...
Page 9: Do And Don't
Aperture Safety Label: This label is located above the aperture, inside the cabinet, where laser beams enter the machine’s engraving Area, one on the left cabinet door. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
Page 10 properly installed vent is the only way to ensure that problems do not occur. 2、Do Not Operate Machine While Unattended: Never operate your machine without someone watching the system. There is a significant risk of fire if the machine is set improperly, or if the machine should experience a mechanical or electrical failure while operating.
Page 11: Getting Started
Getting Started Follow these steps to set up your Laser system: 1. Unpack the laser system. 2. Choose where to locate the system. 3. Connect the exhaust system to your laser. 4. Connect the electrical power. 5. Register your system at www.gweikecloud.com Getting Acquainted Here’s a quick tour of parts you’ll need to know:...
Page 12: Ⅲ. Unboxing & Setting Up
Thank you for your patience. Now, it’s time to get lasering!Let’s get started, shall we? Laser Printer & Accessory Pack You will receive two packages. Package 1 includes GWEIKE Cloud laser printer, material package and accessories. Package 2 includes air filter. Gweike Cloud...
Page 13: Unboxing
Package 1 Package 2 1.Unboxing (1).Vsing scissors to cut the packing bell and remove the carton coven.
Page 14 (2).Take out the wrapped "honeycomb board"and the sponge on the top of the box. (3).Choose a table with a hard, flat and stable surface. If the desktop is unstable, uneven or too small, it may cause deviations of printing accuracy and may even damage the laser printer.
Page 15 (4).Take the 3D laser printer out of the wooden box. Remove the orange belt and the plastic bay belt . Place it on the prepared desktop.Open the cover of the machine and take out the accessories inside the machine. (5).Unpacking the filter：Use a knife to cut the tape of the filter carton, take out the filter and material package, and remove the upper plastic bag.
Page 16: Machine Installation
2.Machine installation (1).Pull out the waste scrap tray, put the honeycomb board into the bottom of the laser printer, and then reinstall the waste scrap tray.
Page 17 Don’t put in honey comb plate from top side. (2). Connect the air pump inside the filter,Connect one end of the black air pipe to the second small hole at the bottom right of the back of the laser printer; the other end to the second small hole of the filter.
Page 18 (4).Connection lower port and air hose pipe:Connect the lower port and wind pipe,the other end leads to the outside. (5) . Connect the upper exhaust port and wind pipe,use a screwwdriver to fix the clamp tightly;Be careful, the clamp is sharp.Connect the other end the wind pipe to the filter,fix the clamp tightly.
Page 19: Ⅳ. Operation
(6).Another way to connect the wind pipe: one end connect the machine, the other end through out the window directly.Power-on .Plug the power cable into the power switch behind the laser printer. Ⅳ. Operation 1. Login in (1).Please use a computer or tablet PC to visit www.gweikecloud.com, We recommend using Google Chrome.
Page 20 (2).Click "Cloud" in the website (refer to Google Chrome) (3).Click the "Creat one now". Register an operating account on the cloud laser website. Note: If account already registered when make payment, please use it and please don't register again.
Page 22 (4).Take a picture of the nameplate on the back of the machine and send the picture of the nameplate to the salesperson. Due to the time difference, we will contact you as soon as possible to bind your operating account and machine. ID is the unique identification code of machine.
Page 23 (4)Enter your account and password. (5).Upload files Enter the customer center, upload the file (supported file formats support JPG, PNG, SVG).Remarks: Click the Device to switch Device. Move the mouse cursor to a file, click Print to jump to the operation page.
Page 24: Turn On And Connect To The Wi-Fi
2.Turn on and connect to the WI-FI (1).Firstly,Turn on the power switch button on the back of the laser printer. (Turn on is "I", Turn off is "O") Confirm the Wifi environment: ①Machine and WiFi, distance must be within 3 meters, and no wall between them.If not,please add WiFi signal booster.
Page 25 (3).After jumping to the wifi configuration page, press and hold the button on the device for 5 seconds until the button color turns purple, and then release the button. The color of the button will change from purple to red, back and forth. (4).Please turn on the wifi of your laptop or tablet, search for the device WIFI.
Page 26 (5).After the device's WIFI connection is successful, click the button "WIFI configuration" to jump to the WIFI connection page. Qingdao server Chinese mainland Frankfurt server continental Europe Australia server Oceania US server (except China, Europe and Oceania) (6).Enter the account password of the home wifi (please ensure that the account password is correct, the network needs to be above 100M, and the network speed is better), Do not connect to the WiFi of the machine.
Page 27 When the the button on the device light off and the device status on the operation page displays "Ready" or "reset", it proves that the wifi connection is successful. volume_up. (Note: ①If the WIFI connection fails, please repeat the operation steps ①-⑥. ②If the WIFI connection page shows connection failed, please repeat the operation steps ④-⑥...
Page 28: How To Print Your First Work
3.How To Print Your First Work (1).Open the cover of your gweikecloud, choose a piece of material with an area less than 547mm*305m and place it on the honeycomb panel of the machine. Make sure that the QR code is clearly visible on the material and close the cover completely. (2).After closing the machine cover, the machine resets, the camera automatically takes pictures and uploads the machine processing table image.
Page 29 Remarks: gweikecloud official materials, with barcode, the device can automatically Remarks: gweikecloud official materials, with barcode, the device can automatically identify, automatically select parameters, no need to manually set. Non-gweikekecloud identify, automatically select parameters, no need to manually set. Non-gweikekecloud material Please manually click the "Select"...
Page 30 (4)．Select the part that needs to be processed, Shift+left mouse button, and drag the (4)．Select the part that needs to be processed, Shift+left mouse button, and drag the fixed point to zoom the selected file proportionally; move the mouse to the canvas range, fixed point to zoom the selected file proportionally;...
Page 31 (7).In the operation interface of your computer, you will see the processing time. (8).After the processing is over, take out the processed finished product. Note: During the machining process, someone must observe the machining situation to avoid machining errors. (9).Take out the cut parts from the machine and splice them together. Congratulations, you have completed your first work.
Page 32 figure 3 (10).Suspend processing If you need to suspend processing during processing, you only need to press the equipment button, and the laser printer will suspend processing. (If you open the top cover of the laser printer during processing, the LED lights in the laser printer will dim, and the laser printer will also suspend processing.
Page 33: Ⅴ. Other Functions Introduction
Ⅴ. Other Functions Introduction 1.Function of extraction ①.Open the cover of the machine, put the hand-drawn drawings or other objects with patterns on the surface of the machine table, and close the cover. ②.After the machine cover is closed, the machine will reset, then the camera will automatically take pictures, and wait for the image to refresh to the operation interface or click Preview.
Page 34: The Function Of Combining And Breaking Up(The Function Of Grouping And Ungrouping)
2.The function of Combining and Breaking up (The function of Grouping and Ungrouping) When two or more graphics need to set the same processing parameters, you can combine them into one graphics through the "composite" function. As shown in Figure 1, box select two or more graphics, right-click and select "Group": If you need to set the processing parameters separately, you can use the break function to...
Page 35: The Function Of Layer
3. The function of Layer In order to achieve a good processing effect, you can change the processing order by adjusting the layer placement order of multiple graphics. As shown in Figure 4, right-click on a graph: (figure 4) 4. Add option When two or more graphics need to be set with the same processing parameters (cutting or engraving),the graphics are complex and cannot...
Page 36: D Engraving
forward one layer.Click "Send Backward" to move the selected layer back one layer .Click "Send to Back" to move the selected layer to the end. The order of processing is from back to front, and the later layers will be processed first.
Page 37 Click The material selection list pops up.As shown in Figure 10: (figure 10) Click to pop up custom processing parameters.As shown in Figure 11: (figure 11) is mouse selection tool is the pencil tool, which can be manually drawn on the picture. As shown in Figure 12: (figure 12) is a straight line tool, you can draw a straight line...
Page 38 is pen tool, you can draw a curve on the picture.As shown in Figure 15, press "esc" to end the drawing: (figure 15) is hape tool, you can draw rectangles and ellipses on the picture. is revocation tool is edo tools; is alignment tool.Popped up, the order is left and right center, top and bottom center, right alignment, top alignment, left alignment,...
Page 39: Processing Parameters
is a printing tool; is wifi tool, click to enter the wifi setting interface.As shown in Figure 16. (figure 16) language selection tool, you can choose the interface language to be Chinese or English. 8. Processing Parameters Minimum Maximum Material thickness Engraving speed Name engraving power...
Page 40: Note Of Button Light Color
Cloud cutting Engraving density Cutting power (%) Focus height Name speed (%) (DPI) (mm) Basswood Acrylic Cardboard 9. Note of button light color In idle state, button (colorless) Setting up WiFi (purple to red gradient) Reset (blue-green gradient) During processing (yellow is always bright) Receiving upgrade files and processing files (orange) After receiving processing documents (green) When the alarm occurs (red is always bright)
Page 41: Ⅵ. Maintenance & Service
Ⅵ. Maintenance & Service After using the laser printer, in order to prolong the service life of the laser printer and reduce the occurrence of failures, a series of cleaning tasks are required for the laser printer. Note: Before cleaning, please disconnect the power and reset the printer head. 1.
Page 42: Clean The Camera
4. Clean The Camera Use a cotton swab dipped in alcohol to wipe the wide-angle camera on the top cover of the laser printer.If there are spots in the middle of the mirror, it cannot be wiped clean , you need to replace it. Please take photos and contact us; 5.
Page 43: Ⅶ.problem And Resolve
Ⅶ.Problem And Resolve 1.How to adjust the focus? 1) The system automatically defaults the cutting material thickness to 3mm. If the cutting material thickness is 3mm, there is no need to adjust the focus. 2) If the cutting material is of other thickness (within 0-17mm), place the material on the honeycomb panel, enter the website operation page, and click the blank area above the Select SVG on the left side of the page (as shown in the green box in Figure 1), in Focus Height Enter the parameters and click Confirm to complete (refer to Table 1 for focal...
Page 44 Cutting material thickness Focus Height （mm） 17mm 16mm 15mm 14mm 13mm 12mm 11mm 10mm 10mm 11mm 12mm 13mm 14mm 15mm 16mm 17mm...
Page 45 2.Flame problem When the machine cutting the material, there is a flame problem(as shown in Figure 2), please follow the steps below to troubleshoot; Figure 2 1) Check whether the machine is connected to the air pump, whether the air pump wire and the wind pipe are connected in place, as shown in Figure 3.
Page 46 3） After checking the air pump and knob, power on the machine, turn on the machine switch, place a thin paper or string under the laser nozzle to test whether there is gas blowing, as shown in Figure 5, if there is gas blowing, there will be no fire.
Page 47 2）Check whether the drawer protection limit is working properly. When the drawer is pulled out, the protection limit red light goes out, the LED light dims, when the drawer is closed, the protection limit red light turns on, and the LED light turns on, it is normal operation (Figure 9) Figure 9 4.Wifi Can't Connect...
Page 48 5.The Color Of The Indicator Light When the machine is turned on but not working, the button light is off, and the color is not displayed ,which is normal. 2) Connect the WIFI, when the machine is transmitting signals, the button light will change from purple to red gradient;...
Page 49 2) Spread a 3mm thick material board on the work table (as shown in Figure 13), close the cover, wait for the button light to automatically turn on green, and then click the button for processing. Note: The plate cannot be cocked or bent Figure 13 7.If the cutting material is larger than the machine format, how to realize the front and back feeding...
Page 50 2) Place the larger material on the honeycomb panel of the machine. Through the through hole at the back of the machine, the material is extended to the outside of the machine to realize the front and back feeding. Figure15 Figure 16 8.Handling method when error is reported on the web page The webpage displays "Hard limit fault", it is a hard limit fault...
Page 51 Reason: The position of the processed graphics is beyond the canvas X coordinate system (too left or too right) for cutting Solution: After clicking "cancel" on the webpage, move the graph to the canvas then print. 3) The webpage displays "Y-axis border out of bounds"(Figure 18) Figure18 Reason: The position of the processed graphics exceeds the Y coordinate system of the canvas (too high or too low) for cutting...
Page 52 Reason: The position of the processed graphics exceeds the XY coordinate system of the canvas for cutting Solution: After clicking "cancel" on the webpage, move the graph inside the canvas then print. 5) The webpage displays "Y-axis buffer distance is insufficient" (Figure 20) Figure 20 Reason: generated during scanning, because the processing graphics position is beyond the canvas Y coor- dinate system or too close to the edge of the canvas (too high or too low) for scanning...
Page 53 Reason: generated during scanning, because the processing graphics position is beyond the canvas XY coordinate system or too close to the edge of the canvas for scan- ning. Solution: After clicking "cancel" on the webpage, move the graphic to be scanned to a position 100px away from the edge of the canvas within the range of the canvas 7) The web page displays "Photo failed, abnormal signal", the reason and solution: ①The network environment is abnormal when sending photos, it is recommended to...
Page 54 9）The web page displays "Communication between Arm and control board is abnor- mal", Reason: There is a problem with the hardware Solution: Remove the left control panel of the machine and return it to the manufacturer for repair (Figure 24) Figure24 10) The webpage displays "Replace the laser tube"...
Page 55 2) Evacuate the water in the water tank (Figure 26) Figure26 3) Remove the screws at the low voltage and high voltage (4) end, remove the water pipe (2), unscrew the pipe clamp (3), and take out the old laser tube (see Figure 27) Figure 27...
Page 56 4) Place a new laser tube, fix the tube clamp (3), install the water tube (2), screw on the high-voltage and low-voltage wires, and the water tank is dedicated for lasers with a capacity of 1300cc or more.
