ASIA

F O R M E R

OPERATING MANUAL & PARTS LIST

AF-300

ASIA TECHNOLOGY CO., LTD

Table of Contents

Need help?

Do you have a question about the AF-300 and is the answer not in the manual?

Questions and answers

Summary of Contents for ASIA TECHNOLOGY AF-300

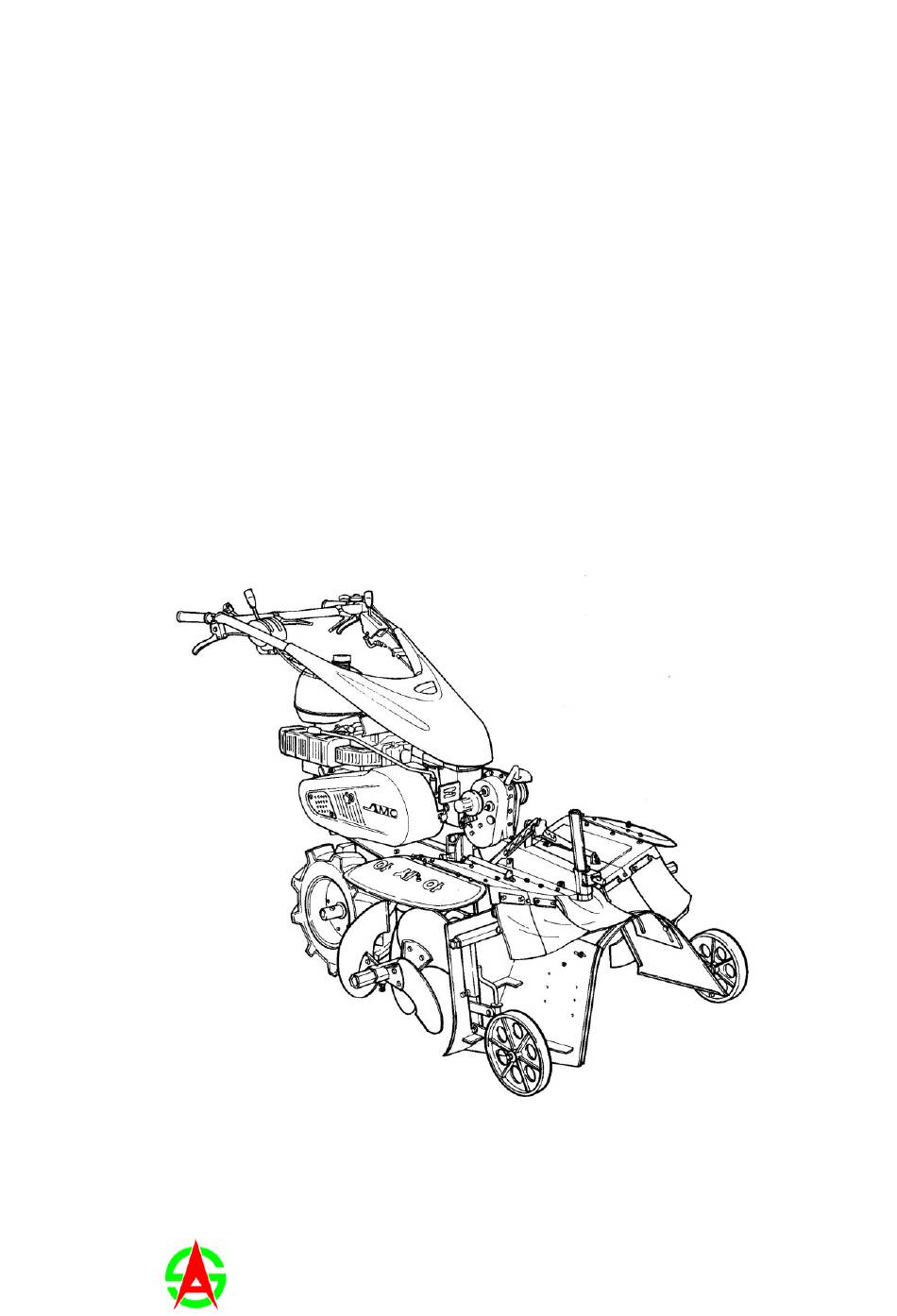

Page 1 ASIA F O R M E R OPERATING MANUAL & PARTS LIST AF-300 ASIA TECHNOLOGY CO., LTD...
Page 3: Table Of Contents
4. Specifications ---------------------------------------------------------------------------------------- 8 5. Attaching the Implement -------------------------------------------------------------------------- 9 6. How to Operate the Ridge Former ------------------------------------------------------- 13 7. Checking Before Operation and About Safe Operation --------------------------------- 17 8. Maintenance and Preservation of the Machine -------------------------------------------- 19 9. Troubleshooting ----------------------------------------------------------------------------------- 20 AF-300...
Page 5: Safety Issues
■ This indicates the potential signal for a serious injury if not observed. Caution ■ This indicates the dangerous situation which could lead to a injury or cause damage of the machine, *Important: ■ This booklet illustrates the important directions about usage of the machine: maintenance, inspection, and storage. AF-300...
Page 6 Please wear helmet, safety glass, glove, and safety boots if the working condition is rough. Caution In case of lending the machine, be sure to explain operational and safety issues. AF-300...
Page 7 For Safety, Please Read the Instruction Manual Danger! Do not reconstruct the machine. Reconstructing machine may cause serious Accident, or it may lead to malfunctioning of the machine. AF-300...
Page 8: Name Of Each Part Of The Machine
2. Name of Each Part of the Machine AF-300...
Page 9: Features
7) This former makes the ridge well only by one operation so that no more finishing touch is required for it. 8) This former can make various shapes of ridges by manipulating relevant sections simple. AF-300...
Page 10: Specifications
4. Specification Form AF-300 Length (mm) Width (mm) 1000 Rotary Attached Height (mm) Weight (kg) Operating Working Gear Backward 1 or 2 Stage Operating Method Travel for Backward Round Ridge(m² / day) 8250 Operating Efficiency Square Ridge(m² / day) 9900...
Page 11: Attaching The Implement
5. Attaching the Implement 1. Confirm the position of the connecting chain case as Fig. 1. [Fig. 1] ※ Setting the “Thin” to see correctly, and the rotary shift lever to the forward 1st step. 2. Detaching for Tail Wheel [Fig. 2] AF-300...
Page 12 AF-300...
Page 13 So, please be much cautious not to assemble them so wrongly. 4. Assembling of Forming Plates [Fig. 4] AF-300...
Page 14 2) If the steel wheels for tracking are assembled into the shaft in the inner side of the pneumatic tires respectively and in the slippery soil, the work can be done more efficiency. AF-300...
Page 15: How To Operate The Ridge Former
Then, as keeping the rotor assembly ⑥(RIGHT, SMALL) and ④(LEFT, SMALL) at an adequate interval respectively in the inner side of the rotor assembly ⑦(RIGHT, LARGE) and ⑤ (LEFT, LARGE), fasten the right and left bolts for fixing the forming plates completely. AF-300...
Page 16 Then, assemble the forming plate for the square ridge in place of the width-adjustable plate. Please keep the detached plate well in a safe place. AF-300...
Page 17 600mm wide. And then, use the forms. 7) For adjusting the hardening condition and the height of the ridge, fix the height- adjustable wheel at a proper position by adjusting the height-adjustable wheel upward or downward. And then, use the former. AF-300...
Page 18 (Only Steel Wheels for Ditching to be used) [Fig. 7] AF-300...
Page 19: Checking Before Operation And About Safe Operation
If the depth and humidity of the cultivating is not adequate, it will cause the ridge not to be formed well. AF-300...
Page 20 5) When turning the former, if the operator gets the driving gear to be at the forward direction and the first step speed position and he is pushing the handle and simultaneously turning it, he can turn it with much ease. AF-300...
Page 21: Maintenance And Preservation Of The Machine
3. Storing 1) Please store the machine where there is good ventilation and away from sun / rain. 2) When storing the machine for long period of time, please make sure to drain fuel from all parts. AF-300...
Page 22: Troubleshooting
Operating the Operating the backward Can not backward 2nd step. 1st step. working on Setting the wheel base the slope Adjust the wheel same as ridge width, ground well. base badly. and operating the main wheel put in furrows. AF-300...
Page 23 Ridge Square 50~60cm shape is not Cultivating depth is Same as round ridge Type 70cm good not correct. type. enough. AF-300...
Page 25 THE ASIA PARTS LIST Never use other than GENUINE ASIA PARTS they are standardized, tested and proved. Using genuine parts saves your time and money above all. Ensures that your machine will always be ready for immediate work. AF-300...
Page 26 AF-300...
Page 27 CONTENTS Group Description Page G010A Former Group G020A Former Rotor Group AF-300...
Page 28 G010A AF-300...
Page 29 ASIA PARTS LIST G010A Former Group 2011.11.01 AF-300 Q’ty Parts No. Size Parts Name Remarks AF-1001 T-Support AB111-10030 Former Ass’y (L) AB111-10130 Former Ass’y (R) AF-1017 Pipe AF-1018 Adjusting Plate AB111-10190 Tail Wheel Ass’y (L) AB111-10610 Support (L) AB111-10200 Wheel Support...
Page 30 G010A AF-300...
Page 31 ASIA PARTS LIST G010A Former Group 2011.11.01 AF-300 Q’ty Parts No. Size Parts Name Remarks A201-12Z Plain Washer A5511-50330 A1050-51260 M12xP1.25x60 Bolt A200-12Z Plain Washer A204-12Z Spring Washer A164-12Z M12xP1.25 A186-9 Snap Ring AF-1024 Bolt A164-10Z M10xP1.25 AF-1025 Former (L)
Page 32 G020A AF-300...
Page 33 ASIA PARTS LIST G020A Former Rotor Group 2011.11.01 AF-300 Q’ty Parts No. Size Parts Name Remarks AF-2001B Shaft Rotor DT-0708 Lock Bolt A163-10Z M10xP1.5 5 ~ 11 AB110-20041 Rotor Shaft (A) Ass’y (L) AF-2005A Rotor Shaft Ass’y A (L) AF-1024 M10x30xP1.5...
Page 34 G020A AF-300...
Page 35 ASIA PARTS LIST G020A Former Rotor Group 2011.11.01 AF-300 Q’ty Parts No. Size Parts Name Remarks A164-10Z M10xP1.5 AF-2020 Rotor Blade B (R) A100-8x20Z M8xP1.25x20 Bolt A204-8Z Spring Washer A159-8Z M8xP1.25 Nut (7T) 37 ~ 43 AB110-20201 Rotor Assembly(Left, Small)
Page 38 ASIA FORMER AF-300 ASIA TECHNOLOGY CO., LTD. Mailing Add. : R.M.701, SHIN TAE YANG BLDG. 736-8, BANPO-DONG, SEOCHO-GU, SEOUL, KOREA 137-810 http://www.asiakor.com TEL : +82 2-547-8098 FAX : +82 2-547-0989 NO.1111...
