Summary of Contents for Bench Factory BC1630

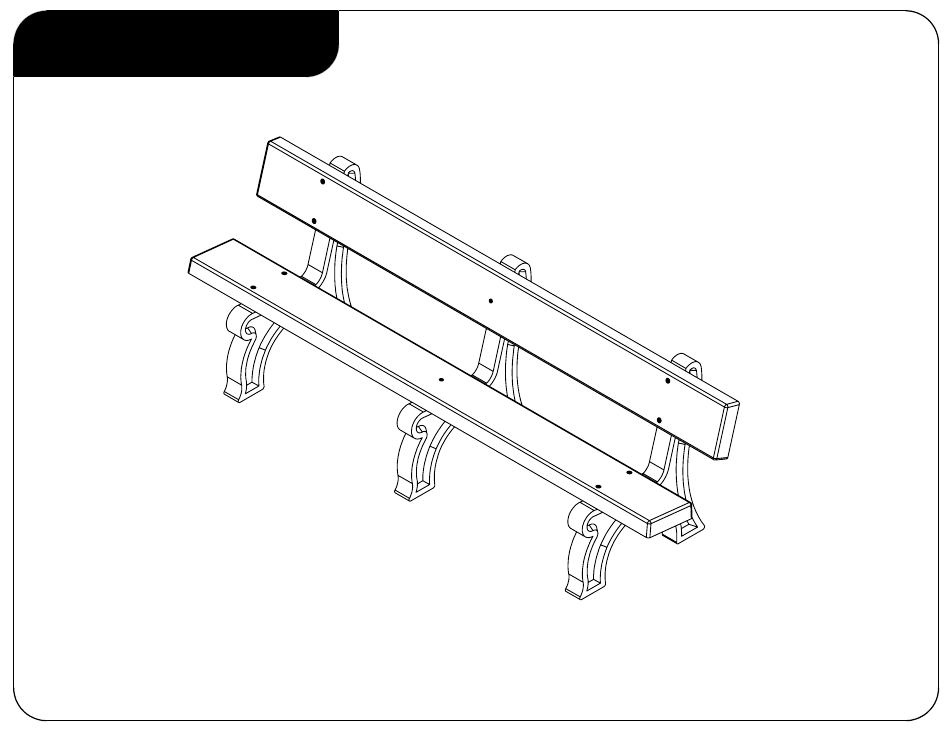

- Page 1 BENCH INSTRUCTIONS REV# 1 BC1630...
- Page 2 BENCH INSTRUCTIONS BC1630 Plastic boards Seat support brace Plastic bench ends Round head lag screw Back support brace #12 X 1-1/2" Flat head screw #12 X 3/4" Pan head screw REQUIRED TOOLS NOTE: IT IS IMPORTANT TO KEEP ALL BOLTS FINGER TIGHT...
- Page 3 BENCH INSTRUCTIONS BC1630 Step 2 STEP 1 • Place a plastic board (C) over the plastic end • Stand the plastic bench ends (A) upright supports (A) • Align the holes of the plastic board (C) with the holes •...
- Page 4 BENCH INSTRUCTIONS Step 4 BC1630 • Hold the plastic board (C) against the back rest on the plastic bench ends (A) Step 3 • Align the predrilled holes in the plastic bench ends (A) with the holes in the plastic board (C) •...
- Page 5 BENCH INSTRUCTIONS BC1630 Step 5 • Locate the 4 holes in the back support brace (E) • Drill an 1/8" hole in the cross section (X) of the plastic board (C) at each hole location on the back support brace •...
- Page 6 BENCH SPECIFICATIONS BC1630 3.00 96.19 14.82 11.34 32.63 32.63 10.59 25.90 CONSTRUCTION MATERIALS: Plastic HARDWARE: Stainless Steel...
