Bluetooth Module Evaluation Kit User Guide
ABBTM-NVC-EVK
HARDWARE DESCRIPTION:
ABBTM-NVC-EVK Bluetooth module evaluation kit is designed to facilitate engineering evaluation of
Abracon's ABBTM-NVC-MDCSxx Bluetooth modules. The kit includes one main board, one Bluetooth module
at the customer's choice and the corresponding adaptor board.
Ordering Information:
Part Number
ABBTM-NVC-EVK-42A
ABBTM-NVC-EVK-56
ABBTM-NVC-EVK-71
ABBTM-NVC-MB-EVK
ABBTM-NVC-MDCS42A-CON
ABBTM-NVC-MDCS56-CON
ABBTM-NVC-MDCS71-CON
EVALUATION KIT MAIN BOARD:
The interfaces of the evaluation kit main board (ABBTM-NVC-BM-EVK) includes: DB9 RS232, USB UART
(please visit http://www.ftdichip.com/Drivers/VCP.htm for latest driver), 3.5mm jack audio input/output, several
buttons, LEDs.
In addition, mounting places are reserved on the main board for soldering the Apple authentication coprocessor
(2.0B or 2.0C). So it can also be used as a demo or test platform of Abracon's iAP over Bluetooth solutions.
The main board also contains SPK_OUT and MIC_IN jack. There's audio amplifier converting the differential
audio output from the Bluetooth module to single-ended, which can be output directly to a common 3.5mm
headphone. And with on board MIC bias circuits, a microphone can be inserted directly.
ABRACON IS
ABRACON IS
ISO 9001 / QS 9000
ISO 9001:2008
CERTIFIED
CERTIFIED
Description
Kit includes 1 main board;1 ABBTM-NVC-MDCS42A adaptor board with 1pc
ABBTM-NVC-MDCS42A mounted on the adaptor board; Mini B USB cable
Kit includes 1 main board;1 ABBTM-NVC-MDCS56 adaptor board with 1pc
ABBTM-NVC-MDCS56 mounted on the adaptor board; Mini B USB cable
Kit includes 1 main board;1 ABBTM-NVC-MDCS71 adaptor board with 1pc
ABBTM-NVC-MDCS71 mounted on the adaptor board; Mini B USB cable
Evaluation kit main board
ABBTM-NVC-MDCS42A adaptor board, BT module is mounted on board
ABBTM-NVC-MDCS56 adaptor board, BT module is mounted on board
ABBTM-NVC-MDCS71 adaptor board, BT module is mounted on board

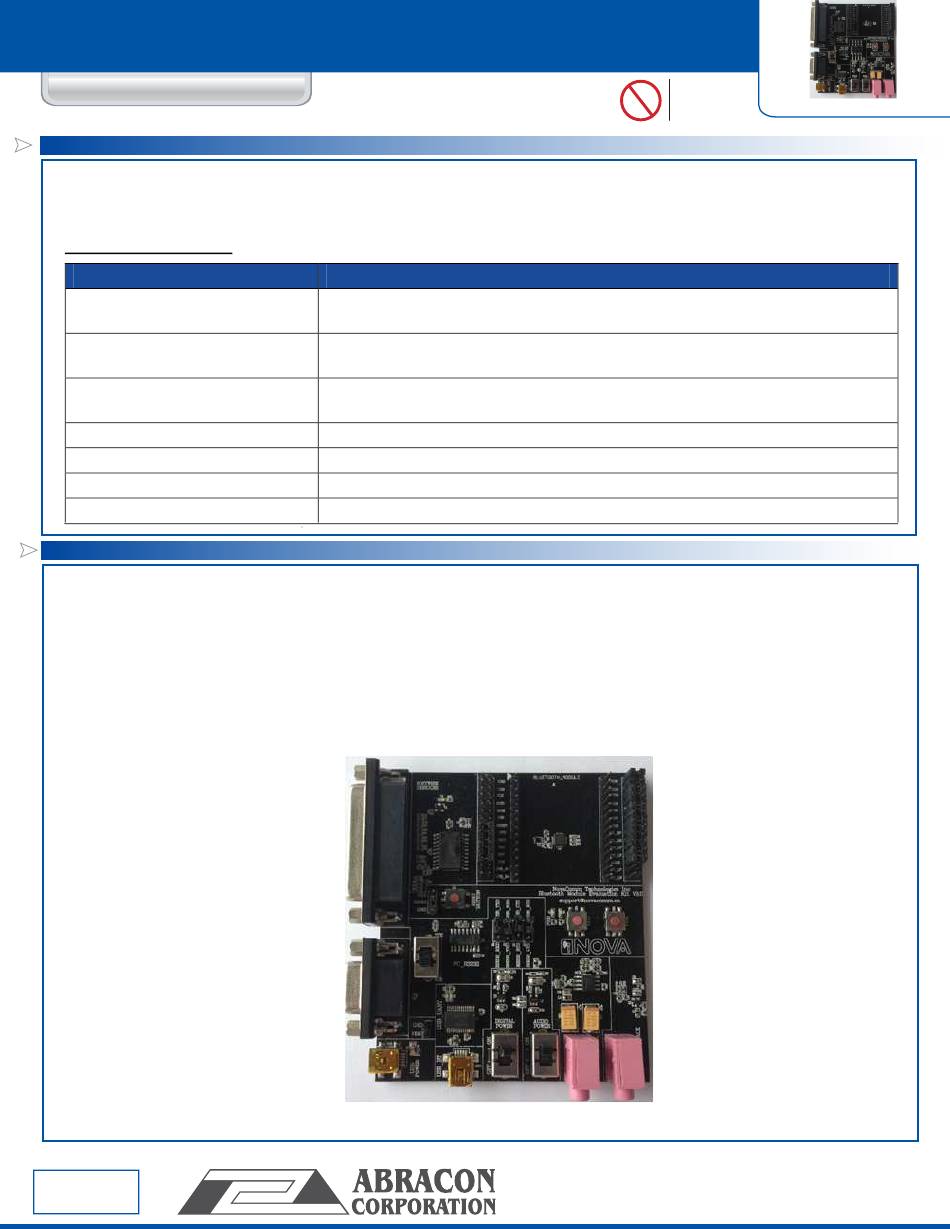

Figure 1: Evaluation Kit Main Board: ABBTM-NVC-MB-EVK
RoHS
Pb
Compliant
Visit www.abracon.com for Terms & Conditions of Sale
30332 Esperanza, Rancho Santa Margarita, California 92688
|
tel 949-546-8000
fax 949-546-8001
91cm x 106cm
Revised: 08.19.13
| www.abracon.com
Advertisement
Summary of Contents for ABRACON CORPORATION ABBTM-NVC-EVK
- Page 1 91cm x 106cm Compliant HARDWARE DESCRIPTION: ABBTM-NVC-EVK Bluetooth module evaluation kit is designed to facilitate engineering evaluation of Abracon’s ABBTM-NVC-MDCSxx Bluetooth modules. The kit includes one main board, one Bluetooth module at the customer’s choice and the corresponding adaptor board.
-
Page 2: Component Description
Bluetooth Module Evaluation Kit User Guide ABBTM-NVC-EVK RoHS 91cm x 106cm Compliant COMPONENT DESCRIPTION: Figure 2: Evaluation Kit Main Board Layou 91 cm 106 cm 1. USB power & virtual COM: Mini B socket to power the board. And if USB to COM chip (label by 4) is mounted, it also acts as a virtual COM port (USB to COM, a driver for Windows is needed). - Page 3 Bluetooth Module Evaluation Kit User Guide ABBTM-NVC-EVK RoHS 91cm x 106cm Compliant FUNCTIONAL DESCRIPTION – SWITCH AND JUMPER SETTING Power Switch (As shown in the red line to toggle switch) Figure 3: Power switch DB9 or USB-COM selection (jumper connections as shown in red line connect to DB9)
- Page 4 Bluetooth Module Evaluation Kit User Guide ABBTM-NVC-EVK RoHS 91cm x 106cm Compliant When use DB9, Switch to "DTE" if the EVK acts as a DTE Figure 7 : RS232 toggle switch (DCE) Jumper for feeding a high level to the daughter board’s RESET when push RESET button.
- Page 5 Bluetooth Module Evaluation Kit User Guide ABBTM-NVC-EVK RoHS 91cm x 106cm Compliant SCHEMATIC OF THE EVALUATION KIT MAIN BOARD Figure 10: General schematic diagram Figure 11: Module SPI and UART Schematic diagram Revised: 08.19.13 Visit www.abracon.com for Terms & Conditions of Sale...
- Page 6 Bluetooth Module Evaluation Kit User Guide ABBTM-NVC-EVK RoHS 91cm x 106cm Compliant Figure 12 : Audio input and output Schematic diagram Revised: 08.19.13 Visit www.abracon.com for Terms & Conditions of Sale ABRACON IS ABRACON IS 30332 Esperanza, Rancho Santa Margarita, California 92688...
- Page 7 Bluetooth Module Evaluation Kit User Guide ABBTM-NVC-EVK RoHS 91cm x 106cm Compliant Figure 13: Apple authentication, button and LED Apple authentication TOP SILK-SCREEN FIGURE Figure 14: Top silk-screen Revised: 08.19.13 Visit www.abracon.com for Terms & Conditions of Sale ABRACON IS...
- Page 8 Bluetooth Module Evaluation Kit User Guide ABBTM-NVC-EVK RoHS 91cm x 106cm Compliant ADAPTOR BOARDS Different adaptor boards are used to mate with the evaluation kit main board. Figure 15: ABBTM-NVC-MDCS42A-CON (47.5 x 33mm) Figure 16: ABBTM-NVC-MDCS71-CON (41 x 33mm) Figure 17: ABBTM-NVC-MDCS56-CON (49 x 33.5mm) Revised: 08.19.13...
-
Page 9: Serial Interface Communication
Bluetooth Module Evaluation Kit User Guide ABBTM-NVC-EVK RoHS 91cm x 106cm Compliant SERIAL INTERFACE COMMUNICATION In this demo we use a tool “AccessPort” (Freeware, can be downloaded here http://www.sudt.com/en/ap/index.html) to access the COM ports in Windows. Customers can use other tools (such as HypterTerminal) in a similar way. - Page 10 Note: <CR><FL> is the terminator of command line ATTENTION: Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where component failure could result in loss of life and/or property.
