Summary of Contents for AKEYDIY TL3838-1

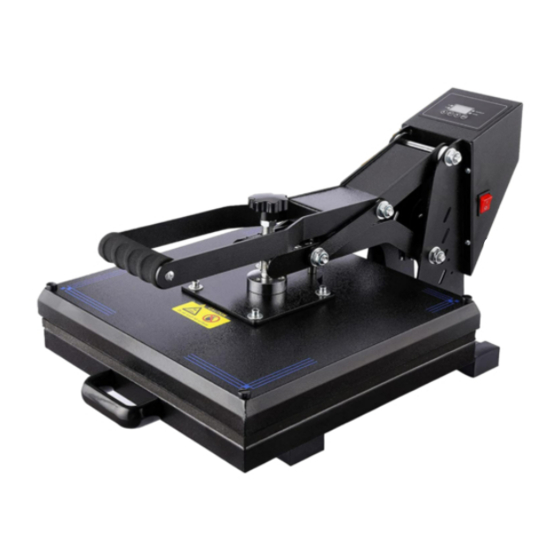

- Page 1 AKEYDIY User Manual Heat Press Machine...
-
Page 3: Table Of Contents
Catalog HEAT PRESS MACHINE INTRODUCTION PRODUCT STRUCTURE SPECIFIC SETTINGS TWO TIPS FOR T-SHIRTS DEGREES CELSIUS OR DEGREES FAHRENHEIT MAINTENANCE NOTE TROUBLESHOOTING GUARANTEE... -
Page 5: Heat Press Machine
A heat press machine is using temperature and pressure with a certain amount of time to transfer designs onto items. The transfer is permanently embedded into the product. Thank you for choosing AKEYDIY Heat Press Machine. Please read this user manual carefully and keep it for future reference.If you need any assistance,... -
Page 6: Product Structure
PRODUCT STRUCTURE 1. Power Switch 4. Handle 2. Digital Controller 5. Heat Platen 3. Pressure Knob SPECIFIC SETTINGS Place the mat on the press bed. 。 。 - 02 -... -
Page 7: Two Tips For T-Shirts
If you're going to use the machine, please keep the handle lifted up and mat on the press bed first and follow the steps below: Step 1: Adjust pressure Turn the pressure adjustment knob to get the desired pressure. Pressure increase: clockwise rotation Pressure decrease: counterclockwise rotation It's better if you try a few times at first use. -
Page 8: Degrees Celsius Or Degrees Fahrenheit
TRANSFER PARAMETER (for reference) T-shirt (Non-cotton) T-shirt (PU flex film) Aluminum plate 392°F (200°C) 60s 338°F (170°C) 25s 338°F (170°C) 100s Mouse pad Pillow Cloth bag 365°F (185°C) 50s 392°F (200°C) 60s 356°F (180°C) 60s DEGREES CELSIUS OR DEGREES FAHRENHEIT °C: Degrees Celsius °... -
Page 9: Maintenance Note
Press the "SET" button for 5 seconds to enter the professional mode,Advanced parameter setting of temperature control table: Note： （Please do not change the default parameter settings without professional engineer support, You can contact the customer service for help first.） P-4:Temperature correction. P-5:Prevent temperature overshoot. P-6：Constant temperature setting (factory default constant temperature setting is 320°F (160°C). P-7:Set the relay bounce time. MAINTAIN NOTE 1. -
Page 10: Guarantee
You are so appreciated, if pictures or video clips are provided with your problems. Any message sent to AKEYDIY will get a reply within 24 hours. Email: akeydiy_support@yeah.net...
