Note: If you cannot understand these instructions or are concerned about safety of the installation
Contact a qualified contractor or contact AVFI at 1-877-834-3876.
Confirm all hardware is included before you begin assembly.
Not all hardware supplied will be used depending on the manufacturer of your display/s.
288 Don Hillock Drive
Toll Free: 1-877-834-3876

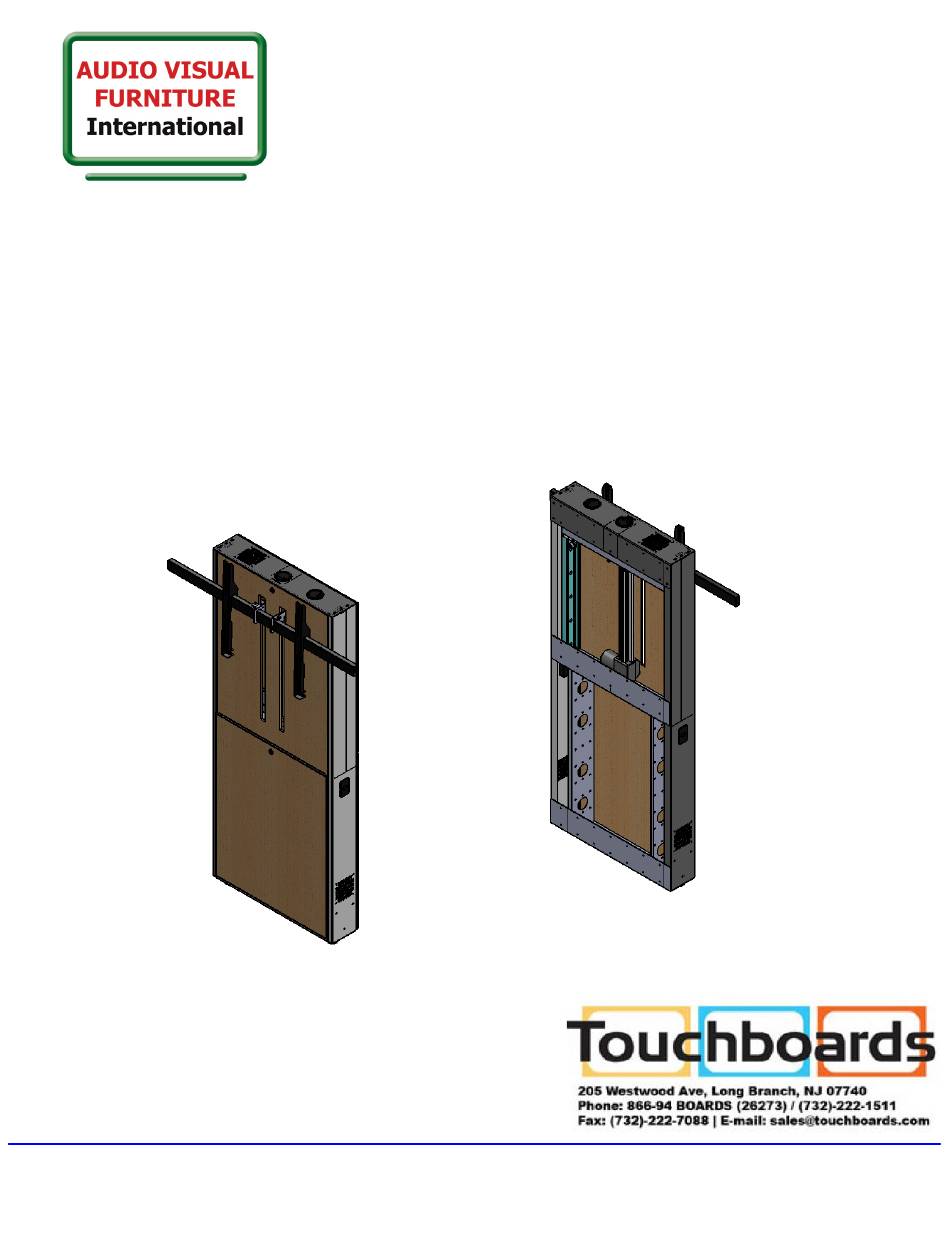

LFT-7000WM
Assembly and Setup Instructions
AUDIO VIDEO FURNITURE INTERNATIONAL
Aurora , Ontario L4G 0G9
Fax: 1-905-751-1488 Local:905-751-1459
Page 1
www.video-furn.com
of 8
Advertisement
Table of Contents
Summary of Contents for Audio Video Furniture International LFT-7000WM
- Page 1 Contact a qualified contractor or contact AVFI at 1-877-834-3876. Confirm all hardware is included before you begin assembly. Not all hardware supplied will be used depending on the manufacturer of your display/s. AUDIO VIDEO FURNITURE INTERNATIONAL 288 Don Hillock Drive Aurora , Ontario L4G 0G9 www.video-furn.com...
- Page 2 Page 2 of 8 SUPPLIED PARTS PM-Tube-XL LFT-7000 Assembled Unit SUPPLIED HARDWARE M8 HEX NUT Wall Mount Hardware Bag Hardware Self Adhesive clips on 2" Leveling remote Foot (1 pair) TOOLS REQUIRED: (not included) LEVEL 3/4" WRENCH STUD FINDER 1/2" WRENCH...
- Page 3 Page 3 of 8 STEP 1: (1) Stand the unit upright, lean the unit against the wall or have someone hold the unit securely (2) Use the keys provided to unlock top and bottom panels (3) Carefully remove each panel and place in safe location so they do not get damaged (4) Remove the remote and mounting hardware from inside the unit and place it with the panels...
- Page 4 STEP 2: CONCRETE (1) Positon the LFT-7000WM in its desire location (2) Using a marker or pen transfer hole locations from top and middle plates to the wall (NO LESS THEN 2 per plate) (3) Move the unit and drill holes using a 1/2" masonary bit to a depth of 1.5 inches...
- Page 5 Page 5 of 8 STEP 3: (1) Route the controller cable through the grommet and secure using the self adhesive clips provided (2) Secure and lock the top and bottom panels Self adhesive clip This configuration on the LFT-7000 is complete and ready to recieve the hardware.
- Page 6 Page 6 of 8 STEP 4: (1) Insert mounting bar through the lift bracket (2) centre the bar and secure with bolts M8 Socket head cap screw STEP 5: (1) before installing mounting brackets to your TV remove the slide lock by undoing the 3 bolts STEP 6: (1) Attatch Brackets to TV and secure tightly...
- Page 7 8 STEP 7: (1) With assistance lift the TV into position on the mounting bar (2) Centre and secure to the bar AUDIO VIDEO FURNITURE INTERNATIONAL 288 Don Hillock Drive Aurora , Ontario L4G 0G9 www.video-furn.com Toll Free: 1-877-834-3876...
- Page 8 8 OPTIONAL This unit can be configured for use with dual monitors, additional hardware required. Hardware for this configuration can be purchased seperately. AUDIO VIDEO FURNITURE INTERNATIONAL 288 Don Hillock Drive Aurora , Ontario L4G 0G9 www.video-furn.com Toll Free: 1-877-834-3876...
