Wi-Fi Setup for CN51

If you desire to use the AccuBar handheld wirelessly to send information to
and from the server without having to dock the handheld, here are the
procedures to set up the wi-fi connection. The handheld will enable and
disable the wireless as needed so that it doesn't drain the battery while
constantly searching for a network.

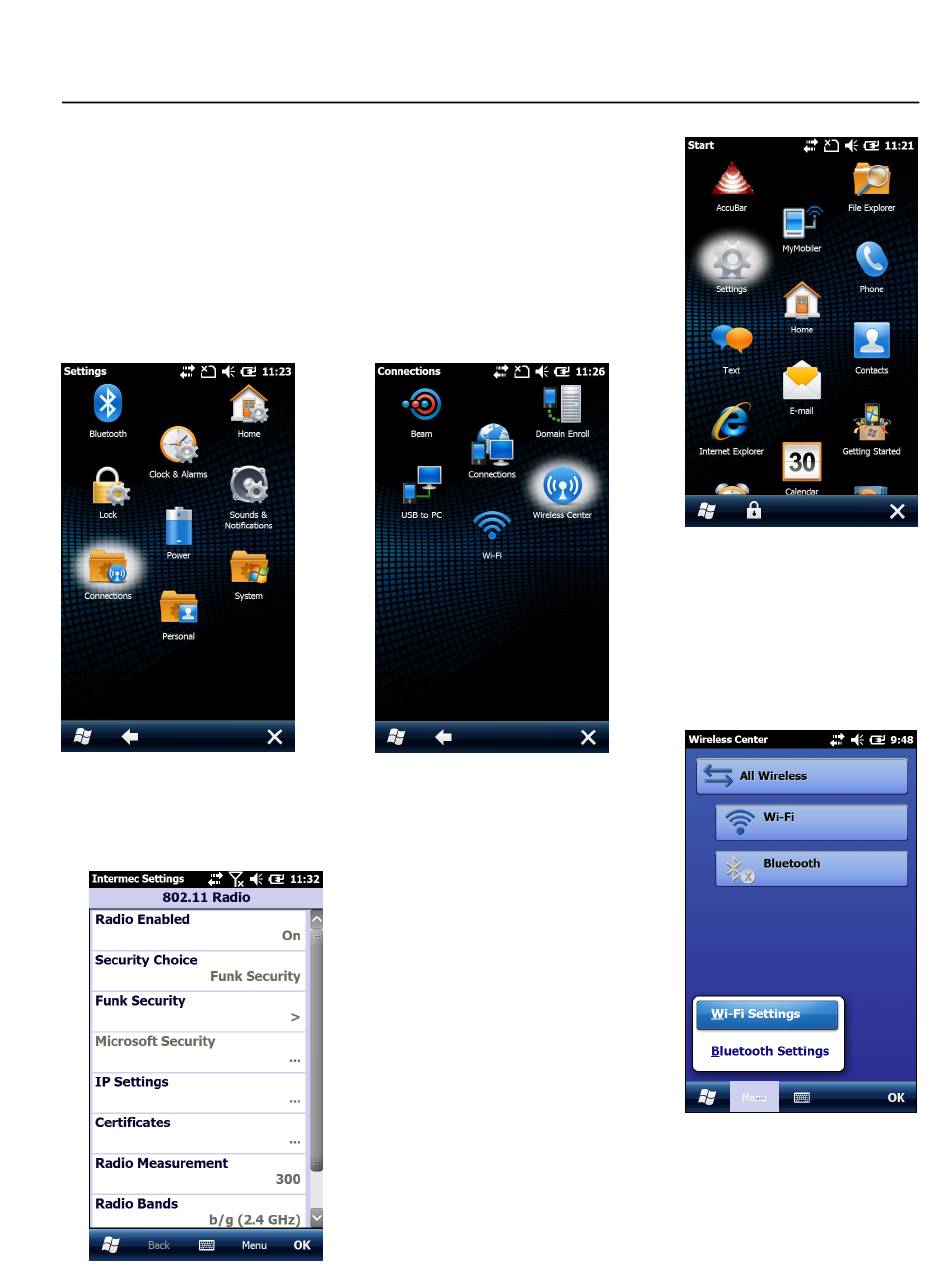

1. On the handheld, Click on Start > Settings.
2. Select Connections icon. Scroll down to find the Wireless Center
icon and click on that.
3. The next screen is the Wireless Center. Here you tap on Wi-Fi to
turn on the Wi-Fi so that it can find the available networks.
4. Next you want to tap on Menu at
the bottom left corner and then select Wi-
Fi Settings so that we can go to the Wi-Fi
Settings page to setup the network.
5. From the wi-fi settings screen,
the settings are defaulted with the
Security Choice as Funk Security.
Note: From this point on you may have to
get your company's IT representative if
you do not know or have access to the
company's specific Wi-Fi settings.
6. Tap on the Funk Security to go into the setup page for the wi-fi
network. This is where we setup the wi-fi profile that will be used for the
wi-fi network.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CN51 and is the answer not in the manual?

Questions and answers

Summary of Contents for AccuBar CN51

  • Page 1 Wi-Fi Setup for CN51 If you desire to use the AccuBar handheld wirelessly to send information to and from the server without having to dock the handheld, here are the procedures to set up the wi-fi connection. The handheld will enable and disable the wireless as needed so that it doesn’t drain the battery while...
  • Page 2 7. Select the Profile you want to use to setup the network. You can leave the profile name as the default or you can change the name of the Profile to be the same as your network to more easily identify it later whenever you have to make edits or changes.
  • Page 3 Once you have confirmed that the wireless connection is working, click on the X to exit Internet Explorer. AccuBar will only enable the wireless when it needs to be enabled within the program, for example, to send inventories or to refresh items from server. Otherwise, it will disable the wireless connection to prevent the battery from being drained due to constantly searching for a network.
