Summary of Contents for AQUADERM AD-300 AQUAFUSION

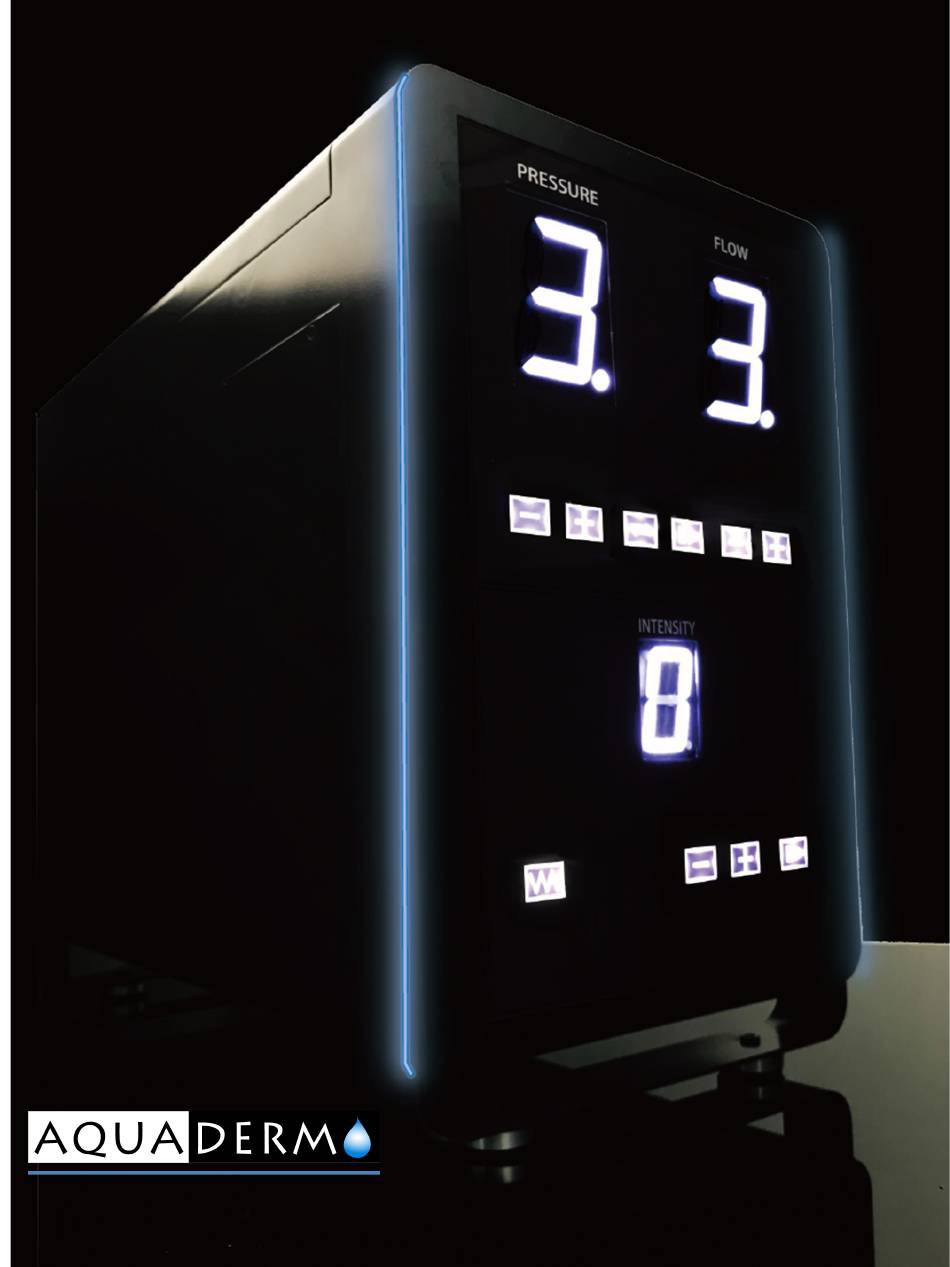

- Page 1 AD-300 AQUAFUSION USER MANUAL...
- Page 2 Thank you for purchasing an AD-128 AQUADERM Unit. This unit provides the following functions: 1.Hydro Dermabrasion 2.Hydro Repair 3.Individual Control Concept 4.Hydro Nano-Diamond Tips for various scale 5.EMS Current 6.Bio Infusion Current 7.Cleansing Current 8.Vitamin, Serum injection 9.Chromotherapy Infusion 10.Heavy duty, Silent motor 11.Smart System Cleansing...
-
Page 3: Customer Service
CUSTOMER SERVICE: Please contact P & C or regional dealer for complete instructions for returning your product for repair at: lEmail : info@pcmermaid.com CAUTION: • This appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge. - Page 4 Fusion can be defined as a combination, dissolving and hybrid process stage. The AD-300 Aqua Fusion fusions the elements of vitamins as well as skin repair and lotion water as base. AQUADERM allows the patient to achieve a much deeper and a more even abrasion process. A mixture of vitamin is injected into the skin acting as a first aid kit causing the wounded area to heal at a greater speed with minimum pain.
-
Page 5: Important Notice
Assembly: lNo tools required 1. Open the box carefully and pull out the small accessory/part box with all the appliance pieces, cross check with the accessory list. Check to ensure nothing has been damaged or broken during shipment. If you have any questions or, if you find any damages, please call P &... - Page 6 Assembling Procedure for your new AD-300 AQUADERM Aqua Fusion Unit Conductive pad Socket Hand Piece Socket 4mm Hose 6mm Hose Main power socket / switch Waste Jar Solution A Solution B Select the diamond scale required for treatment, attach the diamond tip and disposable plastic cap to the handpiece...
- Page 7 Control Panel Description for your new AD-300 AQUADERM Aqua Fusion Unit Pressure level indicator Liquid Flow rate indicator 1 : Min 1 : Min 9: Max 9: Max Liquid flow rate Pressure level Setting adjustment Setting adjustment Solution A/B Switch Start / Pause Press and hold for 3 secs To activate system cleaning Micro Current indicator 1 : Min Solution A (blue indication) 9: Max Solution B (green indication) Start / Pause Micro Current level Setting adjustment Current Selection...
- Page 8 LED Indication for your new AD-300 AQUADERM Aqua Fusion Unit Solution A Solution B Waste Jar Full...
-
Page 9: Special Caution
Recommended Pressure & Flow settings for all skin types Old / Saggy Normal skin Sensitive skin Oily / Dry skin skin Facial Area Pressu Pressu Pressu Pressu Flow Flow Flow Flow Neck Face Nose Caution : Commence treatment with a lower vacuum pressure such as 3 or 4 then perform a few slides. - Page 10 Recommended Pressure & Flow settings for all skin types Old / Saggy Normal skin Sensitive skin Oily / Dry skin skin Body Area Pressu Pressu Pressu Pressu Flow Flow Flow Flow Back Butt Knee Elbow Hand Feet / Heel Caution : Commence treatment with a lower vacuum pressure such as 3 or 4 then perform a few slides.
- Page 11 Recommended Hydro Nano-Diamond Tips settings for all skin types Nano Diamond Skin Type Tips For extremely sensitive skin, patients wanting infusion treatment without exfoliation, Flat tip (smooth) thin skin layer #200 (very fine) Sensitive/sensitized skin, delicate skin type, old/saggy skin, Average skin, healthy skin condition, slightly sensitive skin (most commonly used) #170 (fine) Body area: back, butt, hand, elbow, knee, feet and heel Average skin, healthy skin condition, (most commonly used) #120 (medium) Body area: back, butt, hand, elbow, knee, feet and heel More tolerant patient, #60 (coarse) Body area: elbow, knee, feet and heel. Very tolerant skin types, patients used to aggressive treatments. #30 (very coarse) Body area: elbow, knee, feet and heel. Caution : Commence treatment with a lower vacuum pressure such as 3 or 4 then perform a few slides.
- Page 12 Recommended Electroporation Current settings for all skin types Old / Saggy Skin Area Normal skin Sensitive skin Oily / Dry skin skin Neck Face Nose Back Butt Knee Elbow Hand Feet / heel Specific EMS current, targeting to improve skin lifting and firming. Specific BIO infusion current, targeting to improve aging skin cell and loose skin, while stimulating our collagen layer at the same time.
- Page 13 Operating Instructions for your new AQUADERM Aqua Fusion Unit. Hydro Diamond Exfoliation Note the following operating safety features: • Pay careful attention to the waste jar, system will automatically shut down when the waste jar reaches the warning mark. Please empty the waste jar after every treatment.
- Page 14 SET UP for Electroporation INFUSION 1. Secure the conductive pad wire to the device, secure the adhesive conductive pad to the back of the shoulder and connect to the conductive wire, 2. You may adjust the settings freely due to the treatment preference (solution type, pressure setting, flow setting, Micro current type, current level) Electroporation Infusion ONLY 1. ...
- Page 15 System Cleaning Instructions for your new AQUADERM Aqua Fusion Unit. Maintenance & Daily Smart System Cleaning • It is recommended that you perform Smart System Cleaning Procedure after every 3~5 treatments or no longer than 3 days, in order to thoroughly sanitize the hoses for any dead skin or bacteria residuals, and to avoid any cross infection between each customer.
- Page 16 • Verify the drainage pipe is not blocked • Care and Maintenance of your new AQUADERM Aqua Fusion Unit • USE LIQUID BASE VITAMIN AND SERUM ONLY. • IF OIL BASE COSMETIC IS A MUST, PLEASE DILUTE WITH RELEVANT LOTION WATER, NOTE FOR SIDE EFFECT, TEST THE RESULTS ON YOUR ARM BEFORE MOVING TO THE FACE.
-
Page 17: Accessories And Parts List
Accessories and Parts List Accessories Hydro hand piece nano diamond tip, 30 grit (8mm) nano diamond tip, 30 grit (10mm) nano diamond tip, 60 grit (8mm) nano diamond tip, 60 grit (10mm) nano diamond tip, 120 grit (8mm) nano diamond tip, 120 grit (10mm) nano diamond tip, 170 grit (8mm) nano diamond tip, 170 grit (10mm) nano diamond tip, 200 grit (8mm)
