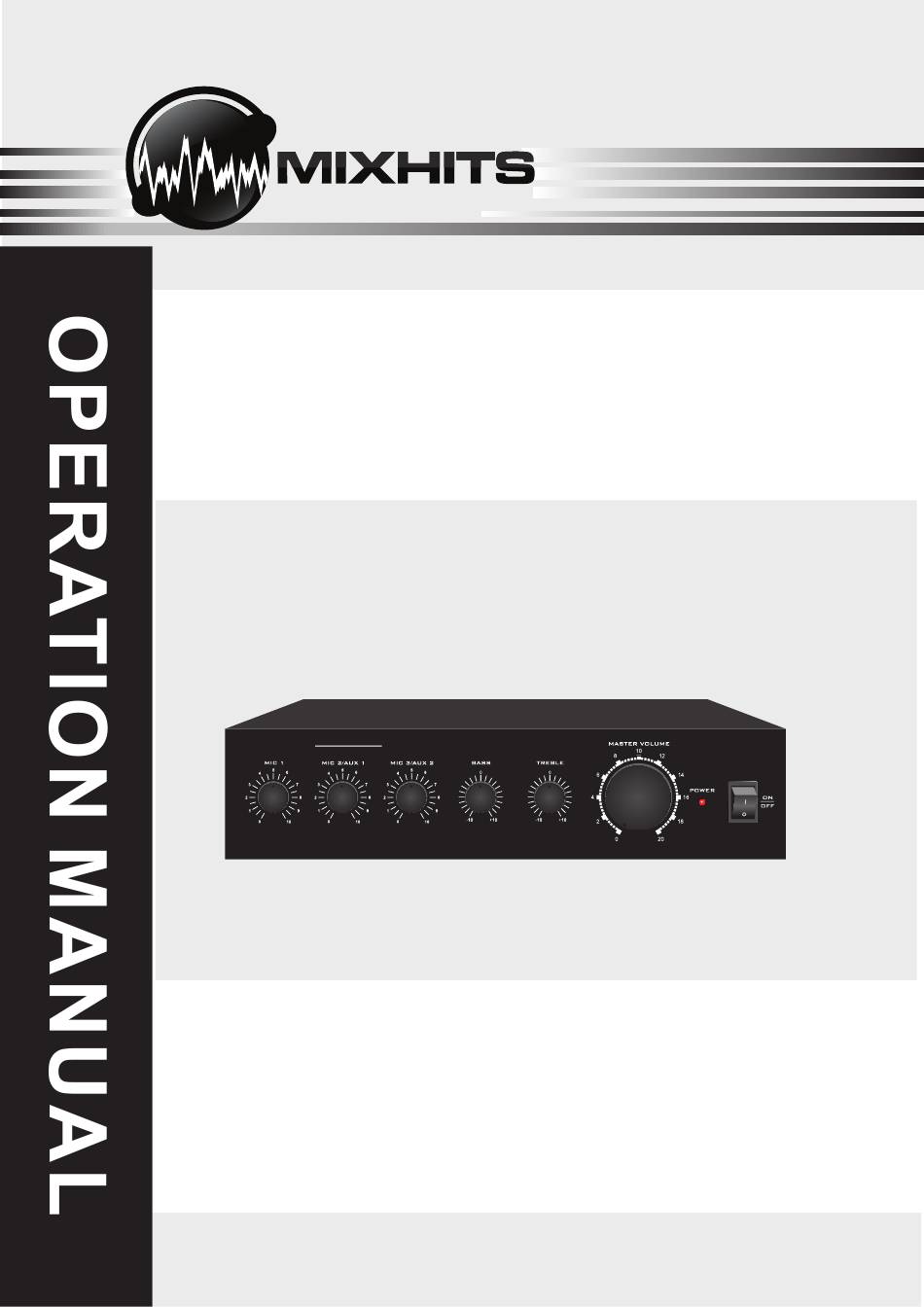

- Page 1 A U D I O MRT-35M Mixer Amplifer Lorem ipsum MRT-35M MIXER AMPLIFER Please follow the instructions in this manual to obtain the optimum results from this unit. We also recommend that you keep this manual handy for future reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. SAFETY PRECAUTIONS GENERAL DESCRIPTION 3. FEATURES 4. FUNCTIONS OPERATION Ω 6. CONNECTION DIAGRAM BLOCK DRAWING SPECIFICATION... - Page 3 AC outlet and as doing so may result in fire or electric shock. contact your Mixhits Audio dealer. Do not attempt to operate the unit in this condition as this may cause • Use the unit only with the voltage specified on fire or electric shock.
-
Page 4: Safety Precautions
• Do not block the ventilation slots in the unit's may result. Contact your Mixhits Audio dealer to cover. Doing so may cause heat to build up inside schedule a cleaning of the unit. -
Page 5: General Description

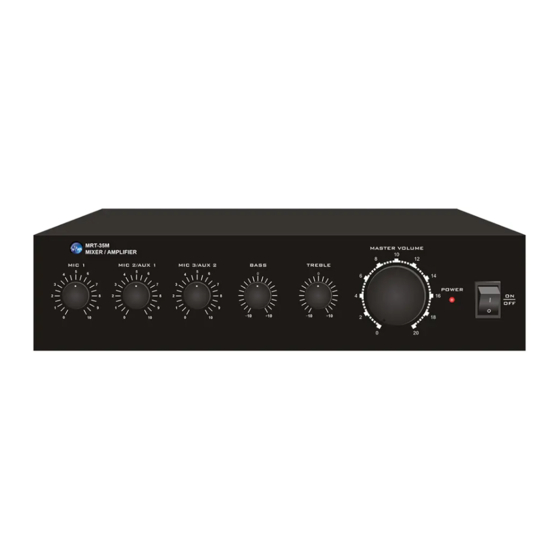

2. GENERAL DESCRIPTION The MRT-35M is a tabletop constant voltage amplifier. It's small size and light weight is designed to deliver reliable music and paging in many places such as small offices, quick server restaurants, retail, and hospitality locations. 3. FEATURES 1. - Page 6 4. FUNCTIONS 4.2 REAR PANEL AUX2 OUTPUT COM 4-16Ω 70V 100V AUX2 MIC3 MIC3 AUX1 AUX1 MIC2 MIC2 MIC1 14 15 4.3 REAR PANEL(+24V) AUX2 OUTPUT BATT SUPPLY COM 4-16Ω 70V 100V AUX2 MIC3 MIC3 AUX1 AUX1 MIC2 MIC2 MIC1 14 15 9.
- Page 7 5 . O P E R AT I O N I L L U S T R AT I O N Power LED Power switch Figure 5.1/5.2 When the power switch is "ON" the power indicator is lit (red). When the power switch is "OFF", the power indicator will go off. 5.3 MIC1 input(1/4") AUX2 OUTPUT...
- Page 8 O P E R AT I O N I L L U S T R AT I O N 5.4 AUX2 input AUX2 OUTPUT COM 4-16Ω 70V 100V AUX2 MIC3 MIC3 AUX1 AUX1 MIC2 MIC2 MIC1 Volume control POWER OPEN CLOSE PLAY STOP...
-
Page 9: Connection Diagram
6.CONNECTION DIAGRAM... - Page 10 7. BLOCK DIAGRAM...
-
Page 11: Specification
8. SPECIFICATIONS Model T-35M Rated Power Output Speaker Outputs 4-16 Ω ,70V/100V MIC IN: +5mV, unbalance 1/4" connect terminal Input Sensitivity & Impedance AUX IN: 350mV, unbalance RCA/1/4" connect terminal Bass: ±10dB at 100Hz Tone Treble: ±10dB at 10KHz Frequency Response 80Hz~16KHz(+/- 3dB) S/N Ratio ≥75dB... - Page 12 If this product has a defect covered by this warranty, Mixhits Audio will, at its sole option, either: (1) repair this product at no charge to you, using new or refurbished replacement parts, (2) exchange this product with a product that is new or which has been manufactured from new or serviceable used parts and is at least functionally equivalent to this product, or (3) refund the purchase price of the product.
