Mastervolt MLI Ultra 12/3000 Quick Start Manual
Mastervolt MLI Ultra 12/3000 Quick Start Manual

Mastervolt MLI Ultra 12/3000 Quick Start Manual

Advertisement

Quick Links

MLI Ultra 12/3000, 12/6000, 24/6000
Unpacking
Included
Required
Refer to the manual
The quick start guide contains a brief overview of the device. Please refer to the manual for
more detailed instructions. Scan the QR code to download the manual.
Important safety instructions
Always install an external safety relay!
Do not short-circuit the device.
Only use a Lithium compatible charger.
Observe the positive (+) and negative (–) marks on the device.
Use DC cables with an appropriate size.
Do not damage, open or drop the device.
Do not expose the device to heat or fire.
When you transport the device, make sure that the device is upright and in its original package or equivalent.
If the device has a leakage, do not touch or swallow the released materials or inhale the released gases. If skin
contact, eye contact or inhalation occurs, take the necessary first aid measures immediately. Refer to the material
safety data sheet for Lithium-Ion batteries at www.mastervolt.com.
Location specifications
Install the device:
-
in a well ventilated room,
-
protected against rain, snow, water, vapor,
moist and dust,
-
away from heat sources,
-
in upright position,
-
at least 1 cm away from another Lithium-Ion battery,
-
Secure the device with mounting straps or equivalent.
10000020647/01
Required tools
L
+
_
M
Quick Start Guide

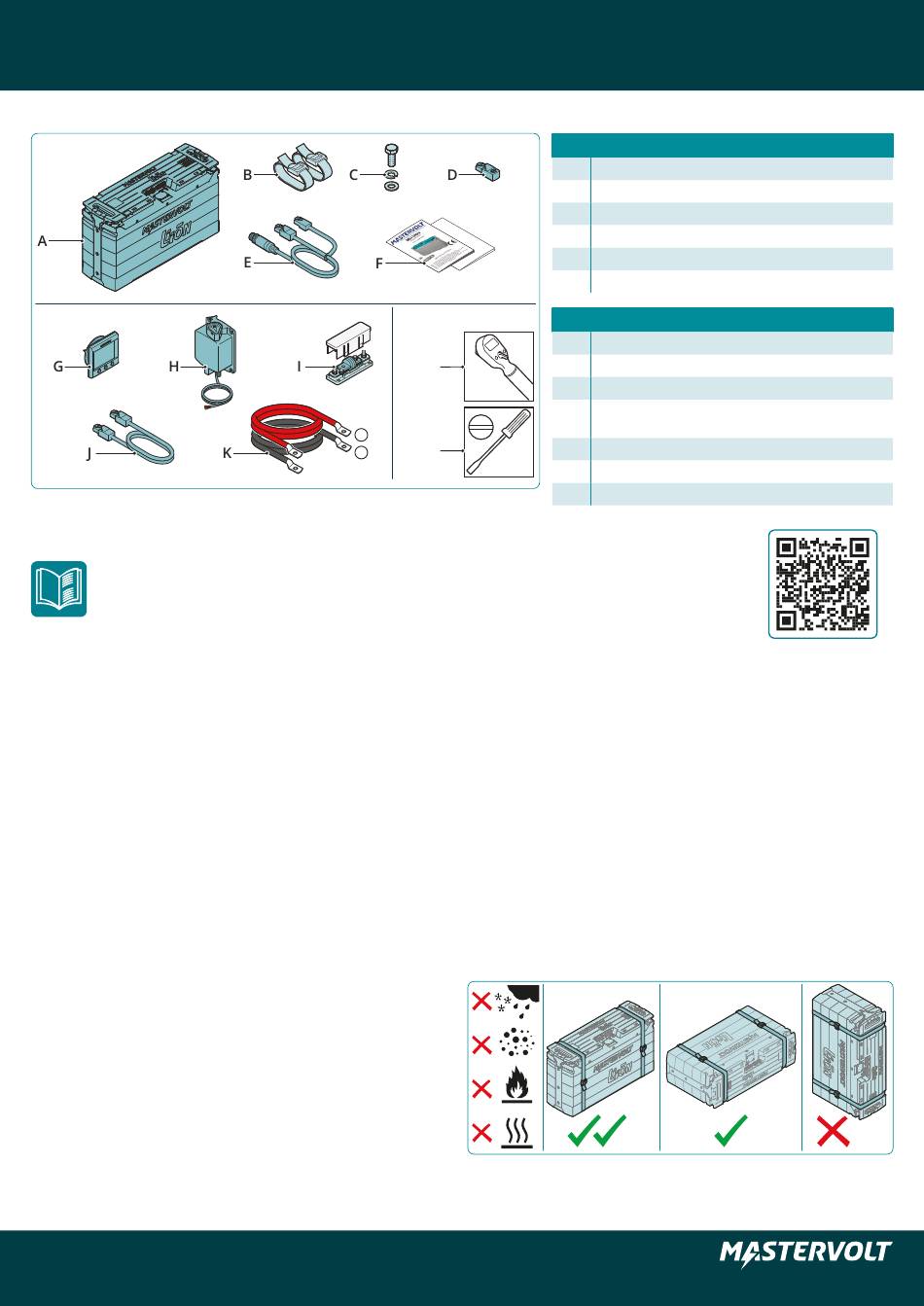

Included parts
A
MLI Ultra
B
Mounting straps
C
2x M8 Bolt, spring washer and washer
D
MasterBus terminator
E
CZone drop cable
F
User and installation manual
Required parts and tools
G
Display
H
Safety relay
I
T Fuse holder and Fuse
J
MasterBus cable (in case of a MasterBus
network)
K
DC main wiring (+ and-)
L
Hexagon socket wrench (13mm /
M
Flat screwdriver (2mm /
/
")
1
2
/
")
1
