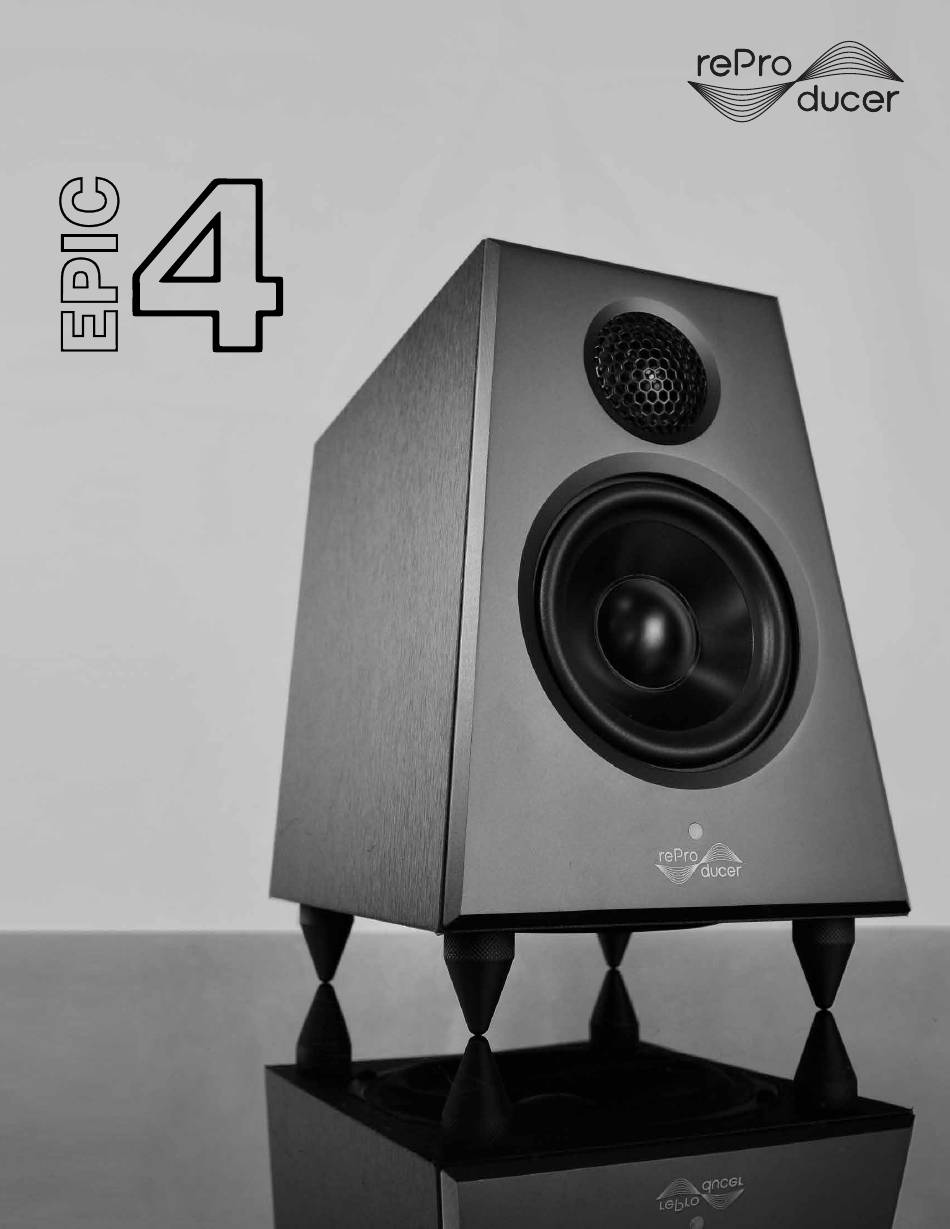

- Page 1 Compact Precision Nearfield Studio Monitor User Guide...
-
Page 2: Table Of Contents
Table of Contents Welcome!.....................3 The Concept Behind Epic 4..............3 Quick Reference..................4 Unboxing.....................4 Setup Recommendations..............5 Spikes & Silicone Pads..............5 Ideal Listening Distance & Height...........6 Correct Temporal Alignment of Drivers.......6 Stereo Image...................6 Spacing..................7 Wall Mounting.................7 Sound Level....................8 Fire-Tuning & Room Adjustments............8 Overload....................9 Breaking-In Your Speakers..............9... -
Page 3: Welcome
5.1/7.1 surround, Dolby Atmos systems, etc. Our Epic 4 compact nearfield studio monitor is the perfect solution for either of these use cases. It’s compact size makes it perfect for home studios, improvised studios, traveling engineers and producers, and multi-channel monitoring systems. -
Page 4: Quick Reference
Epic 4 Quick Reference Front Panel Tweeter Woofer Clip Indicator Standby Mode Working Mode Passive Radiator Spike (Bottom Panel) Silicone Pad Back Panel Volume Control RCA Input -10dBV VOLUME UNBALANCED Low Frequency Trim XLR Input LF-TRIM +4dBV www.reproduceraudiolabs.com BALANCED High Frequency Trim... -
Page 5: Setup Recommendations
When removing your Epic 4s from the case, be sure not touch or damage the passive radiator in the process. Setup Recommendations In order to achieve the best possible sound quality, we recommended considering the interaction between the loudspeakers and the surrounding physical and acoustical environment, as well as the position of the listener relative to the loudspeakers. -
Page 6: Ideal Listening Distance & Height
Correct Temporal Alignment of Drivers The front plate of the Epic 4 is designed to be inclined! – Do not raise the back of the cabinet, resulting in a vertical front. We highly recommend not using your Epic 4s on a writing desk or placing them below ear level. -
Page 7: Spacing
The supplied spikes must be used to allow the required fast airflow and the area beneath and around the passive radiator should be clear. Wall Mounting Epic 4’s back panel features threaded mounting holes that can be used to attach wall mounts. -
Page 8: Sound Level
On the back side of the cabinet you will find two knobs that allow you to optimize the tuning of the Epic 4. Both trims cut or boost in a range of ±5 dB in 1 dB steps. The HF-Trim starts above 2.5 kHz, the LF-Trim below 250 Hz. -
Page 9: Overload
Safety Precautions! • High sound pressure level can DAMAGE your hearing permanently! Especially at short distances the Epic 4 is able to generate a significantly higher SPL than the recommended limit for ear protection! • To prevent compression effects we decided not to use any dynamic limitation. -
Page 10: Technical Specifications
Technical Specifications Frequency Response (Tweeter) +/- 3 dB – 80 Hz — 30 kHz Frequency Response (Woofer) +/-10 dB – 65 Hz — 40 kHz Amplifier Power Woofer 50W RMS, Tweeter 50W RMS Amplifier Technology Class D, 115 dB dynamic range, high current and damping, range over 100 kHz, ultra-low no-noise Max. -
Page 11: Technical Support
Technical Support If you need help with your Epic 4s, please don’t hesitate to contact us! https://reproduceraudiolabs.com/support... -
Page 12: Limited Warranty
Limited Warranty Epic 4 monitors are covered under warranty to be free from defects for a period of one year from the date of purchase. Register your monitors with us: https://reproduceraudiolabs.com/register reProducer Audio Labs designs reliable, sonically uncompromising, and visually stunning studio monitors that allow audio engineers to make sound decisions quickly in professional working environments and project studios alike.
