Summary of Contents for Carro PN-04F02D
- Page 1 Ceiling Fan Smart Switch User Manual SMART LIFE STAYS IN MOTION...
- Page 2 General Specifications Model FCC ID 2ANDL-WBR3 PN-04F02D Power Supply Rated Frequency 60Hz AC 120V Fan: 1.5A 400W/gang Max. Power Max. Current Light: 2.5A IEEE 802.11b/g/n Wireless Standard WiFi 2.4GHz WIFI Installing your switch Turn power off at circuit breaker! WARNING – SHOCK HAZARD May result in serious injury or death.
- Page 3 Wiring Switch. White: Neutral (Supplied) Black: Live Bare copper or Green: Ground Red: Load (Light) Orange: Electric Fan Electric Fan Light Note: Make sure all the wires are connected with the correct colors as shown above.
- Page 4 Take out the white wire and wiring cap from the screw bag . Stick this white wire to the switch using the provided screw. Then connect tightly the white wire to the Neutral wire from the wall by wiring cap. (If the length of Neutral wire from the wall is long enough, connect it to the switch directly.) Connect tightly the remaining wires from the wall to the switch by the...
- Page 5 Installation of the Smart Switch is now completed. Turn the circuit breaker back on.
- Page 6 Switch can be assembled in several. Switch can be combined in 2gang, 3gang, or 4gang boxes. The buttons and switch can be seamlessly connected together, which fully conforms to the size of the home switchbox. step 1 step 2...
-
Page 7: Operation

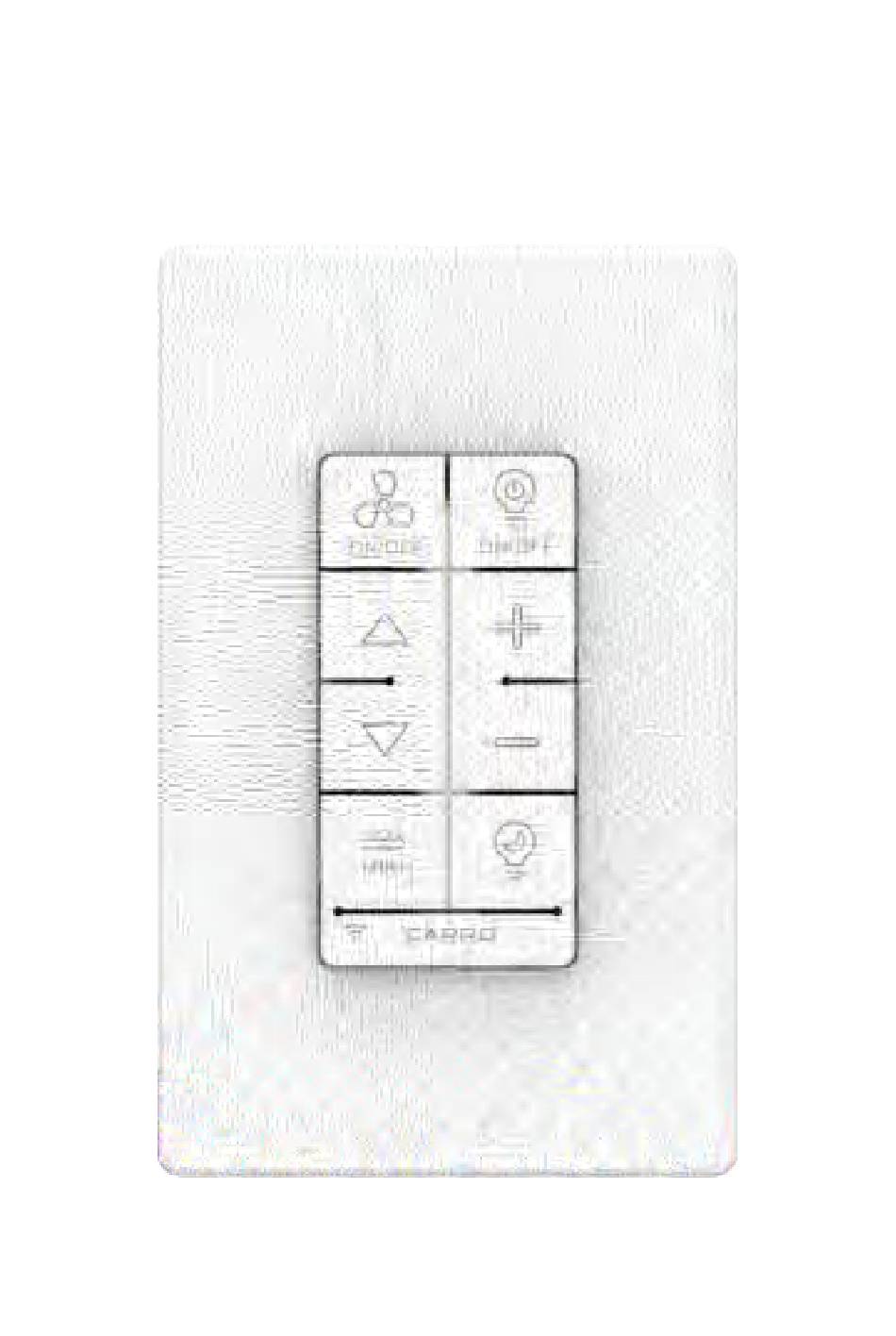

Operation Fan On/Off Light On/Off ON/OFF ON/OFF Fan Speed Up Light High Fan Speed Down Light Low Sleep Breeze Night Light MINI Pair Function,press and Fan Indicator Light hold button for 5 Seconds to retry switch and App connection. Turns the power to fan off. Turns the light on and off. - Page 8 NOTE:If the fan indicator light is blinking then the switch is ready to pair with the App. If you are unable to pair smart switch with App, press and hold "CARRO"button for 5 Seconds until LED indicator light starts blinking slowly on switch button to pair with App again.
- Page 9 APP control Connection (Wifi and Bluetooth): 1. First download the free Carro Home app from the App Store or Google Play or scan the QR Code as below. 2. Open the Carro Home app to create your account. The account with “Carro Home”...
- Page 10 Open Alexa app, go to the skill to search “Carro Home” skill. c. Link the skill, log in with your Carro Home app account and password, then authorize and connect with Carro Home app. d. Then the Alexa will find out the device automatically.
-
Page 11: Troubleshooting
• Set fan speed to high. slow. •The WIFI must be 2.4Ghz, incompatible with 5Ghz WIFI. •Press and hold CARRO button for 5 seconds Unable to pair until LEDs start blinking slowly on switch button switch and app to pair with App again. Use the AP mode will improve your success rate for the WiFi connection. -
Page 12: Fcc/Ic Information
(1) This device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation. Modifications not expressly approved by Carro USA Inc. could void the user’s authority to operate this equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
