Elementia Materials Plycem EUREKA Installation Manual

DEFINITION-

Eureka Tanks are manufactured using the newest and most advanced technology in Rotomoulding,

APPLICATIONS

using
lightness
Eureka Tanks provide high resistance due to their characteristic reinforcement belts and are off ered
in two presentations; Two-layer, with a white inner layer and its traditional black color on the outside,
or three-layer with a third sand-colored layer that provides better protection, durability and aesthetics.
Consult the technical data sheets of water tanks at www.plycem.com.
STORAGE AND
◾ Storage tanks on a fl at surface free of objects that could damage the tank walls or fl oor.
HANDLING
◾ Stack according to size in no more than two levels, placing the tanks on the highest level between the two lines below.
Do not stack on top of the lower tank lids.
◾ Avoid storing tanks on mezzanine edges or places where they can fall and be knocked over.
◾ When handling, they should not be thrown from heights, dragged or knocked against walls or fl oors.
◾ Protect the connection plans and other components of the system during handling and storage.

ACCESSORIES

Note:
*Ask for the accessories kit content. Filter may be included or optional depending on country. The type of filter will depend on
inventory availability.
Accessories not included
◾ 1 1/2" female adapter.
◾ 2 reductions from 3/4" to 1/2".
◾ 2 3/4" male adapters.
◾ 3 1/2" male adapters.
◾ 2 1/2" elbows.

INSTRUCTIONS

Before installing the tank at the installation site, aspects such as topography, soil types, fl ooding areas, close
vegetation, etc., among others, should be reviewed. This is in order to avoid that any of the above mentioned
factors may interfere with the proper functioning of the system or may put the structural integrity of the tank at risk.
Improper
Step 1: Build a level, fl at base to place your tank on.
To obtain adequate pressure in the distribution line, verify that there is a minimum height of 2 meters from the base of
your tank to the highest expected height (faucet or shower).
Step 2:
1.
To install the valve and fl oat your tank has a hole (3) in the top neck
to insert the water feed tube (5), to the end of the tube, using a
union (4) (not included). Install the valve and fl oat (1 and 2) as shown.
2. Electronivel option (electrode not included). Your new tank has a
special base that allows the placement of an electric fl oat or electro level.
Place Tefl on tape (not included) on all pipe threads and fi ttings to be installed.
Access to the complete installation manual and product warranty at www.plycem.com
polyethylene resources
and durability, maintaining
A
Capacity A B
mm mm
litros liters mm mm
875 570
250
905 865
450
1100 1300
750
1160 1265
1100
1610 1540
2500
Ask for available of stock
Multi connector
Float
valve
selection of
Control alternatives (1

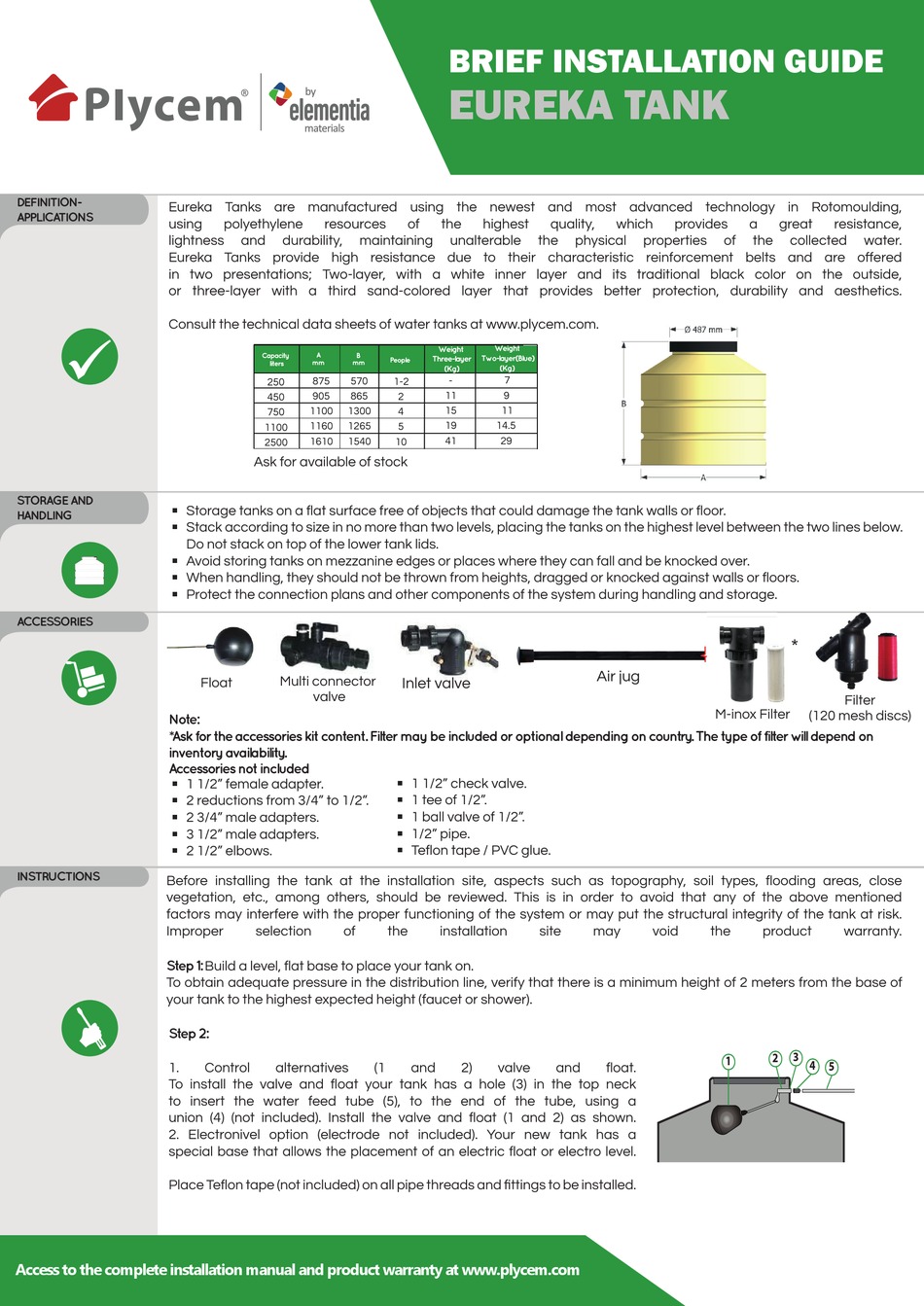

BRIEF INSTALLATION GUIDE
EUREKA TANK
of the highest quality,
unalterable the
Weight
Weight
B
Two-layer(Blue)
Three-layer
People
(Kg)
(Kg)
7
-
1-2
11 9
2
11
15
4
19 14.5
5
41 29
10
Inlet valve
◾ 1 1/2" check valve.
◾ 1 tee of 1/2".
◾ 1 ball valve of 1/2".
◾ 1/2" pipe.
◾ Tefl on tape / PVC glue.
the Installation site
and 2) valve
which provides
physical properties of
Air jug
M-inox Filter
may void the
1
and fl oat.
a great resistance,
the collected water.
*
Filter
(120 mesh discs)
product warranty.
3
2
4 5
