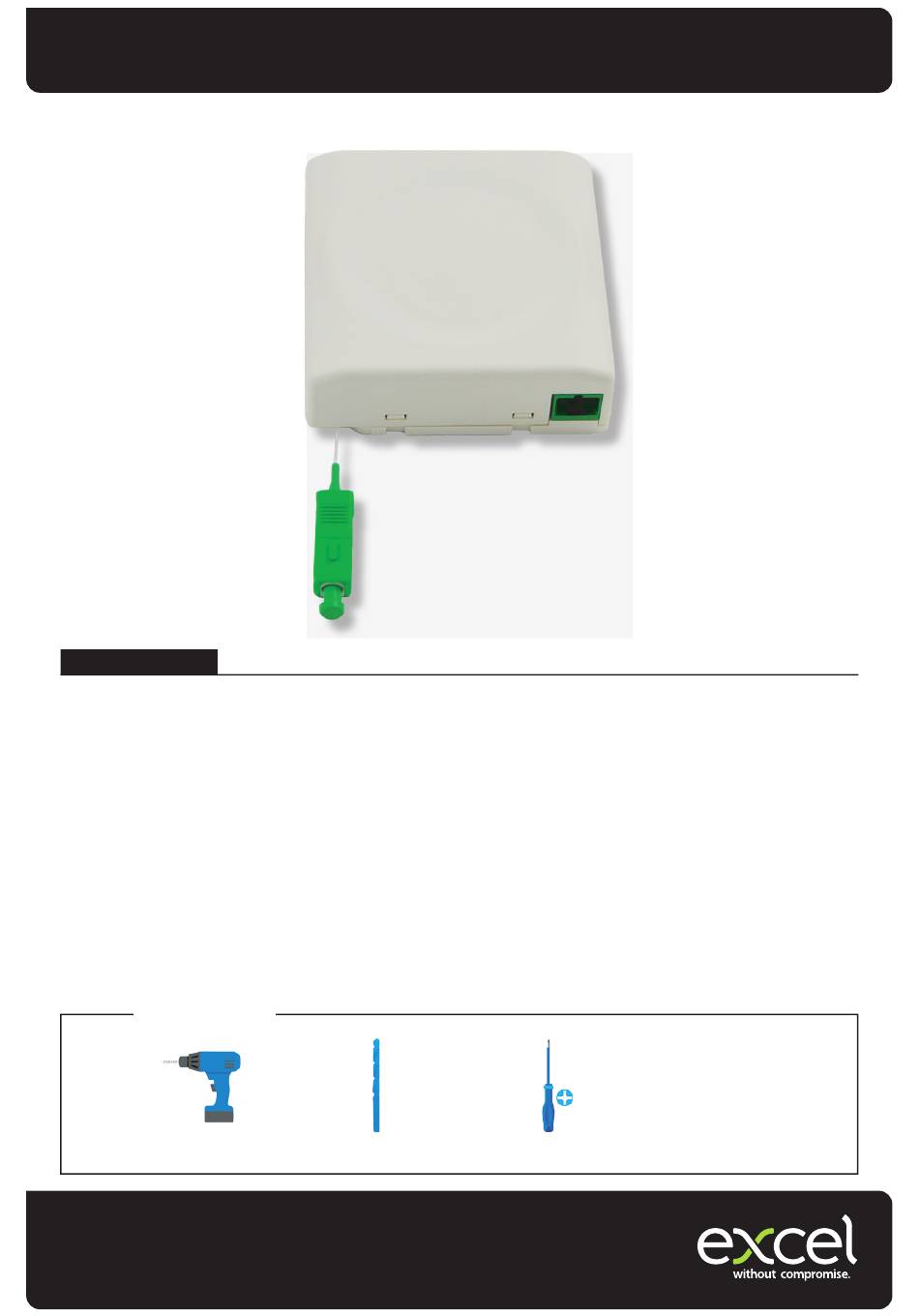

INDOOR DISCREET CABLING SOLUTION
Indoor Discreet Cabling Solution -
Installation Guide
Table of contents
Overview _______________________________________________________________________________________________________________________ 2
Step 1 : Cable Routing __________________________________________________________________________________________________________3
Step 2 : Corner Protection Installation ___________________________________________________________________________________________3
Step 3 : Preparation of cavity wall transition _____________________________________________________________________________________ 3
Step 4 : Installing the Outlet ____________________________________________________________________________________________________4
Step 5 : Unwinding Cable inc Wall Transition _____________________________________________________________________________________ 4
Step 6 : Installing the cable _____________________________________________________________________________________________________5
Step 7 : Completing the Installation _____________________________________________________________________________________________ 7
Required tools
Driller
Ø12.00 drill
Phillips screwdriver
1/8
www.excel-networking.com
Advertisement
Table of Contents
Related Manuals for Excel Encasa 207-001-10
Summary of Contents for Excel Encasa 207-001-10
-
Page 1: Table Of Contents
Step 4 : Installing the Outlet ____________________________________________________________________________________________________4 Step 5 : Unwinding Cable inc Wall Transition _____________________________________________________________________________________ 4 Step 6 : Installing the cable _____________________________________________________________________________________________________5 Step 7 : Completing the Installation _____________________________________________________________________________________________ 7 Required tools Driller Ø12.00 drill Phillips screwdriver www.excel-networking.com... -
Page 2: Overview
Syringe of glue with SC/APC connectors Cavity wall transition protections Cavity wall transition tool (Ø of drill: 12mm) (connector & cable) Strip of hooked cable Outside corner cable protections duct (inc adhesive strip) Inside corner cable protections Screws & Rawlplugs www.excel-networking.com... -
Page 3: Step 1 : Cable Routing
Drill at point minimum of 10mm clearance between wall and skirting/door frame to ensure transition plug cover can be fitted. ▪ Drilling Ø12mm for holes. NB : If you are faced with a door frame affixed to a metal stud (e.g. placostil ®) you 10mm should avoid drilling through it. www.excel-networking.com... -
Page 4: Step 4 : Installing The Outlet
Re-fix the outlet to the wall and insert the two screws to secure it in place. Step 5 : Unwinding Cable inc Wall Transition ▪ Unwind the cable following the route it will be First you must open the cover over the installed up to the outlet (B). connector. www.excel-networking.com... -
Page 5: Step 6 : Installing The Cable
Cut the adhesive hooked cable duct at the desired length (LG) and remove strip. ▪ Stick the strip in place under the outlet. ▪ Insert the connector into the outlet. ▪ Insert the cable inside the hooks on the adhesive strip. www.excel-networking.com... - Page 6 Ensure all four connectors from No1 Red to No4 Yellow are able to connect to outlet prior to gluing the cable in place. Corner protections management ▪ Apply the glue. ▪ Stick the cable. ▪ Insert the cable into the corner protections. Inside corner protection Outside corner protection www.excel-networking.com...
-
Page 7: Step 7 : Completing The Installation
▪ Continue gluing the cable towards the extractable cable outlet. Step 7 : Completing the Installation ▪ Cut the desired length (LG) of adhesive hooked duct. ▪ Stick the duct underneath the extractable cable outlet. www.excel-networking.com... - Page 8 ▪ Insert the cable inside the adhesive duct strip. ▪ Clip the outlet cover in place to complete the installation. At the end of the operation, please discard the syringue with the remaining glue in a waste recycling center. www.excel-networking.com...
