Rexing W1 User Manual

Rexing W1 User Manual

7" digital media receiver for apple carplay and android auto w/backup camera

Advertisement

Quick Links

W1

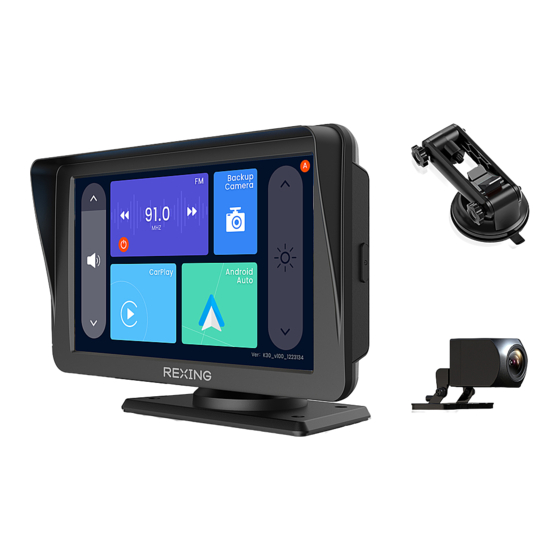

7" Digital Media Receiver for
Apple CarPlay and Android Auto
w/Backup Camera
User Manual
The information in this manual is subject to change without notice.
www.rexingusa.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rexing W1

  • Page 1 7" Digital Media Receiver for Apple CarPlay and Android Auto w/Backup Camera User Manual The information in this manual is subject to change without notice. www.rexingusa.com...
  • Page 2 (877) 740-8004 9 am - 6 pm EST (Monday to Friday) Our Support Team will respond to you as soon as possible. Always a surprise in Rexing. Check us out here. • https://www.facebook.com/rexingusa/ • https://www.instagram.com/rexingdashcam/ • https://www.rexingusa.com/support/registration/...
  • Page 3: Package Contents

    Safety Guide 安全ガイド User Manual The information in this manual is subject to change without notice. www.rexingusa.com www.rexingusa.com Display Holder W1 7" Display Suction Cup Mount 3.5mm to 3.5mm Cable User Manual Rear Camera Safety Guide Installation Mount Power Cable...
  • Page 4: Product Overview

    Product Overview 3.5 mm AUX Port Power Button Rear Camera Port USB Port...
  • Page 5 How to Wire the Rear Camera: Rear camera wiring options Connected to the reversing light Note: It is not necessary to connect the red wire to the reverse light. But if you want to use the parking assist function, it’s recommended to connect to the red cable to the reverse lights, so the screen will display the image of the rear camera automatically when the vehicle is in reverse.
  • Page 6: Interface Overview

    Interface Overview Auto brightness ON/OFF Increase Volume Up FM Receiver Rear Camera View Brightness Backup Camera Android CarPlay Auto Volume Down For iPhones For Android Phones/pixel Reduce Brightness...
  • Page 7: Basic Operation

    Basic Operation Car Media Receiver Notes: The CarPlay (iPhone) and Android Auto cannot be connected and used at • the same time. The device will save the last iPhone/Android phone used as default, • which will connect automatically next time. When connecting via Carplay or Android Auto, the device touch tone or •...
  • Page 8 Display & Brightness (not required); Home Screen Accessibility 10:44 10:44 Select "Use CarPlay" for Bluetooth Bluetooth access permission; the W1 Settings Settings will display a CarPlay Bluetooth Bluetooth screen after the connection Now discoverable as..iPhone”. Now discoverable as..iPhone”. is complete.
  • Page 9 CarPlay. There is no need of clicking Bluetooth connection again then. If the Bluetooth and Wi-Fi are connected, but the CarPlay is not showing • on the W1, please set your phone setting screen time content and privacy access restriction...
  • Page 10 Apple CarPlay Features 18:20 16 min Home Not Playing Home Access phone calls, messages, navigation, music, podcasts, audio books, etc. via your iPhone. Start Siri by voice by saying “hey Siri”; or long press the navigation button in the lower left corner of the Carplay screen to Start Siri voice commands. Return to the main interface: clicking the HOME icon on the carplay screen to return to the main interface.
  • Page 11 Connect to Android Auto Please connect the mobile phone to the Bluetooth device first: CAR-KIT-XXXX After the connection is completed, it will automatically connect to the mobile WiFi. How to Connect: 10:44 10:44 10:44 Connect devices Settings Pair new device automatically Use Bluetooth Device name...
  • Page 12 During the operation, if you shut it down by mistake and start the Bluetooth switch in phone, ou may have to go through the steps for connection again the next time you try to connect/reconnect.will show up the W1 Display after a successful connection. Notes: •...
  • Page 13 Android Auto Features 11:46 Exit Podcasts Messages Maps Settings Weather News Calendar Phone YT Music Access phone calls, messages, news, podcasts, navigation, music, news, weather app, etc. Turn on the virtual assistant by voice; or clicking the microphone at the bottom right ofthe image of Android auto to turn it on.
  • Page 14 Backup Camera Backup View: Press the rear camera button to activate the rear camera. Or if you want to use the parking assist function, it’s recommended to connect to the red cable to the reverse lights, so the screen will display the image of the rear camera automatically when the vehicle is in reverse.
  • Page 15 FM Receiver Backup Camera Android CarPlay Auto How to Connect: Press the POWER icon to turn on (GREEN) the FM Receiver function, press it again to turn the feature off (ORANGE). The frequency band can be set by clicking the left and right arrow (the default frequency band is 91.0 MHZ) Adjusting the FM frequency band of vehicle radio to the same one as the device FM Receiver.
  • Page 16: Specification

    Specification Model No. Product Rexing 7" Digital Media Receiver for Apple CarPlay and Android Auto w/ Backup Camera Cortex-A53 dual-core 1.2G DDR3 1G FLASH 256M Touchscreen Working Voltage Working Temperature -13 °F to 149°F Storage Temperature -31°F to 185 °F Screen Size 7"...
  • Page 17: Warranty And Support

    Warranty & Support Warranty The Rexing W1 comes with a full 12-month warranty. If you register your product on our official site https://www.rexingusa.com/support/registration, you can extend the warranty to 18 months. Support If you have any questions regarding your product, please do not hesitate to contact us at care@rexingusa.com, or call us at...
  • Page 18 FCCID: 2AW5W-W1 This equipment has been tested and found to comply with the limits for a Class B digital device,Pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
