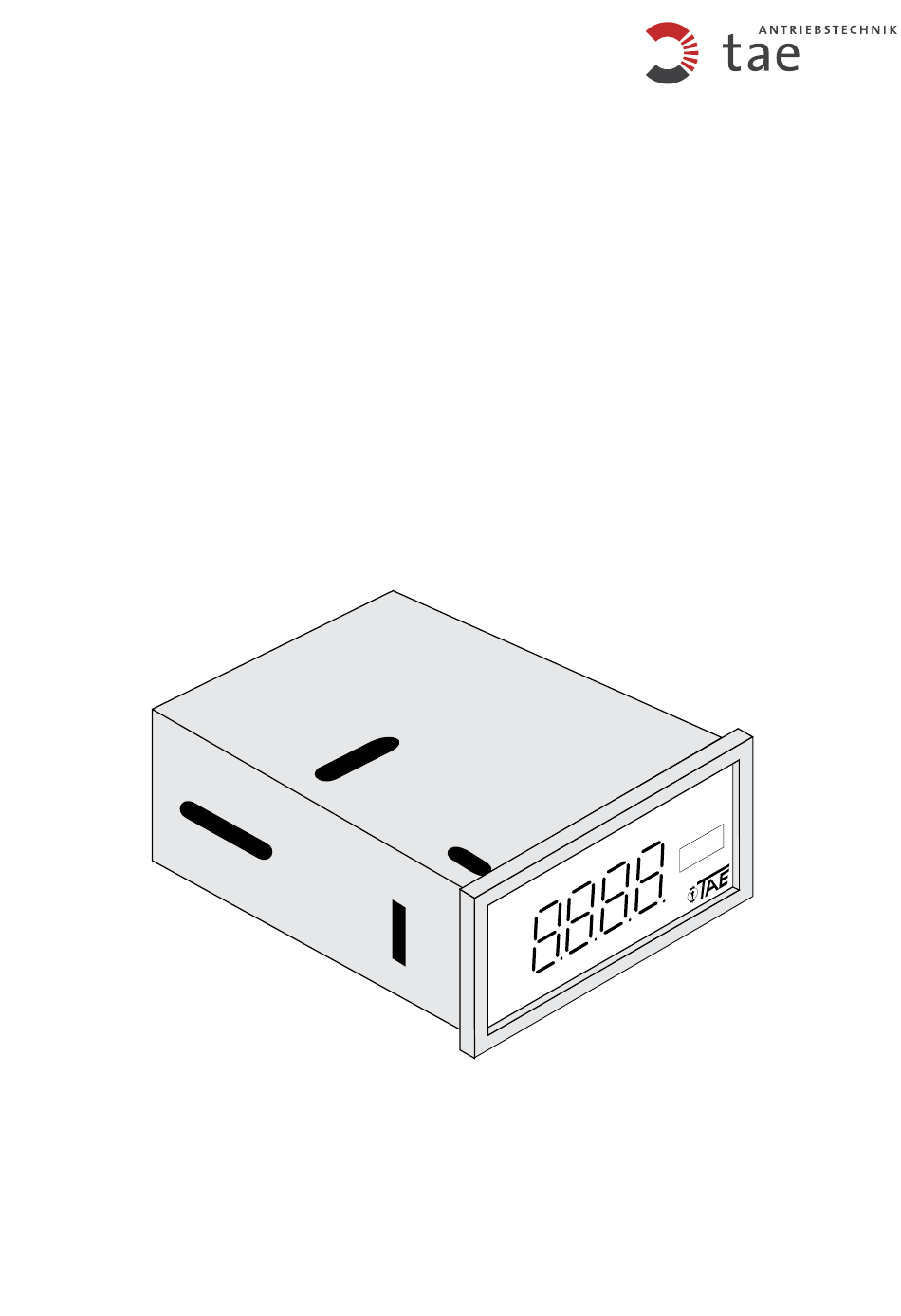

Voltmeter
DMI 2000
Instruction and Operating Manual
n
m i
m /
Caution :
As with any form of electrical equipment, there is always a risk involved in the handling of electrical
machinery. The greatest care must always be exercised during installation and maintenance, and it is
recommended this be carried out by authorized personnel.
TAE Antriebstechnik • Raiffeisenstraße 10 • D-61250 Usingen
The German text applies in cases of doubt
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for tae DMI 2000
Summary of Contents for tae DMI 2000
- Page 1 As with any form of electrical equipment, there is always a risk involved in the handling of electrical machinery. The greatest care must always be exercised during installation and maintenance, and it is recommended this be carried out by authorized personnel. TAE Antriebstechnik • Raiffeisenstraße 10 • D-61250 Usingen The German text applies in cases of doubt...
- Page 2 Voltmeter Technical data Supply voltage: 230V 50/60 Hz or 24VDC (other voltages on request) Max. power consumption: Display: 14mm 7-Segment LED-rot Decimal point: programable with jumper (external) Meßeingang: 0-20 VDC or 0-500VDC Display: A, m/min, m, UPM, %, L/sec (other on request) Anschlußart: Screw terminals (back side) Weight:...
- Page 3 Voltmeter Adjustment of the DMI 2000 Input voltage by 199,1999, 999 und 9990 all values in volt Display 199 and 1999 999 and 9990 Potentiometer adjustment fully ccw fully clockwise fully ccw fully clockwise Volt DC I - V 21,7...
- Page 4 Voltmeter Dimensions All dimensions in millimeters BA VOL2000-e.PDF PT Stand 28.09.2012 Änd.-Nr. 00002 Misprints and technical changes reserved...
