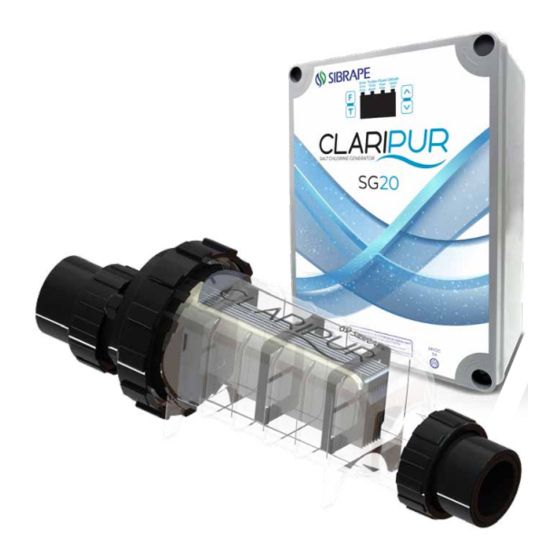

SIBRAPE CLARIPUR SG20 User Manual

SIBRAPE CLARIPUR SG20 User Manual

Chlorine generator
Hide thumbs Also See for CLARIPUR SG20:
Table of Contents

Advertisement

Available languages

Available languages

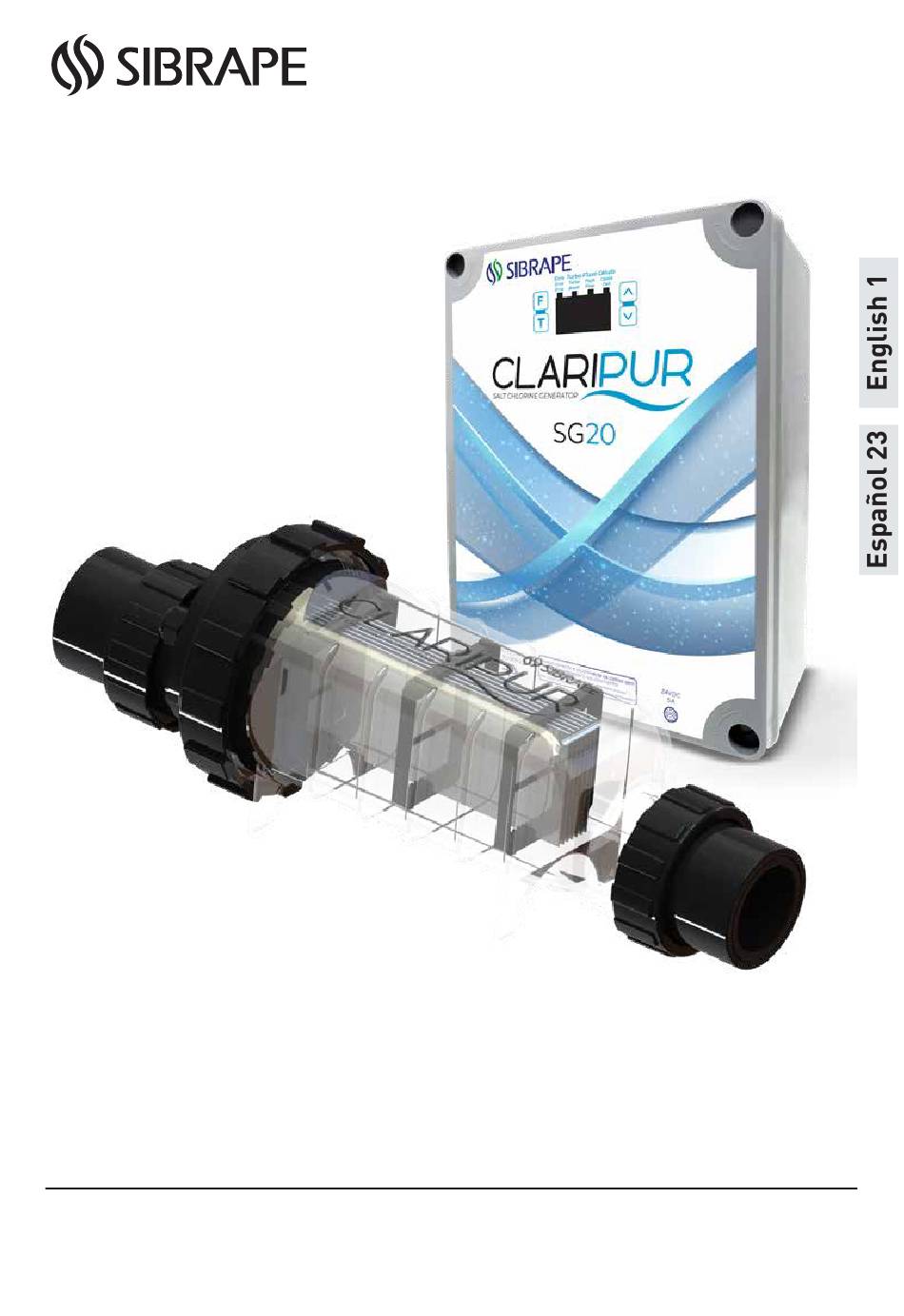

CHLORINE GENERATOR
CLARIPUR SG20 E SG35
USER'S GUIDE

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLARIPUR SG20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SIBRAPE CLARIPUR SG20

  • Page 1 CHLORINE GENERATOR CLARIPUR SG20 E SG35 USER’S GUIDE...
  • Page 2 User’s Guide...
  • Page 3: Table Of Contents

    Table Of Contents Important Warnings and Safety Precautions................4 Introduction..........................6 Technical features Chlorine Generator CLARIPUR SG20.............7 Technical features Chlorine Generator CLARIPUR SG35.............7 Installation Instructions......................8 Spare parts...........................11 Dimensions..........................12 Indication Display.........................13 Settings..........................15 Features..........................15 Pool Water Chemistry, Conditions and Precautions............16 Cleaning the Blades with Acid.....................19 Unit of Measurement - Temperature..................19...
  • Page 4: Important Warnings And Safety Precautions

    Installers, pool operators and pool owners should read these warnings and all instructions contained in this manual before installing, operating or servicing equipment. Claripur SIBRAPE Chlorine Generators are intended for use in commercial and residential swimming pools. Most countries have local regulations governing the construction, installation and operation of residential and/or public swimming pools, spas and hot tubs.
  • Page 5 Important Warnings and Safety Precautions RISK OF ELECTRIC SHOCK OR ELECTROCUTION CHLORINE GENERATORS REQUIRE HIGH VOLTAGE AND CURRENT WHICH CAN CAUSE ELECTRIC SHOCK, BURNS OR DEATH. Always disconnect electrical power from the equipment before performing maintenance. Failure to do so could result in accident, serious injury, or accidental death from electric shock.
  • Page 6: Introduction

    Follow Chemical Agent Manufacturer’s Instructions. Introduction Thank you for choosing a Sibrape product. To ensure correct and efficient use, it is essential to read this manual completely for a good understanding of its operations, before putting it into operation.
  • Page 7: Technical Features Chlorine Generator Claripur Sg20

    Technical Features Chlorine Generator CLARIPUR SG20 Feature Parameter: Chlorine Generation 20g/H Water Salinity: 2800 – 5000 ppm Flow Detection: Turbine type sensor Power Voltage: Full range 110~220VAC Power: 120 W Piping Diameter: 2“ Current in the cell: Cell Voltage: Minimum Flow:...
  • Page 8: Installation Instructions

    If any irregularity has been found, such as lack of components or damage to the equipment, immediately notify the person responsible for the transport and Sibrape. Electrical Installation The electrical installation must be carried out by a qualified professional and in accordance with current local legislation and Technical Standards.
  • Page 9 Installation Instructions ELECTRICAL GENERAL BOARD 220V NETWORK The Chlorine Generator is installed after Residual Differential Device and Overload Protection Circuit Breaker. There is no need to connect the Chlorine Generator together with the pump, as the Chlorine Generator has a flow sensor that makes it turn on with the detection of the passage and water.
  • Page 10 1. DIMENSÕES EM MILÍMETROS, SALVO INDICAÇÕES Arquivo: 002_G.C_2020_REV 08_Montagem do conjunto G.C CONTRÁRIAS; 2. VISTAS DE DESENHO DISTRIBUÍDAS Este desenho é de propriedade da Sibrape. A Reprodução, uso ou divulgação a terceiros não deve CONFORME 1° DIEDRO. Escala: ser feita sem prévia autorização .
  • Page 11: Spare Parts

    Esse código contem tudo da célula de 15g, inclusive as conexões para os tubos CONTRÁRIAS; 2. VISTAS DE DESENHO DISTRIBUÍDAS Escala: Este desenho é de propriedade da Sibrape CONFORME 1° DIEDRO. ser feita sem prévia autorização . CLARIPUR CELL NUT This is the code for the larger nut, which secures the...
  • Page 12: Dimensions

    1. DIMENSÕES EM MILÍMETROS, SALVO INDICAÇÕES Arquivo: 002_G.C_2020_REV 08_Montagem do conjunto G.C CONTRÁRIAS; 2. VISTAS DE DESENHO DISTRIBUÍDAS Este desenho é de propriedade da Sibrape. A Reprodução, us Escala: CONFORME 1° DIEDRO. ser feita sem prévia autorização . User’s Guide...
  • Page 13: Indication Display

    Dimensions 228,50 93,50 181,50 Erro Erro Turbo Turbo Fluxo Fluxo Célula Célula Error Error Turbo Turbo Flujo Flujo Celda Celda Error Error Boost Boost Flow Flow Cell Cell SALT CHLORINE GENERATOR SALT CHLORINE GENERATOR Nunca conecte e desconecte os cabos sem Nunca conecte e desconecte os cabos sem 110-220V AC 110-220V AC...
  • Page 14 Indication Display Alphanumeric Indication To switch between screens, simply press the F key quickly. It switches between menus: •GENERATION Indicates the percentage that is programmed for chlorine generation, which can be: 100%, 80%, 60%, 40% and 20%. And it is on this screen that the percentage of production is adjusted, using the keys. Adjust generation between 20% up to 100% •BOOST...
  • Page 15: Settings

    Indication Display ERROR INDICATION CODE ERROR CAUSE The cell may be short circuited. Short Circuit in Cell Excess salt. Electrical connection between controller and cell, broken. Open Cell Little salt in the water. Disconnected cell. Electronic controller is overheated. Controller Overheating Very hot environment.
  • Page 16: Pool Water Chemistry, Conditions And Precautions

    Characteristics Thermal protection In order to protect and maintain product quality, the Sibrape Claripur Chlorine Generator monitors the water temperature, so that, if the water reaches 64,4°F, the chlorine generation will change to 40% of its capacity and the water reaches 57,2°F the generator will operate at 20% of its capacity.
  • Page 17 Pool Water Chemistry, Conditions and Precautions Covered Pools When using the Chlorine Generator in indoor pools and/or vinyl lines, less chlorine is required. It is recommended to decrease chlorine production while the pool is covered. What kind of salt to use The purer the salt, the better the performance and duration of the Chlorine Generator.
  • Page 18 Pool Water Chemistry, Conditions and Precautions Table 1 - Volume of salt per amount of water 1000 1250 1500 1750 2000 2250 2500 3000 PPM > Liters \/ salt needed in pound 12000 92,59 85,98 79,36 72,75 66,13 59,52 52,91 46,29 39,68 33,06...
  • Page 19: Cleaning The Blades With Acid

    Cleaning the Blades with Acid If the Chlorine Generator blades show a tendency to “scale”, it is recommended that every (2) two months the Chlorine Generator blades are removed and inspected for scale formation and/or traces on the blades. Some filters allow traces to pass through the Chlorine Generator, possibly settling between the Chlorine Generator blades.
  • Page 20: Technical Assistance

    Always demand original parts, remembering that the warranty for parts and labor for repairs carried out will be 90 days. Contacts Company Data: CORPORATE NAME - SIBRAPE IND. E COM. DE EQUIP. AQUA. E DE FILTRAGEM LTDA. CNPJ - 29.596.862/0001-00 Address: 1150, Dr. Elpídio de Almeida Campos St. | Distrito Industrial Prefeito Luiz Roberto Jabali Ribeirão Preto/SP | ZIP Code: 14072-105...
  • Page 21: Warranty Terms

    Warranty Terms A SIBRAPE IND. E COM. DE EQUIP. AQUA. E DE FILT. LTDA. assures the owner/consumer of this equipment, a total warranty of 12 (twelve) months, consisting of: 275 days of contractual warranty, in addition to the 90 days of legal warranty, from the date of delivery of the product, as expressed in the purchase invoice.
  • Page 22 Manual del usuario...
  • Page 23 GENERADOR DE CLORO CLARIPUR SG20 E SG35 MANUAL DEL USUARIO Manual del usuario...
  • Page 24 Manual del usuario...
  • Page 25 TABLA DE CONTENIDO Advertencias importantes y precauciones de seguridad.............26 Introducción.........................28 Características Técnicas Generador de Cloro CLARIPUR SG20.........29 Características Técnicas Generador de Cloro CLARIPUR SG35.........29 Instrucciones de instalación....................30 Piezas de reemplazo......................33 Dimensiones..........................34 Pantalla de indicación......................36 Ajustes..........................37 Características........................37 Química del agua de la piscina, condiciones y precauciones..........38 Limpieza de las cuchillas con ácido..................41...
  • Page 26: Advertencias Importantes Y Precauciones De Seguridad

    Advertencias Importantes Y Precauciones De Seguridad La instalación incorrecta de este equipo podría provocar lesiones personales graves o incluso la muerte. Los instaladores, operadores de piscinas y propietarios de piscinas deben leer estas advertencias y todas las instrucciones contenidas en este manual antes de instalar, operar o reparar el equipo.
  • Page 27 Advertencias Importantes Y Precauciones De Seguridad RIESGO DE DESCARGA ELÉCTRICA O ELECTROCUCIÓN LOS GENERADORES DE CLORO REQUIEREN ALTO VOLTAJE Y CORRIENTE QUE PUEDEN CAUSAR DESCARGAS ELÉCTRICAS, QUEMADURAS O LA MUERTE. Desconecte siempre la alimentación eléctrica del equipo antes de realizar el mantenimiento.
  • Page 28: Introducción

    Siga las instrucciones del fabricante del agente químico. Introducción Gracias por elegir un producto Sibrape. Para asegurar un uso correcto y eficiente, es imprescindible la lectura completa de este manual para una buena comprensión de sus operaciones, antes de ponerlo en funcionamiento.
  • Page 29: Características Técnicas Generador De Cloro Claripur Sg20

    Características Técnicas Generador de Cloro CLARIPUR SG20 Rasgo: Parámetro: Generación de Cloro: 20g/H Salinidad del agua: 2800 – 5000 ppm Detección de flujo: Sensor tipo turbina Voltaje de alimentación: Rango 110~220VAC Energía: 120 W Diámetro de tubería: 2” Corriente en la celda: Voltaje de celda: Flujo mínimo:...
  • Page 30: Instrucciones De Instalación

    Si se ha encontrado alguna irregularidad, como falta de componentes o daños en el equipo, notifique inmediatamente al responsable del transporte y a Sibrape. Instalacion electrica La instalación eléctrica debe ser realizada por un profesional calificado y de acuerdo con la legislación local y...
  • Page 31 Instrucciones de instalación VISIÓN DE CONJUNTO El generador de cloro se instala después de dispositivos de protección contra sobretensiones y el disyuntor de protección contra sobrecarga. No es necesario conectar el Generador de Cloro junto con la bomba, ya que el Generador de Cloro tiene un sensor de flujo que lo hace encender con la detección del paso y el agua.
  • Page 32 1. DIMENSÕES EM MILÍMETROS, SALVO INDICAÇÕES Arquivo: 002_G.C_2020_REV 08_Montagem do conjunto G.C CONTRÁRIAS; 2. VISTAS DE DESENHO DISTRIBUÍDAS Este desenho é de propriedade da Sibrape. A Reprodução, uso ou divulgação a terceiros não deve CONFORME 1° DIEDRO. Escala: ser feita sem prévia autorização .
  • Page 33: Piezas De Reemplazo

    Esse código contem tudo da célula de 15g, inclusive as conexões para os tubos CONTRÁRIAS; 2. VISTAS DE DESENHO DISTRIBUÍDAS Escala: Este desenho é de propriedade da Sibrape CONFORME 1° DIEDRO. ser feita sem prévia autorização . TUERCA DE LA CELDA CLARIPUR Este es el código de la tuerca más 08070183 grande, que asegura la cubierta al cuerpo de la celda.
  • Page 34: Dimensiones

    1. DIMENSÕES EM MILÍMETROS, SALVO INDICAÇÕES Arquivo: 002_G.C_2020_REV 08_Montagem do conjunto G.C CONTRÁRIAS; 2. VISTAS DE DESENHO DISTRIBUÍDAS Este desenho é de propriedade da Sibrape. A Reprodução, us Escala: CONFORME 1° DIEDRO. ser feita sem prévia autorização . Manual del usuario...
  • Page 35 Dimensiones 228,50 93,50 181,50 Erro Erro Turbo Turbo Fluxo Fluxo Célula Célula Error Error Turbo Turbo Flujo Flujo Celda Celda Error Error Boost Boost Flow Flow Cell Cell SALT CHLORINE GENERATOR SALT CHLORINE GENERATOR 110-220V AC 110-220V AC Nunca conecte e desconecte os cabos sem Nunca conecte e desconecte os cabos sem 24VDC 24VDC...
  • Page 36: Pantalla De Indicación

    Pantalla de indicación Indicación alfanumérica TPara cambiar entre pantallas, simplemente presione la tecla F rápidamente. Cambia entre los menús: •GENERACION Indica el porcentaje que se programa para la generación de cloro, que puede ser: 100%, 80%, 60%, 40% y 20%. Y es en esta pantalla donde se ajusta el porcentaje de producción, mediante las teclas.
  • Page 37: Ajustes

    Pantalla de indicación INDICACIÓN DE ERROR CÓDIGO ERROR SOLUCIÓN La celda puede estar cortocircuitada. Cortocircuito en celda Exceso de sal. Conexión eléctrica entre el controlador y la celda, rota. Celda Abierta Poca sal en el agua. Celda desconectada. El controlador electrónico está sobrecalentado. Sobrecalentamiento Ambiente muy caluroso.
  • Page 38: Química Del Agua De La Piscina, Condiciones Y Precauciones

    Características Protección térmica Para proteger y mantener la calidad del producto, el Generador de Cloro Claripur monitorea la temperatura del agua, de manera que, si el agua llega a 18°C, la generación de cloro cambiará al 40% de su capacidad y el agua llega a 14°...
  • Page 39 Química del agua de la piscina, condiciones y precauciones Piscinas Cubiertas Cuando se utiliza el generador de cloro en piscinas cubiertas y/o líneas de vinilo, se requiere menos cloro. Se recomienda disminuir la producción de cloro mientras la piscina esté cubierta. Que tipo de sal usar Cuanto más pura sea la sal, mejor será...
  • Page 40 Química del agua de la piscina, condiciones y precauciones Tabla 1 - Volumen de sal por cantidad de agua PPM > 1000 1250 1500 1750 2000 2250 2500 3000 Litros \/ sal necesaria en kg 12000 14000 16000 18000 20000 22000 24000 26000...
  • Page 41: Limpieza De Las Cuchillas Con Ácido

    Limpieza de las cuchillas con ácido Si las aspas del generador de cloro muestran una tendencia a “incrustarse”, se recomienda que cada (2) dos meses se retiren las aspas del generador de cloro y se inspeccionen para detectar la formación de escamas y/o rastros en las aspas.
  • Page 42: Asistencia Técnica

    90 días. Contactos Nombre De La Empresa: CORPORATE NAME - SIBRAPE IND. E COM. DE EQUIP. AQUA. E DE FILTRAGEM LTDA. CNPJ - 29.596.862/0001-00 Comuníquese a: Calle Dr. Elpídio de Almeida Campos 1150 | Distrito Industrial Prefeito Luiz Roberto Jabali Ribeirão Preto/SP | ZIP Code: 14072-105...
  • Page 43: Términos De Garantía

    Términos de Garantía A SIBRAPE IND. E COM. DE EQUIP. AQUA. E DE FILT. LTDA. asegura al propietario/consumidor de este equipo, una garantía total de 12 (doce) meses, consistente en: 275 días de garantía contractual, además de los 90 días de garantía legal, a partir de la fecha de entrega del producto, conforme expresa en la factura de compra.
  • Page 44 Manual del usuario...
  • Page 45 Manual del usuario...
  • Page 46 Rua Dr. Elpídio de Almeida Campos, 1150 | Distrito Industrial Prefeito Luiz Roberto Jabali Ribeirão Preto - SP | CEP: 14072-105 Tel. Brasil: +55 (16) 2101-7000 ou 0800 727 37 37 www.sibrape.com.br...
