HeathCo Heath Zenith 7745 Manual

This package includes (Style of door sensor and chime may vary from illustration):
Model
7745
This chime requires 2 "C" alkaline batteries (not included). In typical use, alkaline
batteries will last up to one year.
Figure 1
Figure 2
Figure 3
© 2016 HeathCo LLC
Wireless
chime
✔
WARNING: To prevent possible SERIOUS
INJURY or DEATH:
• NEVER allow small children near batteries.
• If battery is swallowed, immediately notify
doctor.

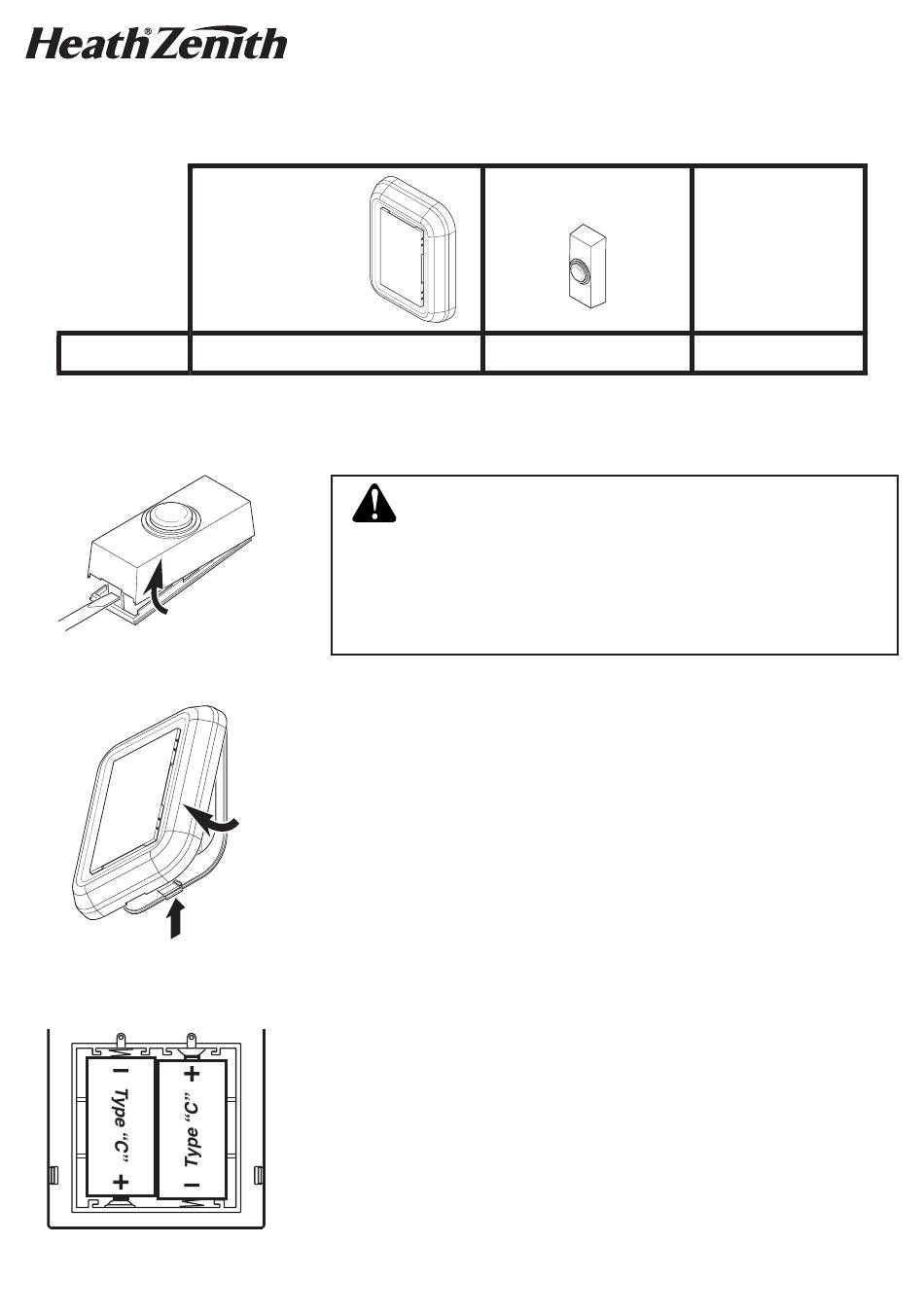

1. Remove orange battery tab from push button.
Remove back of case by pushing in tab on bottom
with a small screwdriver (see Figure 1). Remove
orange battery tab.
2. Open chime case. Remove screw on rear of chime.
Press in catch on bottom of chime and lift the case
open (see Figure 2).
3. Install 2 alkaline "C" batteries. Make sure batter-
ies are oriented properly (see Figure 3).
4. Snap cover onto chime base. Align top edge of
case with top of back plate. Rotate bottom of case
toward back plate and snap into position. Insert screw
removed in step 2 into the rear of the chime and tighten
securely.
5. Test range. Temporarily position chime and push
button where you want them mounted. Press push
button to verify chime and push button work prop-
erly. If chime does not sound, see Troubleshooting.

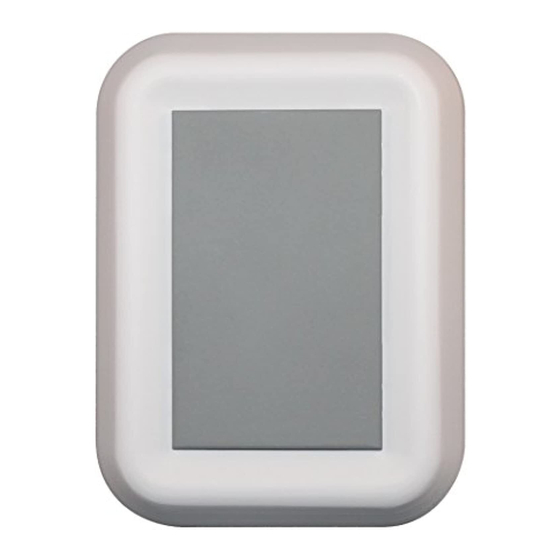

Wireless Chime

Wireless push
button
✔
Hardware
pack
✔
