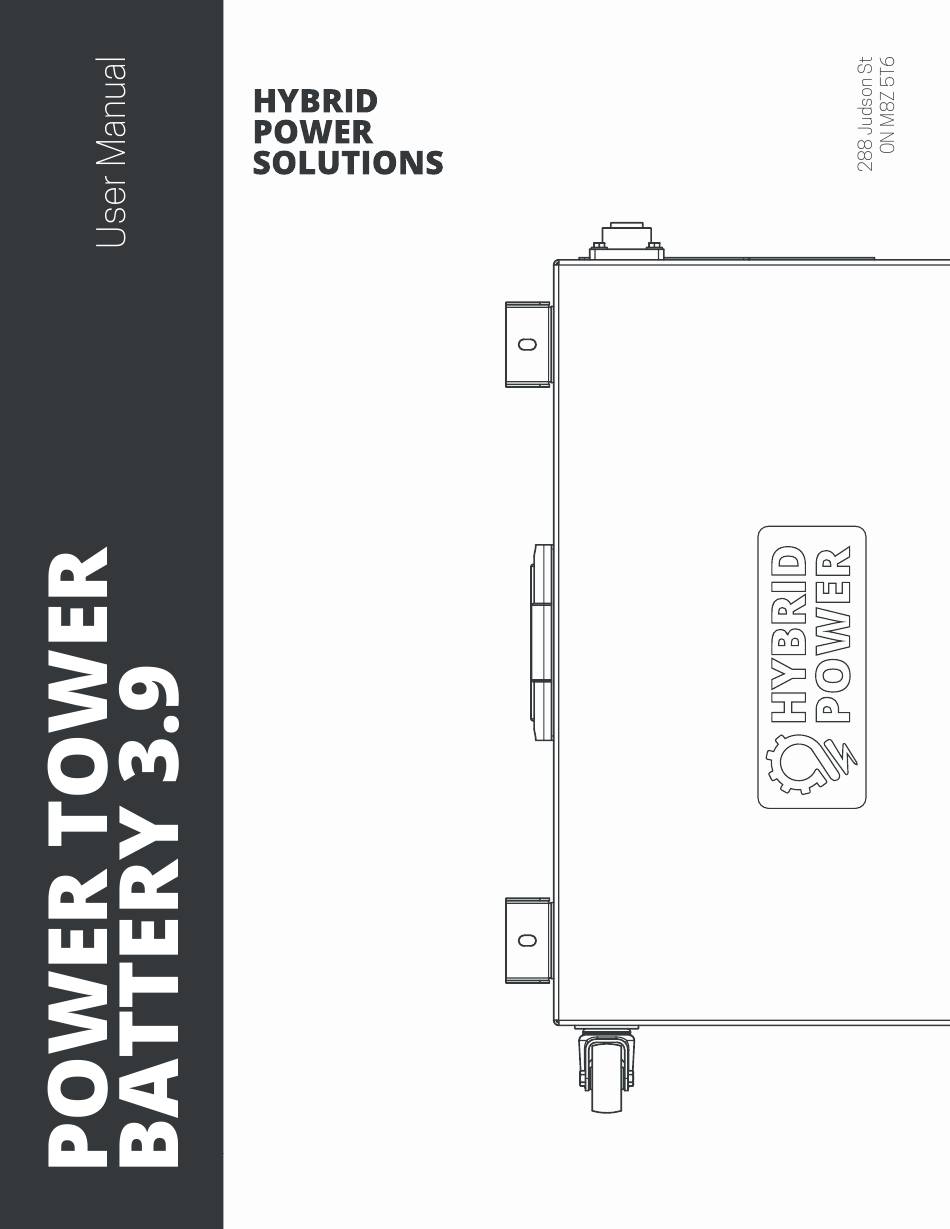

- Page 1 Manufactured by: hybridps.ca Batt Pack Energy - User manual - English...
- Page 2 Batt Pack Energy - User manual - English...
- Page 3 SHOCK HAZARD: Possible shock or death if used improperly, when damaged or used by untrained personnel. FLAMMABLE HAZARD: Lithium ion batteries contain flammable liquid electrolyte that may vent, ignite and produce sparks when subjected to high temperatures (> 150 °C (302 °F)), when damaged or abused (e.g., mechanical damage or electrical overcharge).
- Page 4 MANUAL INDEX Power Tower Battery 3.9 - User manual - English...
- Page 5 CONTENT PAGE Overview Safety Information Configuration Commissioning / Seasonal storage process Operation Transportation, maintenance, and temperatures guide Troubleshoot Warranty Battery Integration...
- Page 6 Power Tower Battery 3.9 - User manual - English...
- Page 7 1.1. Product Description Thank you for choosing the Power Tower Battery from Hybrid Power Solutions (HPS). We hope you enjoy and use this battery to its full potential. Please unpack your battery carefully and check the delivery for completeness and obvious damage.
- Page 9 Critical Errors: If an error message is present, please contact HPS support for reset or repair. If internal components are heard/ believed to be loose inside/ rattling, please call HPS for technical support. Power Tower Battery 3.9 - User manual - English...
- Page 11 10,000 cycles (charging CC/CV @0.3C & discharging CC @0.3C, 70 DOD, 25°C +/-2°C 70% of rated capacity) L18.1in x W14.2in x H10.63in DIMENSIONS (L460mm x W360mm x H270mm) UN38.3, ESA inspected to CSA Standards CERTIFICATIONS (SPE-1000) Power Tower Battery 3.9 - User manual - English...
- Page 13 0.1V of each other or as close as possible. Unbalanced batteries will eventually rebalance but performance may be limited until all batteries are balanced. HPS recommends balancing all batteries no matter of the voltage if possible. Power Tower Battery 3.9 - User manual - English...
- Page 14 DSCH on the other. Wait until the amperage transfer between batteries is less than 1A before proceeding. 6. Turn ON Batt #3 and repeat step and 6 until all batteries are connected. 7. Turn ON Power Tower Power Tower Battery 3.9 - User manual - English...
- Page 15 Bus Connection: Connect the positive and negative terminals to their own respective busses. In this configuration, all wire lengths from battery terminal to bus must be identical in length. Power Tower Battery 3.9 - User manual - English...
- Page 16 4. Store batteries in location that does not fall outside specifications including in areas where temperatures could fall below -20 °C Periodically check battery voltage by turning batteries ON with no load connected. Ensure voltage is above 50V. If below, batteries should be recharged. Power Tower Battery 3.9 - User manual - English...
- Page 18 Switch : Master ON/OFF switch. Should only be operated with limited or no load or in emergency situations. 5.1.1 LCD Display V: Battery voltage SOC: State of Charge (battery percentage) I: Instantaneous Battery Current STBY: Battery Status + Charging Discharging - Discharging Charging Standby Error Power Tower Battery 3.9 - User manual - English...
- Page 19 Never charge above 75A. To achieve advertised life cycle, each battery pack should only be charged at 20A. Ensure to follow integration programing guidelines if using this battery with anything other than a Power Tower. Power Tower Battery 3.9 - User manual - English...
- Page 21 Always charge the Power Tower Battery in temperatures above 0 °C. Charging below this will result in the system shutting down and protecting itself. Note that performance may be affected in temperatures under 0 °C. Run time can be reduced as well as available power. Power Tower Battery 3.9 - User manual - English...
- Page 23 Temperature is above specified operating PROT: High Temperature temperature. Allow the battery to cool. Internal issue. Turn the system off and let sit for Critical Error 15min. If problem persists, contact HPS immediately Power Tower Battery 3.9 - User manual - English...
- Page 25 8.1. Manufacturer’s Warranty Coverage All Power Tower Batteries supplied by Hybrid Power Solutions are tested for reliability and performance before delivery for correct function and condition. We grant no warranty or liability for defects and losses that occur during the use by the customer or the shipment of the unit.
- Page 26 • The defect was subject to abuse, improper use not conforming to product manual instructions, or environment conditions more severe than those specified in the manual operating condition and user operation. • Used with an improper charger, inverter or load. Power Tower Battery 3.9 - User manual - English...
- Page 28 53.6V Max Float Current* Battery Temperature Compensation *This value should be multiplied by the number of Power Tower Batteries in parallel (up to the maximum provided by the inverter or charger) Power Tower Battery 3.9 - User manual - English...
- Page 29 Batt Capacity: 78Ah b. Max Charge Rate&: 18% (or 25A) c. Charge Cycle: 2StgNoFloat d. Recharge Volts: 50.5V e. Absorb Time: 1h f. DisChglmax Timer: 300 sec Power Tower Battery 3.9 - User manual - English...
- Page 30 Batt Capacity: 78Ah g. Max Charge Rate: 25A h. Charge Cycle: 3 Stage i. Recharge Voltage: 50.5V j. Absorb Time: 2h k. Default Batt Temp: Warm l. Aux Settings: Not Used Power Tower Battery 3.9 - User manual - English...
- Page 31 Power Tower Battery 3.9 - User manual - English...
