Summary of Contents for intwine connect ICG-200

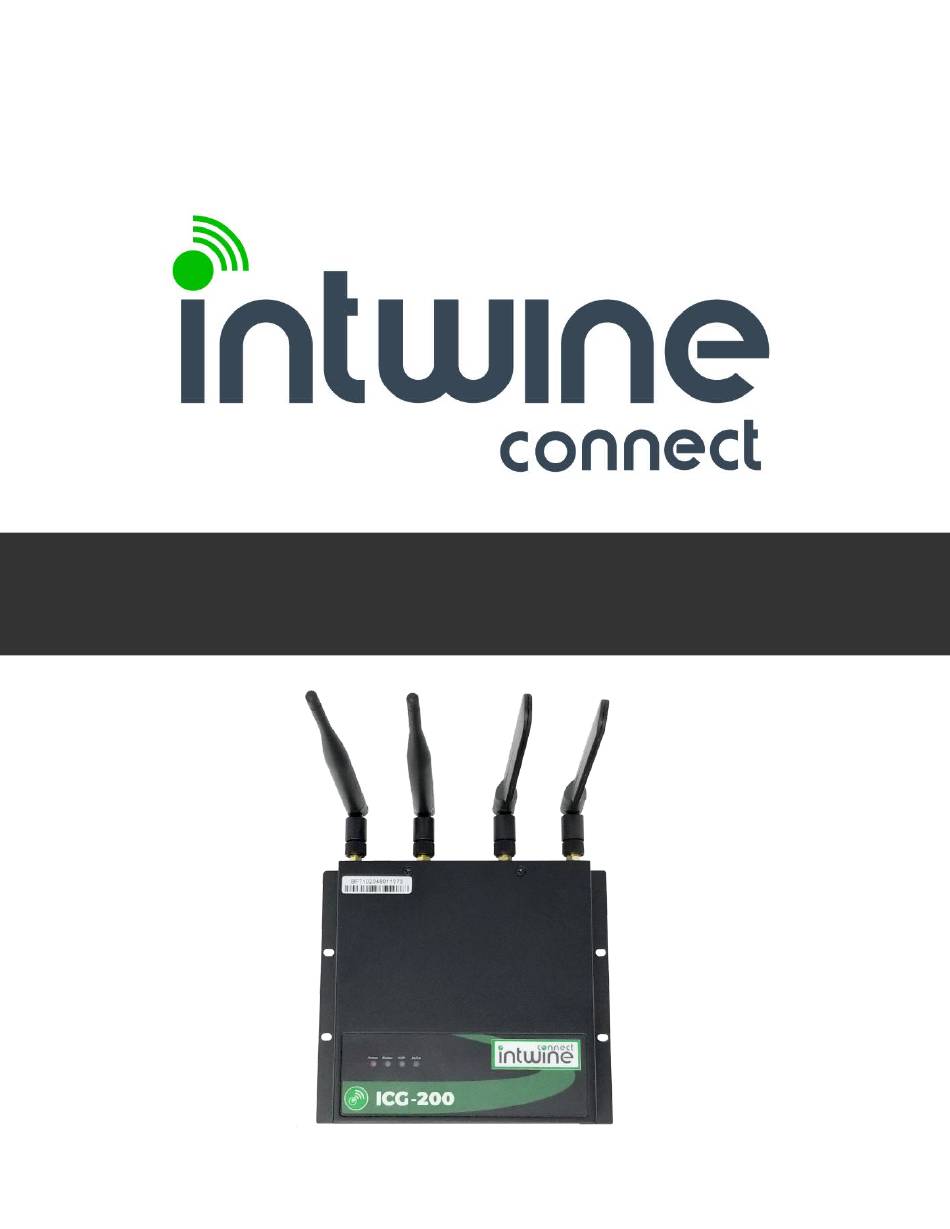

- Page 1 Intwine Connected Gateway 200 [ICG-200] User Guide...
-
Page 2: Table Of Contents
Accessing the Configuration Pages Default Settings Changing Passwords Network Configuration WiFi Ethernet Cellular WAN Priority Port Forwarding LAN Clients Administration System Security Firmware Logs Diagnostics ADDITIONAL RESOURCES CERTIFICATIONS, LICENSES AND WARNINGS ©2021 Intwine Connect. All Rights Reserved. +1(216)314-2922 info@intwineconnect.com intwineconnect.com... -
Page 3: Introduction
The entire solution is developed, configured, billed, and supported by Intwine and also includes a management portal for ongoing maintenance, deployment, and support. Package Contents Intwine Connected Gateway ICG-200 Router ● Embedded 4G LTE modem ●... -
Page 4: Remote Management Portal
Cellular online/offline status • • Data usage monitoring • Network health indicators • Advanced troubleshooting tools • Remote firmware upgrades To create an account and register your ICG-200 sign up at: rmp.intwineconnect.com ©2021 Intwine Connect. All Rights Reserved. +1(216)314-2922 info@intwineconnect.com intwineconnect.com... -
Page 5: Hardware Overview
ICG-200 USER GUIDE HARDWARE OVERVIEW The ICG-200 includes all necessary hardware and accessories to deploy cellular connectivity in any home, office, or building with adequate cellular coverage. ICG-200 features: Embedded 4G LTE modem and SIM card ● 802.11b/g/n/ac ● (2) 10/100/1000 Ethernet ports ●... - Page 6 ICG-200 USER GUIDE 1) The ICG-200 includes two high gain cellular antennas that are easy to attach and adjust for maximum reception. Warning: Antennas are only to be replaced by certified professionals. DO NOT use any external antennas that were not provided by Intwine Connect, LLC and installed by a certified professional.
-
Page 7: Getting Started
ICG-200 USER GUIDE GETTING STARTED Wall Hanging Installation The ICG-200 has built in mounting tabs that can be used for wall/panel mount installations. The hole dimensions and locations are shown below. Power Installation Plug the 4 pin mini-DIN connector into the port on the front of the system. The mini-DIN pinout is shown below. -
Page 8: Led Indicator Guide
3) Tighten the ground nut LED Indicator Guide The LED indicators on the top panel of the ICG-200 are used to visually communicate the status of the router. The below chart can be used to determine it’s state and cellular connection. -
Page 9: The Label
ICG-200 USER GUIDE The Label A variant of the above pictured label ships on every production ICG-200 with both standard information and information that is specific to each individual Gateway. The label is full of pertinent information including the router’s FCC ID, UL number, MAC address, serial numbers, etc. -
Page 10: Local Configuration App
WiFi password shown on the label. Accessing the Configuration Pages For most users, the ICG-200 can be used directly out of the box as a WiFi/Ethernet to 4G LTE router and does not require any advanced configuration changes. For those that require custom changes, such as changing passwords, changing WAN/LAN settings, or accessing advanced networking features, you will need to log into the configuration pages. - Page 11 2) Enter admin as the username and the default password found on the label, then click the LOGIN button. It may take up to 30 seconds to login. 3) You are now able to configure your ICG-200! You should now be on the System Information screen seen below. This screen shows pertinent ICG-200 settings, allows users to browse to advanced configuration settings, and shows real time data usage.
-
Page 12: Default Settings
● Default Settings Out of the box, the ICG-200 is configured as a WiFi/Ethernet LAN to 4G LTE WAN router. All default usernames and passwords are printed on the label that can be seen on the bottom of the ICG-200. Devices can be connected to the router to access the Internet using these Wi-Fi credentials or by plugging in via Ethernet. - Page 13 Change the username and password using the text boxes provided. NOTE: Changes to the admin username and password will keep you logged in, but will change upon logging out. ©2021 Intwine Connect. All Rights Reserved. +1(216)314-2922 info@intwineconnect.com intwineconnect.com...
-
Page 14: Network Configuration
For those users that require more complex configurations, the below sections show the advanced settings of the ICG-200 and best practices to ensure appropriate configuration. All headings refer to a specific tab in the Network Configuration page and explain its function in detail. -
Page 15: Ethernet
Lease Time: Configurable by hour (default = 12 hours) ● New DHCP Reservations can be added or removed. ● Changes will be applied once the Save Changes button is pressed. Use care when ● changing these settings. ©2021 Intwine Connect. All Rights Reserved. +1(216)314-2922 info@intwineconnect.com intwineconnect.com... -
Page 16: Cellular
Allows users to choose primary and secondary WAN connections. For example, in a typical cellular backup scenario, a user will want to configure Ethernet as the Primary WAN (priority 1) and Cellular as the backup WAN (priority 2), in case of a network outage. ©2021 Intwine Connect. All Rights Reserved. +1(216)314-2922 info@intwineconnect.com... -
Page 17: Port Forwarding
80 and 443 to your device's web server as shown below: Inbound Inbound Ports Protocol Target IP Target Port Interfaces or ICMP Types Addresses 8080 8443 80, 443 192.168.10.61 ©2021 Intwine Connect. All Rights Reserved. +1(216)314-2922 info@intwineconnect.com intwineconnect.com... -
Page 18: Lan Clients
System General Information: Administration Account: Change administrative username and password ● System Settings: Change time zone and NTP server. ● ©2021 Intwine Connect. All Rights Reserved. +1(216)314-2922 info@intwineconnect.com intwineconnect.com... -
Page 19: Security
ICG-200 USER GUIDE Security The Security tab allows you to customize additional security options on the ICG-200. You can disable the use of USB ports, the HDMI interface, or prevent the local configuration webapp from being accessed via the cellular network. -
Page 20: Logs
The Diagnostics tab allows users to conduct tests to help determine that their system is properly working or to isolate and resolve problems. Users can make the ICG-200 ping a specific IP address or URL as well as run a trace route. These tests can allow you to resolve network connectivity problems. -
Page 21: Additional Resources
Consult the dealer or an experienced radio or television technician for help. ● Changes or modifications not expressly approved by Intwine Connect, LLC could void the user’s authority to operate the product. RSS-GEN COMPLIANCE: This device complies with RSS-GEN of the Industry Canada Rules. - Page 22 NOTE – The ICG-200 was not designed for safe in-vehicle use and, as such, it should not be used in any moving vehicle by the operator. In some jurisdictions, use of the ICG-200 device while driving or operating a vehicle constitutes a civil and/or criminal offense.
