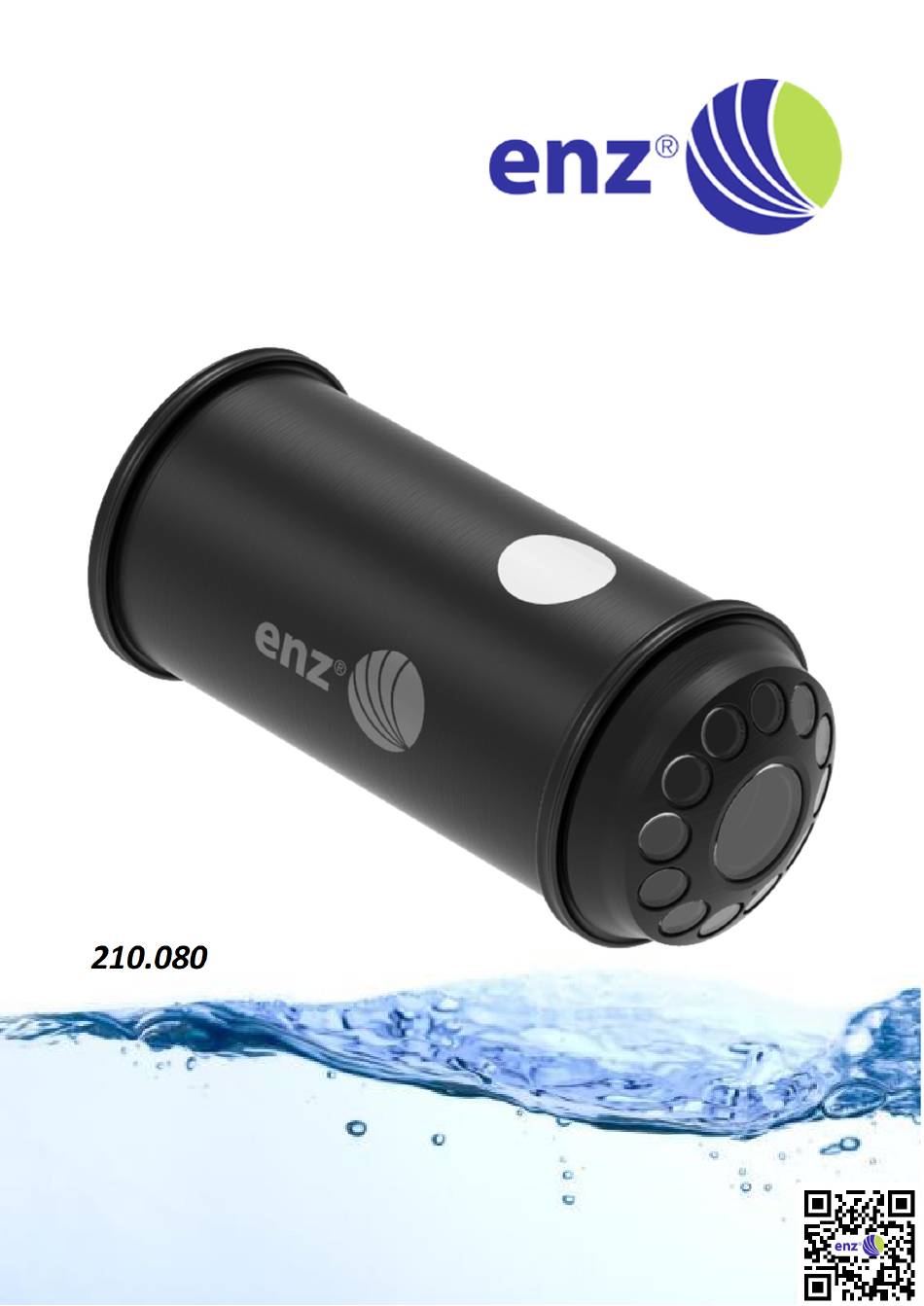

- Page 1 Enz® Camera 210.080 Operating instructions English March 21| Version 1.3 Date 15.03.2021 Version 1.3 ©2021 enz® technik ag Page 1 of 28...
-
Page 2: Table Of Contents
Responsibilities of the operating personnel ..........14 2.5.3 Responsibilities of the service / maintenance personnel ......15 Safety instructions ..................15 General safety instructions ..............15 2.6.2 Section-related safety instructions ............15 2.6.3 Embedded safety instructions ...............15 Page 2 of 28 ©2021 enz® technik ag Date 15.03.2021 Version 1.3... - Page 3 Product-specific dangers ................16 Technical data ....................18 Enz® Camera ....................18 Enz® Charging station .................18 System description ..................19 Overview of all components of the Enz® Camera system ......19 Overview Enz® Camera ................20 Operation....................... 22 Charging the Enz® Camera .................22 5.1.1 Procedure ....................22...
-
Page 4: Preface
The operating instructions should be made available to the operating personnel at all times. If lost, a copy can be requested from your local dealer or direct from the manu- facturer. The operating instructions can also be printed out online. Page 4 of 28 ©2021 enz® technik ag Date 15.03.2021 Version 1.3... -
Page 5: Introduction
Operating instructions Introduction These operating instructions are valid for the Enz® Camera System consisting of the following components: Designation Article number Enz® Camera 210.080 Enz® Magnet 210.0801 Enz® Charging station 291.0801 Table 1: Validity of these operating instructions The type plate is attached to the housing of the Enz® Camera. -
Page 6: General Information
Copyright All rights reserved. These operating instructions may neither be partially nor com- pletely reproduced or converted in an electronically of machine-readable form with- out the written consent of Enz Technik AG. 1.3.3 Documentation maintenance and storage To ensure that the operating instructions are complete and up to date at all times, please do not remove separate documents. -
Page 7: Target Group
Designates dangers which, if disregarded, may result in death, severe injuries or invalidity! CAUTION! Designates dangers which, if disregarded, may result in injuries and significant property, financial or environmental damage! Page 7 of 28 Date 15.03.2021 Version 1.3 ©2021 enz® technik ag... -
Page 8: Other Symbols And Marks
A risk assessment has been carried out for the system described in accordance with the Product Safety Act. The remaining residual risks are listed in these operating in- structions. Page 8 of 28 ©2021 enz® technik ag Date 15.03.2021 Version 1.3... -
Page 9: Eu Declaration Of Conformity
■ EN ISO 12100:2010: Safety of Machinery –General Design Principles - Risk Assessment and Risk Minimisation Enz® technik ag Christoph Lendi Managing Director Figure 2: EU Declaration of Conformity Page 9 of 28 Date 15.03.2021 Version 1.3 ©2021 enz® technik ag... -
Page 10: Information On Safety
Information on safety Operating instructions The Enz® Camera System is determined for the following use and applications: The recording of videos and images during and after cleaning sewer and waste water pipes. The wireless transmission of the recordings to a digital end device (smartphone, ... - Page 11 Operating instructions Information on safety Use of the system by children. Use of impermissible Enz® Charging station. Operation if product safety is no longer guaranteed, e.g. catastrophic events (fire, flooding, lightning strike, etc.). Qualified personnel are persons that are authorised to carry out the...
-
Page 12: Qualifications Of The Personnel
2.4.5 Spare parts To ensure safe operation, only spare parts specified by the manufacturer may be used. Otherwise all guarantee and liability claims against the manufacturer become void. Page 12 of 28 ©2021 enz® technik ag Date 15.03.2021 Version 1.3... -
Page 13: Personal Protective Equipment
2.4.7 Conduct in event of malfunction If malfunctions cannot be remedied by the operating personnel using simple means, trained service and maintenance personnel or the Enz customer services must be con- sulted. 2.5.1 Responsibilities of the operating company The operating company has the following responsibilities: Intended use of the product according to chapter 2.1 Intended use. -
Page 14: Responsibilities Of The Operating Personnel
Report to supervisors immediately in case changes occur which impair safety Use and maintenance of the necessary protective equipment Cleanliness and clear arrangement in the vicinity of the product Page 14 of 28 ©2021 enz® technik ag Date 15.03.2021 Version 1.3... -
Page 15: Responsibilities Of The Service / Maintenance Personnel
2.6.5 Consequences when disregarding the safety instructions Disregarding the safety instructions may lead to accidents with serious personal injury, property or environmental damage. Page 15 of 28 Date 15.03.2021 Version 1.3 ©2021 enz® technik ag... -
Page 16: Product-Specific Dangers
Information on safety Operating instructions WARNING! Risk of injury from magnetic radiation of the Enz® Magnet! Maintain a safety distance of the Enz® Magnet to pace makers and hearing aids: Pace maker: Distance at least 100 mm Hearing aid: Distance at least 30 mm ... - Page 17 Damage to the sealing ring or diaphragm! With externally visible damage to the sealing ring or dia- phragm, do not use the Enz® Camera (see chapter 4.2 Over- view Enz® Camera). If the ingress of water can already be recognised, switch off the ...
-
Page 18: Technical Data
Supply voltage Output: 15 V DC, 1.5 A No IP protection: For this purpose, before Protection category (water, dust) charging, always ensure that the Enz® Camera has been completely cleaned and dried. Operating conditions: Temperature range +10 °C to +45 °C ... -
Page 19: System Description
The Enz® Camera can be used to produce, process and save video recordings. Opera- tion of the Enz® Camera and downloading the videos is carried out via remote client which will be installed on the smartphone / tablet. The connection between the Enz®... -
Page 20: Overview Enz® Camera
state too low for video recording During charging: rechargeable battery fully charged Activation field for Enz® Magnet (switching on and off) Fastening screw (ATTENTION: Never open!) Rubber ring for vibration damping Page 20 of 28 ©2021 enz® technik ag... - Page 21 Operating instructions System description Diaphragm for pressure compensation (ATTENTION: Do not damage) Table 8: Overview Enz® Camera Page 21 of 28 Date 15.03.2021 Version 1.3 ©2021 enz® technik ag...
-
Page 22: Operation
Figure 7: Charging the Enz® Camera 5.1.1 Procedure 1. Connect the Enz® Charging station to a power source using the supplied cable 2. Place the Enz® Camera with the back side on the Enz® Charging station. ATTENTION! Damage to the Enz® Charging station caused by dirt and moisture! The Enz®... -
Page 23: Operation
5. After finishing the video recording, stop via the remote client. 6. Download the videos via the remote client. 7. Hold the Enz® Magnet on the activation field (silver spot) for about 2 seconds and then remove it again. The green status LED goes out and the Enz® Camera is switched off. -
Page 24: Troubleshooting
Camera does not respond Moisture content No WiFi Moisture content in the Enz® Camera too high Table 9: Overview of error messages If an error message is active, video recording cannot be started! Page 24 of 28 ©2021 enz® technik ag... -
Page 25: Wifi Error
3. Connect with "CameraDuese" again. 6.1.2 Battery error Charge the Enz® Camera on the Charging station (see chapter 5.1 Charging the Enz® Camera). 6.1.3 Memory error Delete videos from the Enz® Camera to provide memory space. -
Page 26: Cleaning
Before using the Enz® Camera each time, touch only with pro- tective gloves and clean correctly. Clean the Enz® Camera after each use. Remove dirt deposits, in particular on the cam- era lens using conventional cleaning agent. The Enz® Camera may only be repaired by an authorised service tech- nician. -
Page 27: Decommissioning And Disposal
Figure 5: Overview of components ................19 Figure 6: Overview Enz® Camera .................20 Figure 7: Charging the Enz® Camera ................22 Figure 8: Switching the Enz® Camera on and off ............23 Figure 9: Remote client status bar ................24 Figure 10: Camera repair .....................26 Page 27 of 28 Date 15.03.2021 Version 1.3... - Page 28 Schwerzbachstrasse 10 CH-6074 Giswil / Switzerland Tel. +41 41 676 77 66 Fax +41 41 676 77 67 info@enz.com www.enz.com Date 15.03.2021 Version 1.3 ©2021 enz® technik ag Page 28 of 28...
