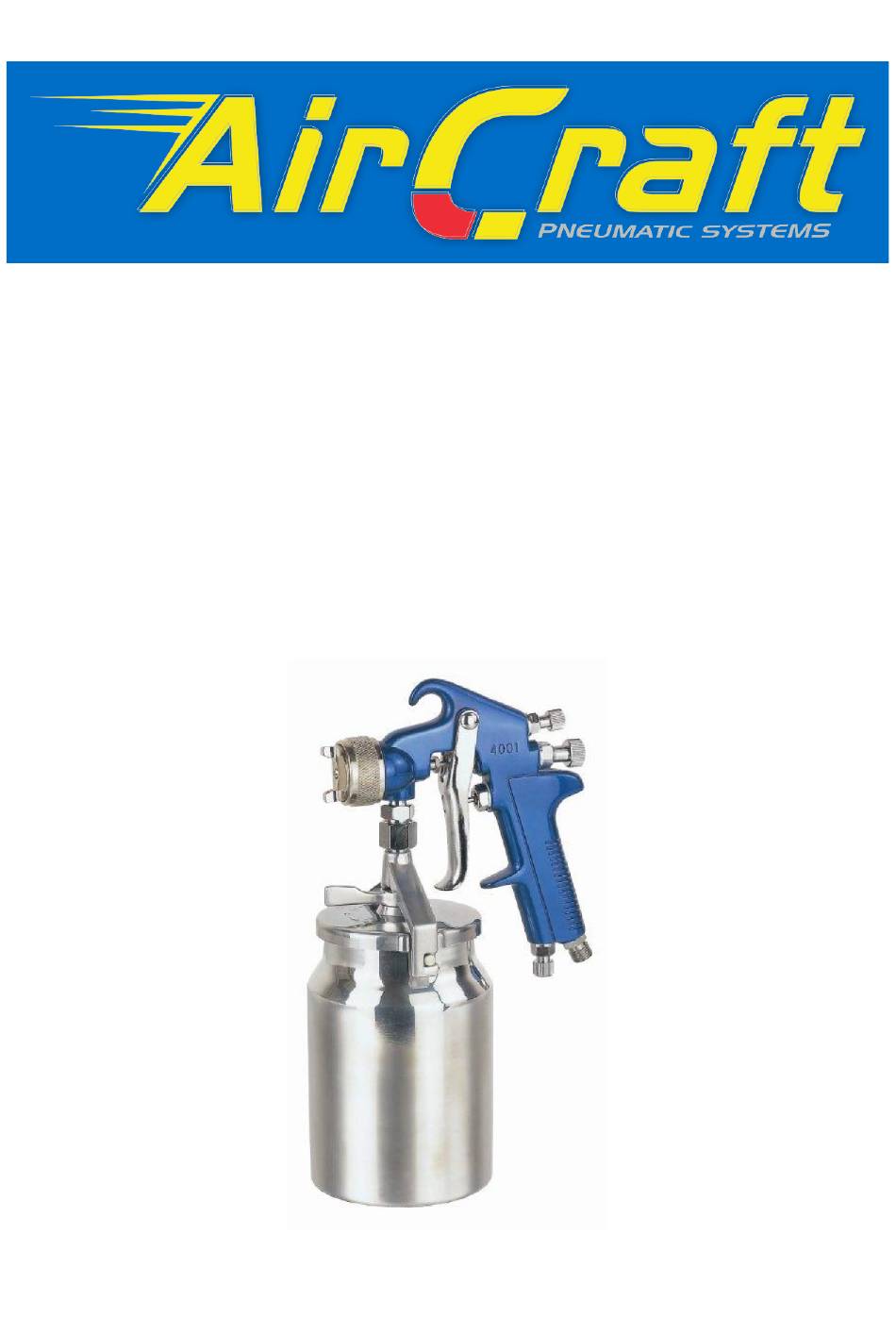

- Page 1 SG4001 SPRAY GUN Pistola de pulverização SG4001 SG4001 Instruction Manual...
-
Page 2: Table Of Contents
4.3.1 GENERAL INFORMATION ..........................3 4.3.2 BEFORE PAINTING ............................3 4.3.3 HANDLING ................................ 4 MAINTENANCE ................................. 4 TROUBLE SHOOTING ..............................5 Instructions for the Air Craft SG4001 Spray Gun Get to know your tools: 1. PRODUCT SPECIFICATION 7 Holes (Total) Air Cap... -
Page 3: Product & Accessrories Included
2. PRODUCT & ACCESSRORIES INCLUDED TYPE DESCRIPTION Image APPLICATIONS Spray gun Actual tool to which Painting tool using compressed air from a nozzle to atomize a liquid accessories are fitted to into a controlled pattern Wrench Spanner for spray gun For disassembling and assembling your paint spray gun Brush Brush on a wire... -
Page 4: Getting Started
• Make sure your paint is suitable for spraying. (Refer to paint manufacturer specifications) • Keep all the air tools disconnected from the air supply when not in use. 4. GETTING STARTED 4.1 ASSEMBLY • The position of the Air Cap Horns (1) will determine the spray pattern. To rotate the Air Horns, loosen the Air Cap, rotate the horns to the desired pattern and tighten •... -
Page 5: Handling
WARNING: NEVER ATTEMPT TO SPRAY UNLESS YOU ARE WEARING THE CORRECT SAFTEY EQUIPMENT SUCH AS APPROVED RESPIRATORY MASK AND EYE PROTECTION. • Some specialized paints require specialist respiratory protection. • Always consult the paint manufacturer’s instructions. • Mask all areas that are not to be sprayed and ensure that surrounding equipment are covered from overspray. -
Page 6: Trouble Shooting
6. TROUBLE SHOOTING WARNING: Disconnect tool from air supply before performing any service procedure. SPRAY PATTERN PROBLEMS SOLUTIONS 1. Fluttering 1. Air enters between fluid nozzle 1. Remove fluid nozzle to clean seat. If and tapered seat of gun body. it is damaged, replace the nozzle 2.
