Goodway REAM-A-MATIC RAM-PRO Operating And Maintenance Instructions Manual

Tube cleaner with quick-connect manifold

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

RAM-PRO

REAM‐A‐MATIC® TUBE CLEANER

WITH QUICK‐CONNECT MANIFOLD

OPERATING AND MAINTENANCE

INSTRUCTIONS

Effective Date: January 2012

Goodway is a registered trademark of Crossford International

Goodway reserves the right to improve products ‐ contact the factory for the latest

configuration and uses

Table of Contents

Need help?

Do you have a question about the REAM-A-MATIC RAM-PRO and is the answer not in the manual?

Questions and answers

Summary of Contents for Goodway REAM-A-MATIC RAM-PRO

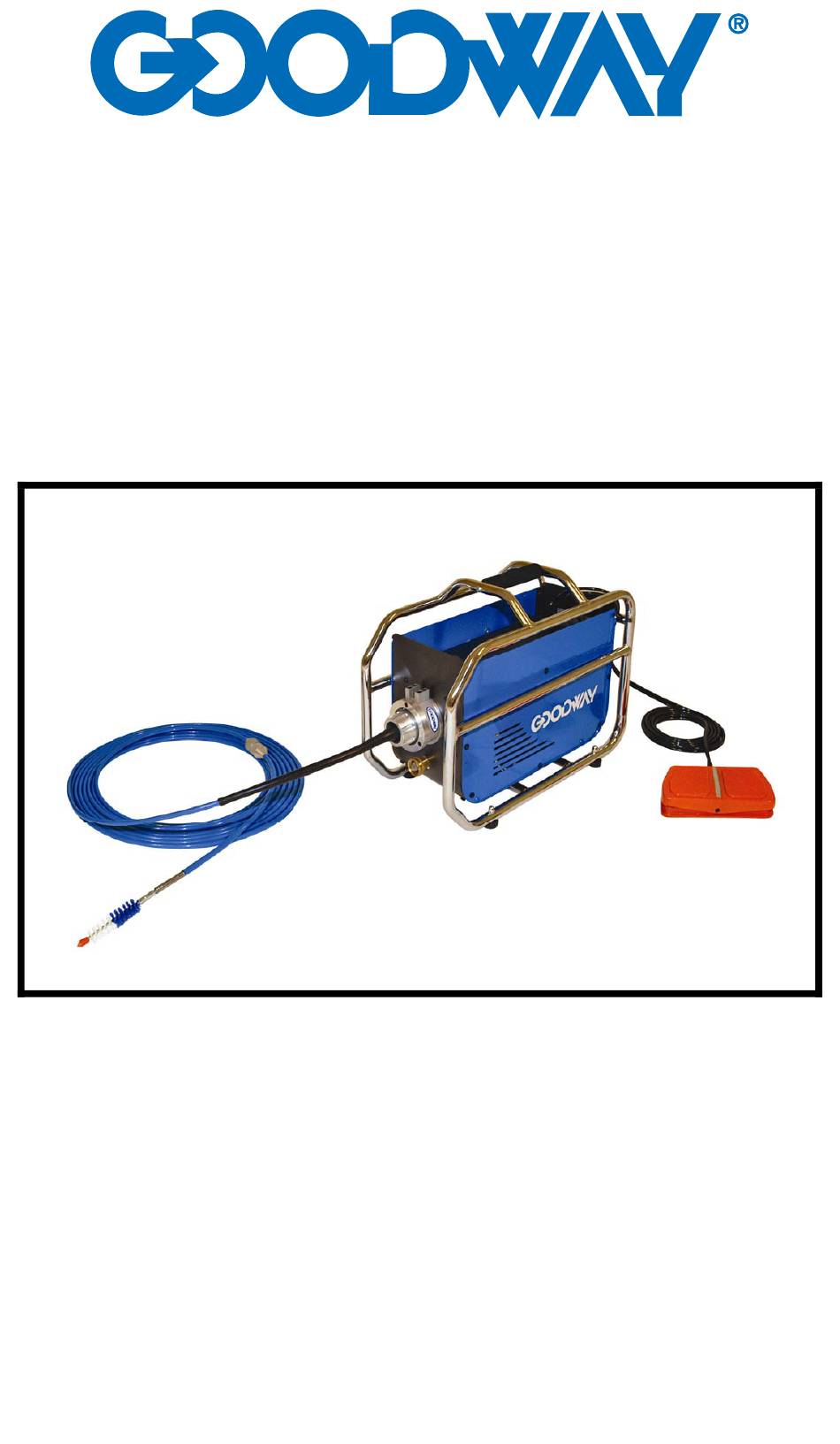

Page 1 RAM-PRO REAM‐A‐MATIC® TUBE CLEANER WITH QUICK‐CONNECT MANIFOLD OPERATING AND MAINTENANCE INSTRUCTIONS ©Copyright 2012Goodway Technologies Corp., Stamford, CT, U.S.A. Effective Date: January 2012 Goodway is a registered trademark of Crossford International Goodway reserves the right to improve products ‐ contact the factory for the latest configuration and uses ...
Page 2 • Do not overreach or stand on unstable support. Keep good footing and balance at all times. • Stay alert – watch what you are doing! • Do not operate the product when fatigued or under the influence of alcohol or drugs. • Keep operation area clear of all persons. • Use personal safety equipment. Always wear eye protection. Dust mask, non‐skid rubber sole safety shoes, hard hat, gloves and hearing protection are recommended. • Use only GOODWAY recommended accessories and replacement parts. Electrical Precautions • Never expose the unit to rain or the elements. Store unit indoors in a cool, dry area. • Make certain that the power source conforms to the requirements of the equipment. • For proper protection this product must be grounded. Always plug the power cord into a properly grounded receptacle. Improper connection of the equipment‐grounding conductor introduces risk of ...
Page 3 • Keep clear of moving shaft. Make sure the shaft will not catch on anything while in use. • Check flexible shaft for weak or worn condition before each use. Make certain that all connections are tight and secure. • If the machine does not operate properly or is damaged contact Goodway Customer Service. • Disconnect the plug from the power source and turn off water supply before disconnecting hoses, fittings, or flexible shaft and before making any adjustments or changing accessories. Such preventive safety measures reduce the risk of starting the unit accidentally. ...
Page 4 • Check the direction of the spiral in the tube and start with the appropriate direction using the foot pedal. “FORWARD” on the machine is clockwise brush rotation when facing the tube. Use the opposite rotational direction (“REVERSE”) when extracting the tool from the tube. • Insert brush/tool into the tube. Press “FORWARD” foot pedal. Feed the shaft into the tube. DO NOT FORCE SHAFT DOWN TUBE ‐ Allow machine to do the work. If resistance is felt, back off 2"‐3" (0.50 ‐ 0.75 m) and feed shaft again until it goes easily. If resistance is too great, use a smaller cleaning tool or check tube for blockage. • IMPORTANT: Only spiral brushes (ENN, ESGB, GTC‐211, SGB, GTC‐200B, ENB, GTC‐210) can be used in the counter‐clockwise direction. ATTEMPTING TO SPIN OTHER CLEANING TOOLS IN THE CLOCKWISE DIRECTION MAY RESULT IN DAMAGE TO THE FLEXIBLE SHAFT, TOOL, OR TUBE!!! Using the Quick‐Connect Flexible Shaft (PRO Shafts Only) • Select the proper size flexible shaft for tube diameter and length to be cleaned. • Make sure the o‐ring on the shaft insert is lubricated with appropriate grease (compatible with Buna‐N or “Nitrile”). • Check unit’s manifold for debris and clean if necessary before attaching flexible shaft. • Insert the square driver of flexible shaft into the in the drive shaft of the machine (inside the manifold). The shaft driver may have to be rotated slightly for proper alignment. • Push shaft insert with the o‐ring all the way into the machine manifold. • Push the shaft locking nut firmly into the quick connect latches until they click, locking the nut in place. • Make sure both latches are properly engaged by gently pulling on the shaft Strain Relief. •...
Page 5 •Leak in footswitch air bellows • Switch air hoses to isolate problem or air hoses (machine or footswitch) •Faulty Air switch •Check all power connections •Check air switches Water leaking from base •Leak in water circuit plumbing •Disconnect power, remove cover. Check hoses and fittings for leaks. •Leak at shaft manifold seal •Check for leak where drive shaft enters shaft manifold. Runs for short period of time and •Electrical short to ground •If GFCI continually trips call stops (power light off), GFCI Goodway. There may be an unsafe trip/won’t reset electrical condition!! Motor runs but shaft does not turn •Problem with chain and/or •Disconnect power, remove cover. sprockets Check chain and sprockets. •Broken flexible shaft •Replace shaft fittings and/or core. No water through flexible shaft •Problem with water supply •Water supply not on, restrictions in hose or hose too small, water supply pressure insufficient. •Inlet screen clogged •Remove hose and clean screen. •Main inlet solenoid valve not •Disconnect power, remove cover. ...
Page 6 Parts List/Breakdown ITEM NO. PART NUMBER DESCRIPTION QTY. X2‐01 Base, RAM‐PRO X2‐02 Side, RAM‐PRO X2‐03 Shelf, RAM‐PRO X2‐04 Chain Guard, RAM‐PRO X2‐05‐01 Roll Cage, RAM‐PRO X2‐05‐02 Handle, Roll Cage X2‐05‐03 Star Nut, 1/4‐20, .65 OD X2‐05‐04 Foam Grip, 1/2 ID, 5.25 X2‐06 Side Brace, RAM‐PRO X2‐07 Sprocket, 17T, 1/2 Bore X2‐08 Sprocket, 36T, 1/2 Bore X2‐09 Chain, 12" X2‐10 Light, 0.5 OD X2‐12 Stop, RAM‐PRO M‐AC‐.25‐48F Motor, 115 AC, 1/4 hp, 48F 834R‐1 Pressure Switch, Air Screw, 10‐32, Panhead, 5/16 HWST‐1037‐P Screw, #10, Sheet Metal, 1/2" HWST‐825‐P Screw, #8, Sheet Metal, 1/4"...
Page 7 6X 20 DETAIL A RAM‐PRO JAN 2012 6| P a g e ...
Page 8 We Are Here to Serve You! For Sales Call: 1‐800‐333‐7467 For Service Call: 1‐800‐370‐2855 Goodway Technologies Corporation Manufactures And Distributes A Complete Line Of Tube/Pipe Cleaning Systems, Duct Cleaning Systems, Vacuums, Floor Machines, High‐Pressure Washers And Other Maintenance Related Equipment. Goodway Technologies Corporation 420 West Avenue, Stamford, CT 06902, USA Tel: 203‐359‐4708 ∙ Toll‐Free Tel: 800‐243‐7932 Fax: 203‐359‐9601 ∙ Toll‐Free Fax: 800‐359‐9625 Goodway@Goodway.com www.Goodway.com ...
