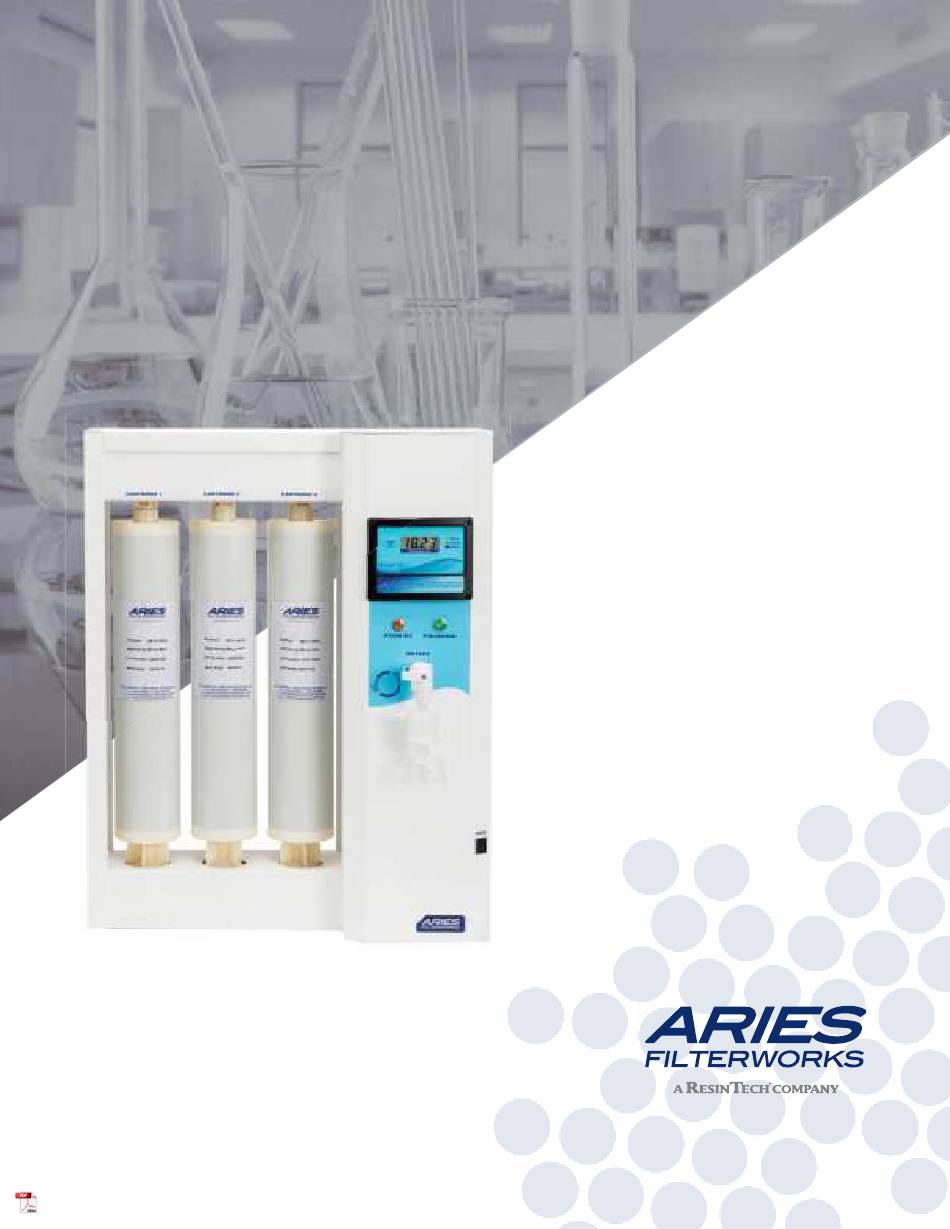

- Page 1 ARIES High Purity Water System Installation & Operation Manual Copyright © 2019 Aries FilterWorks. All rights reserved.
- Page 3 ARIES USER’S MANUAL This manual contains details on installation and operation of your Aries Lab Water system. For optimum performance and safety please read and follow these instructions carefully. You have a quality, world class water treatment system that will provide ultrapure water for many years of trouble-free operation.
- Page 4 Copyright Notice and Trademarks © 2020 ResinTech, Inc. This manual or parts thereof may not be reproduced in any form without the express written permission of Aries Filterworks, Inc. Aries Filterworks® is a registered trademark of ResinTech, Inc. Camden, NJ USA. For more...
-
Page 5: Table Of Contents
TABLE OF CONTENTS 1..Health and Safety 1..System Overview 2..Flow Diagram 2..Model Types 3..Influent & Effluent Specifications 3..Installation 4..Dimensions 5..System Check List & Unpacking Guide 5..Main Check List 6..System Wall Mount Instructions 6.. -
Page 6: Health And Safety
Isolation back to “Operating” condition. valves, pressure gauges and bleed valves are recom- Options available with the Aries lab system are UV, mended on the main water supply. Pressure should recirculating dispensing gun, secondary direct feed be regulated to meet the minimum and maximum port, and wall mounting bracket. -
Page 7: Flow Diagram
MODEL TYPES* ARS-102 Aries Lab Water System with 0.2 Micron Outlet Final Filter ARS-105 ARS-102-UV Aries Lab Water System with installed UV and 0.2 Micron Outlet Final Filter ARS-105-UV MODEL OPTIONS* ARA-UV* Combination UV for TOC and Bacteria Reduction (installed) Dispensing Gun with Final Filter –... -
Page 8: Installation
ARIES HIGH PURITY WATER SYSTEM INFLUENT WATER SPECIFICATIONS PARAMETER REQUIREMENT Source/Type for SDI and tap water feeds. Conductivity RO: < 50 ppb (Using appropriate conditioning SDI: < 200 ppb as necessary) Temperature 20° F to 100°F (5° C to 38°C) Pressure 30 psig minimum/90 psig maximum (1.38 to 6.21 bar) -
Page 9: Dimensions
INSTALLATION & OPERATION MANUAL POWER REQUIREMENTS FEED WATER PRESSURE - 110 VAC 60 Hz (1.0 amp), 220 VAC / 50 Hz 30 – 80 psig regulated. If gravity feed water is used, (0.5 amp) required (Part number: 1200109) - Dedicated GFCI protected outlet six feet within the system DIMENSIONS... -
Page 10: System Check List & Unpacking Guide
ARIES HIGH PURITY WATER SYSTEM SYSTEM CHECK LIST AND UNPACKING GUIDE Special care should be used for shipping and delivery of these systems. Similar care should be considered when removing the system from the box. Items should be inspected and itemized upon removal to ensure they have not been damaged in transit. -
Page 11: Setup
– 3,2,1. supply and electrical supply connections. If the water supply does not already have an isolation valve for servicing the Aries Lab System, install one ahead of the unit connection. WARNING – ELECTRICAL SHOCK HAZARD. -
Page 12: Start Up Procedure
ARIES HIGH PURITY WATER SYSTEM Hold the UV lamp by the plastic ends ONLY. To When all air has been purged from the system close the outlet valve. gloves when handling the UV bulb. DO NOT touch the glass. If the lamp should become oily or dirty, clean it with a clean soft tissue or cloth wetted with isopropyl alcohol. -
Page 13: Display And Key Pad
INSTALLATION & OPERATION MANUAL DISPLAY AND KEYPAD FUNCTIONS MONITOR OPERATION AND PROGRAMMING PRIMARY BUTTONS TO CHECK WATER TEMPERATURE - Wakes the unit up from the Standby mode Press and Hold TEMP and initiates the 30 minute polishing cycle. - The water temperature is displayed while the (NOTE: The Wake key must be pressed longer than 3 second button is pressed. -
Page 14: Maintenance
ARIES HIGH PURITY WATER SYSTEM TO ADJUST SET-POINT MAINTENANCE Press and Hold SET-POINT then also press ADJUST This unit was designed and manufactured to have the ability to produce the purest water that can be Release both buttons -LO- will be displayed momentarily, followed by the by CLSI, ASTM, for Type I Reagent Grade Water current Low set-point value with the LCD’s... -
Page 15: Sanitization
60 minutes. *Note: The unit must remain in the Polishing Mode while sanitizing. If the Aries HP water • Remove cartridges #2 and #1 in this order using system was manufactured after the year 2005, the the same procedure above. -
Page 16: Consumables And Spare Parts
11 / ARIES HIGH PURITY WATER SYSTEM CONSUMABLES & SPARE PARTS PART NUMBER MODEL DESCRIPTION 1200014 Outlet Angle Valve 1200102 Resistivity Calibration Cell Block ARA-WB Wall Mounting Bracket HPA-003 UV Bulb for Combination UV System HPA-008 220 Volt Operation Step Down Converter HPA-010 Sanitization Kit (Includes Blank Filters, Sanitization Cartridge, Gloves &... -
Page 17: Troubleshooting
INSTALLATION & OPERATION MANUAL / 12 TROUBLESHOOTING SYMPTOM CAUSE REMEDY WAKE button must be pushed at least 3 Unit will not WAKE up Wake button pushed too quickly. second to initiate the polishing mode. Check the unit is plugged into a live outlet. No power to the unit or unit in Check the unit’s fuse - replace it if it is blown. -
Page 18: Warranty
A reasonable service charge will be made for diagnosis or repairs not covered by this warranty. Aries Filterworks / ResinTech, Inc. assumes no other responsibility or liability. - Page 19 INSTALLATION & OPERATION MANUAL / 14 ARIES WATER PURIFICATION MAINTENANCE LOG Serial Number: Date Installed: Asset # or ID: Location: DATE MAINTENANCE PERFORMED COMMENTS...
- Page 20 DATE MAINTENANCE PERFORMED COMMENTS...
- Page 21 DATE MAINTENANCE PERFORMED COMMENTS...
- Page 22 DATE MAINTENANCE PERFORMED COMMENTS...
- Page 24 CORPORATE HEADQUARTERS 8 5 6 . 6 2 6 .1 5 50 CALL A R I E S F I LT E RW O RK S . C O M OR VISIT US ONLINE M-0530201701 - Rev.8...
