Summary of Contents for OAKWORKS MEDICAL PRODUCTS 3000 Series

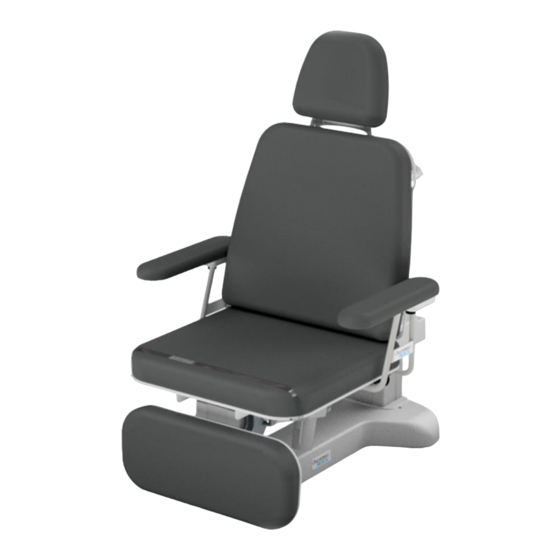

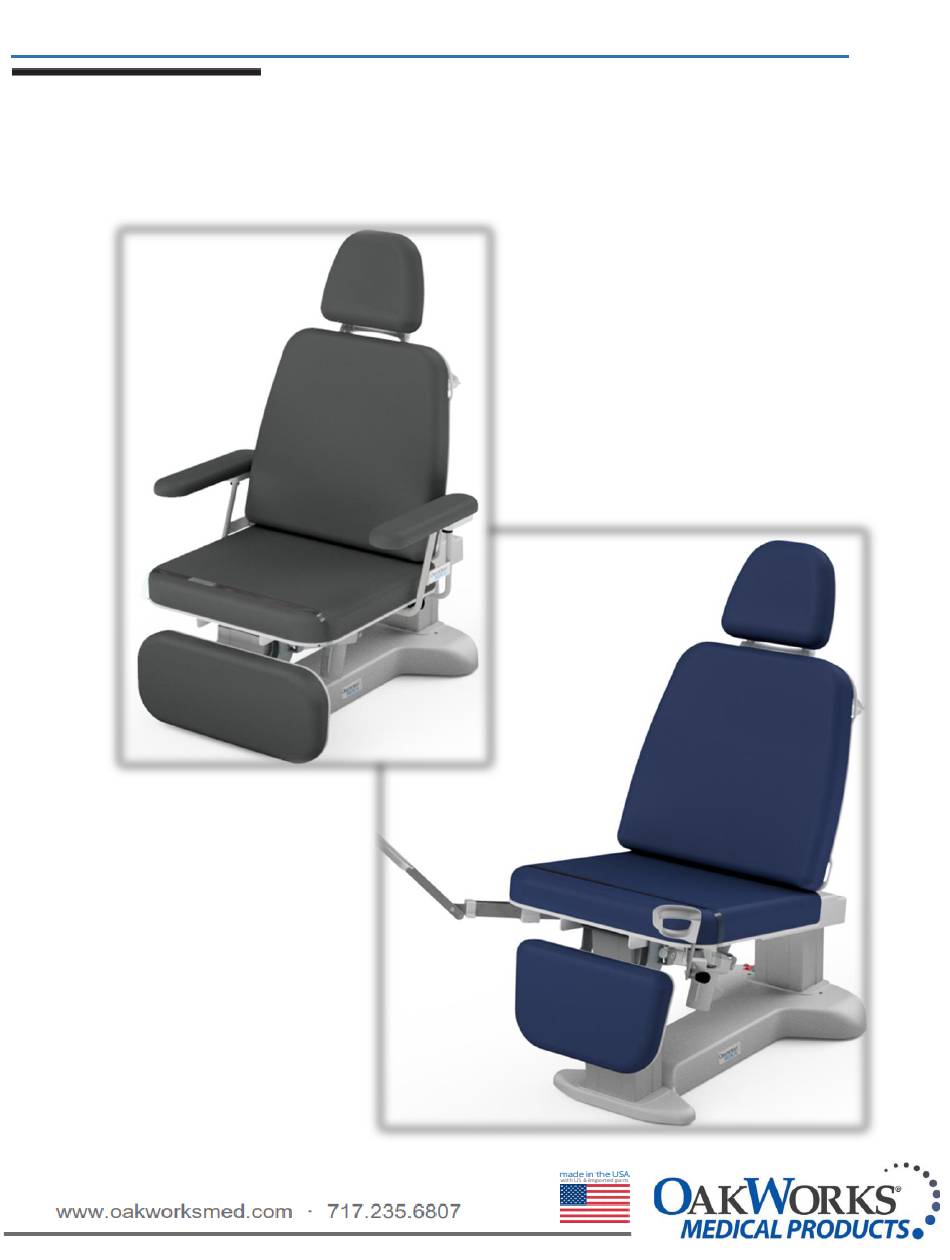

- Page 1 USER MANUAL AKWORKS ® 3000 Series Procedure Chair...
- Page 2 © Copyright 2021 ® AKWORKS , Inc. Notice The information contained within this document is subject to change without notice and should not be construed as a commitment by ® AKWORKS , Inc. ® AKWORKS , Inc. encourages requests for technical specifications Printed in U.S.A.
-
Page 3: Table Of Contents
TABLE OF CONTENTS PRODUCT USE DESCRIPTION / IMPORTANT SAFETY INSTRUCTIONS ................ 3 PRODUCT USE DESCRIPTION ............................4 SYMBOL IDENTIFICATION ..............................4 CONTRAINDICATIONS ..............................4 IMPORTANT SAFETY INSTRUCTIONS ..........................4 MODEL 3000 PROCEDURE CHAIR ............................9 MODEL 3050 PROCEDURE CHAIR ............................ 10 MODEL 3100 PROCEDURE CHAIR ............................ -
Page 4: Product Use Description
PRODUCT USE DESCRIPTION The 3000 Series Procedure Chair is used to support a patient during examinations and procedures. It is intended to be operated by a healthcare professional in a medical environment. No special training is required but a review of the following Safety Instructions is important for the safety of the operator and patient. - Page 5 The Fowler Backrest and Leg Rest sections are not designed to support the entire weight of the patient. Do not sit on the Fowler Backrest or Leg Rest sections. The chair is not to be used as a gurney or to transport a patient from room to room. Medical Electrical Equipment needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information provided in this manual.
- Page 6 IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of burns, fire, electric shock, or injury to persons: 1. Unplug from the electrical outlet before cleaning. 2. Unplug from the electrical outlet before adding or removing parts. 3. Never operate this device if it has a damaged cord or plug, if it is not working properly, if it has been dropped or ®...
- Page 7 IMPORTANT SAFETY INSTRUCTIONS MISE EN GARDE LIRE ET CONSERVER CES INSTRUCTIONS Le dossier et le repose-jambes Fowler ne sont pas conçus pour supporter le poids total du patient. Ne pas s'asseoir sur le dossier ou le repose-jambes Fowler. La chaise ne doit pas servir de civière ni être utilisée pour transporter un patient de salle en salle. Les appareils électromédicaux nécessitent des précautions particulières concernant la compatibilité...
- Page 8 IMPORTANT SAFETY INSTRUCTIONS AVERTISSEMENT Pour réduire le risque de brûlures, d’incendies, de chocs électriques ou de blessures : 1. Débrancher l’appareil de la prise électrique avant le nettoyage. 2. Débrancher l'appareil de la prise électrique avant d’ajouter ou de retirer des pièces. 3.
-
Page 9: Model 3000 Procedure Chair
MODEL 3000 PROCEDURE CHAIR Optional Headrest Electric Paper Roll Fowler Holder Backrest Electric Lift Towers Electric Leg Rest STANDARD SPECIFICATIONS Electric 19”-33” (48.3-83.8 cm.) Height Range Motion 1 Motion 2 Electric +15º Trendelenburg/ -21º Reverse Trend with pause at level Motion 3 Electric 0-75º... -
Page 10: Model 3050 Procedure Chair
MODEL 3050 PROCEDURE CHAIR Headrest Electric Paper Roll Fowler Holder Backrest Armrests Electric Lift Towers Electric Leg Rest Mobility System (casters) STANDARD SPECIFICATIONS Electric 19”-33” (48.3-83.8 cm.) Height Range Motion 1 Motion 2 Electric +15º Trendelenburg/ -21º Reverse Trend with pause at level Motion 3 Electric 0-75º... -
Page 11: Model 3100 Procedure Chair
MODEL 3100 PROCEDURE CHAIR Headrest Electric Paper Roll Fowler Holder Backrest Optional Armrests Stirrups Electric Lift Towers Optional Procedure Tray Mobility Electric System Leg Rest (casters) STANDARD SPECIFICATIONS Electric 19”-33” (48.3-83.8 cm.) Height Range Motion 1 Motion 2 Electric +15º Trendelenburg/ -21º Reverse Trend with pause at level Motion 3 Electric 0-75º... -
Page 12: Procedure Chair Controls (All Models)
PROCEDURE CHAIR CONTROLS (ALL MODELS) Do not sit on the Fowler Backrest or Leg Rest sections. Do not leave the patient unattended. When lowering the chair or using the Trendelenburg functions, make sure there is nothing underneath that can impede motion. Hand Control Operation: Press and hold the corresponding button to adjust chair motions indicated. -
Page 13: Features, Options And Accessories
FEATURES, OPTIONS AND ACCESSORIES FEATURES, OPTIONS AND ACCESSORIES MATRIX ✓= Standard = Optional = Optional Armrests or Side Rails, not both = Not Available A=Accessory ✓ ✓ ✓ Electric Height Range ✓ ✓ ✓ Electric Trendelenburg/ Reverse ✓ ✓ ✓ Electric Fowler Backrest ✓... -
Page 14: Top Pads
TOP PADS Upholstered Top pads can be removed for cleaning or replacement. First, remove the paper cutting strap. Pull up around ® the edges of the pad to remove. Pads are held in place with hook and loop (Velcro ) fasteners. PAPER ROLL HOLDER Insert the rod through the paper roll To load paper, pull down on the 2... -
Page 15: Arm Rests
ARM RESTS Do not put excessive weight or pressure on the Arm Rest. Maximum weight rating 30 lbs (13 kg). To fold Arm Rests up or down, pull firmly on To rotate Arm Rests, pull firmly on the the knob below the top to unlock. Arm Rests knob below the Arm Rest to unlock. -
Page 16: Stirrups
STIRRUPS Pinch Point- Keep fingers away. Maximum weight rating 102 lbs (46 kg) each. Grasp the black handle and pull stirrup Rotate the stirrup out to clear the Leg straight out all the way. Rest (if applicable). Unfold the stirrup arm. Adjust length and angle of stirrup for patient comfort. -
Page 17: Procedure Tray
PROCEDURE TRAY Make sure the Leg Rest is fully lowered before using the procedure tray. Do not sit or push on the Procedure Tray when it is extended from the seat. Maximum weight rating 15 lbs (7 kg). Slide the tray drawer out by pulling on The tray can be removed from the the tab in the center. -
Page 18: Battery Backup
BATTERY BACKUP The Battery Backup system is designed to automatically deliver power to the chair if A/C power is lost. Once A/C power is restored the battery will automatically recharge. The Battery has an ON/OFF switch located under the top. This is used to disconnect the battery for long term storage or for servicing. -
Page 19: Headrest / Face Rest
HEADREST / FACE REST Do not put excessive weight or pressure on the Headrest / Face Rest Platform. Do not extend the dowels of the Headrest / Face Rest Platform more than 3” (8 cm) from the end of the top. Maximum weight rating 30 lbs (13 kg). The Quick Lock Platform is used with the headrest for seated and supine positioning, and with the Face Rest for prone positioning. -
Page 20: Installation
INSTALLATION All chairs come completely assembled and ready to use. Plug the cord into a functioning outlet that is rated for the chair. (see Grounding below). Arrange the power cord and control cords so that they will not create a tripping hazard and where the controls are located to your liking and are conveniently accessible. -
Page 21: Cleaning & Disinfection
CLEANING & DISINFECTION RECOMMENDED CLEANERS/DISINFECTANTS To reduce the risk of electric shock, always unplug this furnishing from the electrical outlet before cleaning. Reference the Recommended Cleaners and Disinfectant list (MMINML0008-EN) that came with the chair. This information can also be found at www.oakworksmed.com under product information. All cleaners and disinfectants have the ability to degrade the upholstery to some extent. -
Page 22: Inspections & Warranty
INSPECTIONS & WARRANTY INSPECTIONS RECOMMENDED REGULAR INSPECTIONS (monthly or local standard) • Check for damage to the power, hand control(s) and foot control(s) on all cables. • Visually inspect components for obvious damage that could cause problems during operation. RECOMMENDED PERIODIC INSPECTIONS (yearly or local standard) •... -
Page 23: Specifications
SPECIFICATIONS PRODUCT SPECIFICATIONS Weight 280-350 lbs. (125-156 kg.) Shipping Weight 375-445 lbs. (169-198 kg.) Lifting capacity 550lbs. (250 kg.) ENVIRONMENTAL CONDITIONS CONDITIONS TEMPERATURE HUMIDITY ATMOSPHERIC PRESSURE Normal Use 50° (10°C) to 104° (40°C) 20% to 60% RH 98 to 105 kPa Storage &... -
Page 24: Guidance And Manufacturer's Declaration - Electromagnetic Emissions
GUIDANCE AND MANUFACTURER'S DECLARATION – ELECTROMAGNETIC EMISSIONS The chair is intended for use in the electromagnetic environment specified below. The customer or the user of the chair should assure that it is used in such an environment. Emissions Test Compliance Electromagnetic Environment - Guidance The chair uses RF energy only for its internal function. -
Page 25: Guidance And Manufacturer's Declaration - Electromagnetic Immunity
GUIDANCE AND MANUFACTURER'S DECLARATION – ELECTROMAGNETIC IMMUNITY The chair is intended for use in the electromagnetic environment specified below. The customer or the user of the chair should assure that it is used in such an environment. Electromagnetic environment - Immunity Test IEC 60601 Test Level Compliance Level... - Page 26 GUIDANCE AND MANUFACTURER'S DECLARATION – ELECTROMAGNETIC IMMUNITY The chair is intended for use in the electromagnetic environment specified below. The customer or the user of the chair should assure that it is used in such an environment. Electromagnetic environment - Immunity Test IEC 60601 Test Level Compliance Level...
- Page 27 This page is intentionally left blank. P a g e 27 | 28...
-
Page 28: Contact Information
USER MANUAL AKWORKS ® 3000 Series Procedure Chair CoYoMe b.v. - CoMedical CONTACT INFORMATION: Edisonsraat 2 - 4 ® Inc. AKWORKS 3284 WD Oud-Beijerland, The Netherlands 923 East Wellspring Road www.coyome.eu New Freedom, PA USA 17349 Enrico Cohen Enrico@coyome.nl Phone (717) 235-6807 info@coyome.nl...
