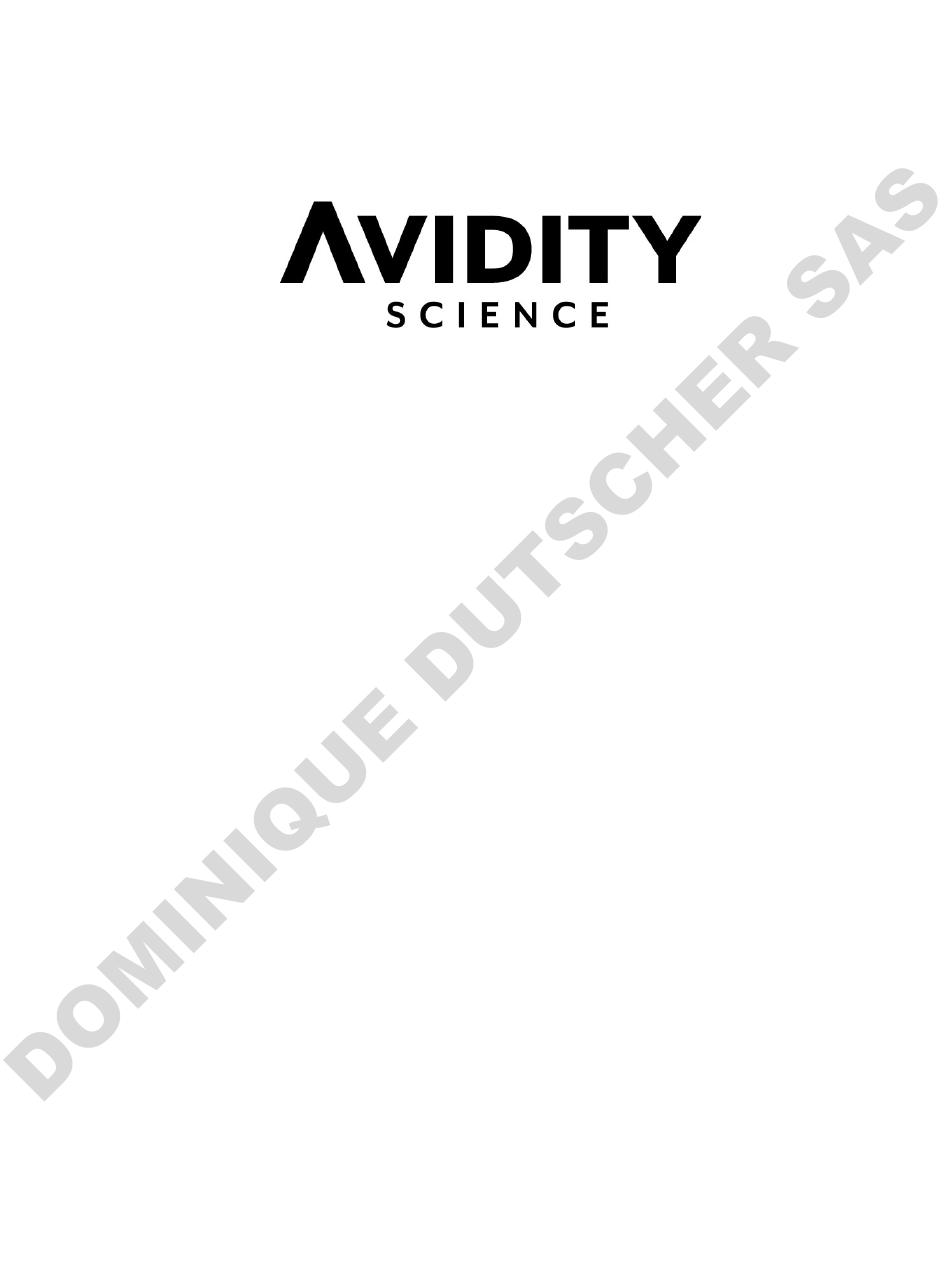

  • Page 1 Geno™ Range RO / DI Water System GENO20 / GENO40 Series 5 Operation OP-000112 Revision C March 2021...
  • Page 2 Although Avidity Science, LLC. has taken every precaution when preparing this manual, Avidity Science, LLC assumes no responsibility for errors or omissions, nor does Avidity Science, LLC assume liability for damages to your system resulting from the use of the information in this manual.

  • Page 3: Table Of Contents

    Avidity Science, LLC Geno Range RO/DI Water System, Series 5 Operation Manual Contents Important Safety and Service Information ......... . iii RoHS/WEEE Statement .
  • Page 4 Geno Range RO/DI Water System, Series 5 Operation Manual Avidity Science, LLC This page left intentionally blank. Contents...

  • Page 5: Important Safety And Service Information

    SAVE THESE INSTRUCTIONS RoHS/WEEE Statement Avidity Science water treatment, automated watering, environmental monitoring, and access control sys- tems specified within this manual are manufactured in compliance with the RoHS Directive (EU Directive 2011/65/EU and subsequent amendments).

  • Page 6: Product Warnings - Electrical

    Geno Range RO/DI Water System, Series 5 Operation Manual Avidity Science, LLC Product Warnings - Electrical WARNING! Electric shock. The electrical equipment in this system must be connected to a ground fault interrupting circuit. Failure to do so can cause elec- trical shock resulting in severe personal injury or property damage.

  • Page 7: Contacting Technical Support

    Geno Range RO/DI Water System, Series 5 Operation Manual Contacting Technical Support For up to one year after your system installation date, you may contact Avidity Science for free technical support. All contact information appears in the tables below. Europe, Middle East, Africa Support...
  • Page 8 Geno Range RO/DI Water System, Series 5 Operation Manual Avidity Science, LLC Important Safety and Service Information...

  • Page 9: Introduction

    Avidity Science, LLC Geno Range RO/DI Water System, Series 5 Operation Manual Introduction The Geno RO/DI Water System is a dual water purification system producing Type 2 water (1 to 15 MΩ) at a rate of 20 or 40 litres per hour. Type 2 water is stored in an external storage tank where it can be dis- pensed as needed, or be connected to a distribution system.

  • Page 10: Purification Process

    Geno Range RO/DI Water System, Series 5 Operation Manual Avidity Science, LLC Purification Process In normal operation, feed water enters the system through the inlet solenoid valve (V3), engaging the reverse osmosis pump (P1). the conductivity of the feed water is measured by the conductivity sensor (Q1) before it reaches the pump.
  • Page 11 Avidity Science, LLC Geno Range RO/DI Water System, Series 5 Operation Manual PUMP00001 or PUMP00016 TC026 TC001 TC002 TANK Table 2. Purification Process component descriptions. Component Description Component Description Inlet Solenoid Valve Permeate Water Conductivity Sensor Feed Water Conductivity Sensor...

  • Page 12: Feed Water Requirements

    Geno Range RO/DI Water System, Series 5 Operation Manual Avidity Science, LLC Feed Water Requirements The feed water used must meet these requirements. Pressure: 0.1 to 6 bar [1.45 to 87 psi] Feed Water Conductivity: less than 1400 μS per cm Free Chlorine: less than 0.1 mg per liter...

  • Page 13: Primary Operation Menus And Sub-Menus

    Avidity Science, LLC Geno Range RO/DI Water System, Series 5 Operation Manual Primary Operation Menus and Sub-menus Access Main menu. View Active Alarms (red) password Required External Storage Tank is Filling Main Menu Access information related to the displayed screen.
  • Page 14 Geno Range RO/DI Water System, Series 5 Operation Manual Avidity Science, LLC This page left intentionally blank. Introduction...

  • Page 15: Operation

    Avidity Science, LLC Geno Range RO/DI Water System, Series 5 Operation Manual Operation User Settings NOTE: A User password 1111 is required to access the user settings These are the User Settings for the Geno unit. RO Quality Limit. Set the required water quality of the Type 3 water Tank Full Limit.

  • Page 16: Alarms (Warnings)

    Geno Range RO/DI Water System, Series 5 Operation Manual Avidity Science, LLC Alarms (Warnings) Displays active alarms. Alarms will automatically display as they occur. Touch the alarm name to display details. Touch to acknowledge the alarm. The alarm will stay in the list until the associated issue has been fixed.

  • Page 17: Configure User Settings

    Avidity Science, LLC Geno Range RO/DI Water System, Series 5 Operation Manual Configure User Settings Follow this procedure. 1. On touch , then on , touch 2. Enter the User password 1111 and touch 3. Touch the applicable setting and touch 4.

  • Page 18: Warning Messages

    Geno Range RO/DI Water System, Series 5 Operation Manual Avidity Science, LLC Warning Messages Below are the warning messages and solutions. Error Description Solution Number Fix the leak. Dry the leak sensor located on the bottom of Water leak (system shuts down) the cabinet.

  • Page 19: Routine Maintenance

    Avidity Science, LLC Geno Range RO/DI Water System, Series 5 Operation Manual Routine Maintenance Below is a schedule of routing maintenance intervals required to keep the Geno Water System operating. Table 3. Schedule of Routine Maintenance Maintenance Required Frequency Preventive maintenance by an Authorized Technician...
  • Page 20 Geno Range RO/DI Water System, Series 5 Operation Manual Avidity Science, LLC 5. On , touch • The permeate valve closes, the flush valve opens, and the system depressurizes for 30 seconds as shown below. 6. When the pressure screen shown below appears, observe the pressure gauge to verify the system has depressurized.
  • Page 21 Avidity Science, LLC Geno Range RO/DI Water System, Series 5 Operation Manual 8. When appears, lift the left front panel and remove the Pretreatment module TC001 from it’s brackets and disconnect the elbow fitting at each end. 9. Place the cartridge is a safe location for disposal later.
  • Page 22 Geno Range RO/DI Water System, Series 5 Operation Manual Avidity Science, LLC 12.When the Pretreatment Module is reconnected, touch • The Pretreatment Module is flushed for 300 seconds (5 minutes) • At the conclusion of the flush, the Pretreatment Module replacement is complete.

  • Page 23: Replace Endure Purification Pack

    Avidity Science, LLC Geno Range RO/DI Water System, Series 5 Operation Manual Replace Endure Purification Pack Follow this procedure to replace the Endure Purification Pack TC002. 1. If you have not already done so, remove the left front panel. 2. On , select 3.
  • Page 24 Geno Range RO/DI Water System, Series 5 Operation Manual Avidity Science, LLC 5. On , touch • permeate valve closes, the flush valve and the DI valve open, and the system depressurizes for 30 seconds as shown below. 6. When the pressure screen shown below appears, observe the pressure gauge to verify the system has depressurized.
  • Page 25 Avidity Science, LLC Geno Range RO/DI Water System, Series 5 Operation Manual 11.Remove the covers from the receptacles on the back of the pack shown below. 12.Place the applicable purification pack in its defined location. 13.Lift up on the back of the pack to slide the receptacles over the tubes on the back wall.

  • Page 26: Replace Air Filter On External Storage Tank

    Geno Range RO/DI Water System, Series 5 Operation Manual Avidity Science, LLC 17.When appears, the system pressurizes and flushes for 400 seconds (6 minutes and 40 seconds). 18. When is displayed, touch to return to the main menu. 19.Replace the left front panel.

  • Page 27: Sanitise Ro Membrane (Ro Clean)

    Avidity Science, LLC Geno Range RO/DI Water System, Series 5 Operation Manual Sanitise RO Membrane (RO Clean) The RO Clean command initiates a process to sanitise the RO membrane(s). An RO Clean should be per- formed every 12 months or as bacterial growth dictates.
  • Page 28 Geno Range RO/DI Water System, Series 5 Operation Manual Avidity Science, LLC 2. On , touch RO Clean 1 and touch 3. On , touch The flush valve opens and the system depressurizes for 30 seconds as shown below. 4. When the pressure screen shown below appears, observe the pressure gauge to verify the system has depressurized.
  • Page 29 Avidity Science, LLC Geno Range RO/DI Water System, Series 5 Operation Manual 6. When appears, lift the left front panel and remove the Pretreatment module TC001 from it’s brackets and disconnect the elbow fitting at each end. 7. Place the cartridge is a safe location. It will be reconnected after the cleaning process.
  • Page 30 Geno Range RO/DI Water System, Series 5 Operation Manual Avidity Science, LLC 10. On , touch • The RO flush operation starts and a 300 second (5 minute) countdown begins. • The flush valve opens and the system depressurizes for 30 seconds as shown below 11.When the pressure screen shown below appears, observe the pressure gauge to verify the system...
  • Page 31 Avidity Science, LLC Geno Range RO/DI Water System, Series 5 Operation Manual 13.When appears, unscrew the cap from the strainer housing. WARNING! Severe personal injury. Chlorine tablets are harmful if swallowed. Avoid contact with eyes, skin, and clothing. Wear protective gloves and eye wear when handling the chlorine tablet.
  • Page 32 Geno Range RO/DI Water System, Series 5 Operation Manual Avidity Science, LLC 15.On , touch • The RO Clean and flush operation starts and a 900 second (15 minute) countdown begins. • The flush valve opens and the system depressurizes for 30 seconds as shown below 16.When the pressure screen shown below appears, observe the pressure gauge to verify the system...
  • Page 33 Avidity Science, LLC Geno Range RO/DI Water System, Series 5 Operation Manual 19.On , touch 20.When appears, reconnect the Pretreatment Module (TC001). 21.When the Pretreatment Module is reconnected, touch • The Pretreatment Module is flushed for 300 seconds (5 minutes) •...
  • Page 34 Geno Range RO/DI Water System, Series 5 Operation Manual Avidity Science, LLC Routine Maintenance...

  • Page 35: Consumables And Replacement Parts

    Avidity Science, LLC Geno Range RO/DI Water System, Series 5 Operation Manual Consumables and Replacement Parts These are the consumables and parts for replacement on the Geno unit. Consumables Below is a list of items that regular replacement. Table 4. Consumable items.
  • Page 36 8100-5000-020 PUMP00016 RO Pump (GENO40) 7120-2200-112 GAUG00001 Pressure Gauge Pulsation Dampener 7120-2200-110 DAMP00001 RO Housing 7120-2200-115 REST00002 Flow Restrictor (green), GENO20 7120-2200-116 REST00003 Flow Restrictor (blue), GENO20 7120-2200-117 REST00004 Flow Restrictor (white), GENO40 7120-4000-210 SENS00008 Pressure Sensor 7120-2200-121 DISP00006 Display Touchscreen...

  • Page 37: External Storage Tank Replacement Parts

    Avidity Science, LLC Geno Range RO/DI Water System, Series 5 Operation Manual External Storage Tank Replacement Parts Below are the available external storage tanks for replacement. Table 6. Storage Tank Replacement Parts. European Part Recommended US Part Number Description Number...
  • Page 38 Geno Range RO/DI Water System, Series 5 Operation Manual Avidity Science, LLC This page left intentionally blank. Consumables and Replacement Parts...
