de Wijs 05-02-A-D Manual

10-slide disk outdoor viewer

Hide thumbs

Table Of Contents

Ing. J. de Wijs.

Populierstraat 44,

4131 AR Vianen,

the Netherlands

Tel/Fax. +31 (0)347-372242

e-mail: info@dewijs-3d.com

Website: www.dewijs-3d.com

The specification subject to change without prior notices. Last update July 2006

Design and production of stereoscopic instruments.

July 2006

Manual 10-slide disk outdoor viewer

model 05-02-A-D

Bank: Postbank account: 6084601,

Swiftcode: INGBNL2A

Bank code: NL24PSTB0006084601

Tax number: NL 1899.16.084 B01

K.v.K. Reg. Nº 23071201 Utrecht

Table of Contents

Need help?

Do you have a question about the 05-02-A-D and is the answer not in the manual?

Questions and answers

Summary of Contents for de Wijs 05-02-A-D

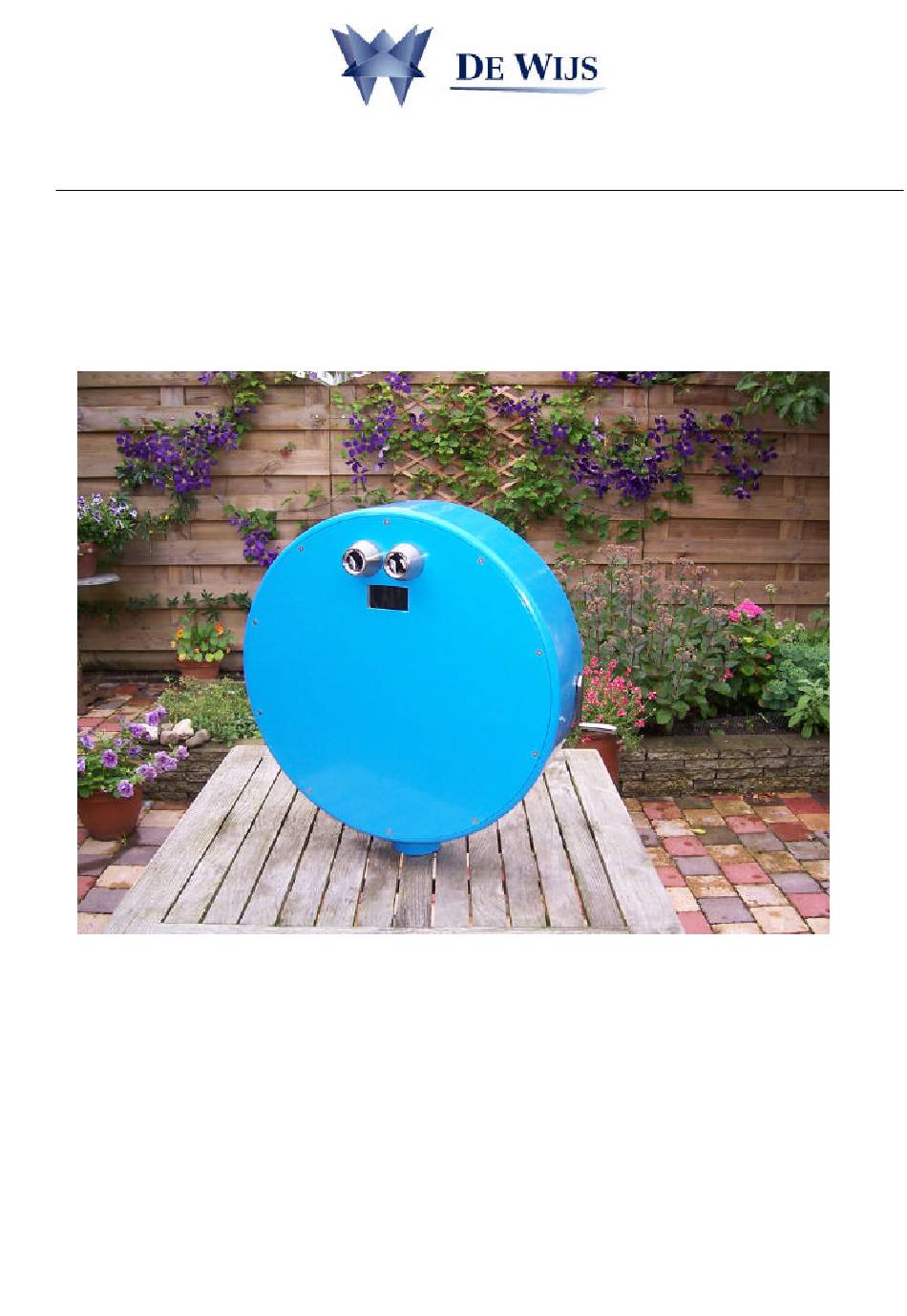

Page 1 Ing. J. de Wijs. Bank: Postbank account: 6084601, Populierstraat 44, Swiftcode: INGBNL2A 4131 AR Vianen, Bank code: NL24PSTB0006084601 the Netherlands Tel/Fax. +31 (0)347-372242 e-mail: info@dewijs-3d.com Design and production of stereoscopic instruments. Tax number: NL 1899.16.084 B01 Website: www.dewijs-3d.com K.v.K. Reg. Nº 23071201 Utrecht...
Page 2 Placement To find a proper location for the outdoor viewer take some points into account: Mount the viewer on a post that also blocks the viewer of revolving on its post. The viewer requires good day light but that does not mean it should always be aiming with its rear to the sun.
Page 3 Inserting slides The viewer is able to handle the international standardized 3D slide frame format 41x101 mm. With a thickness of 2.5 mm. Currently most used frames are of RBT and made of plastic but you can also mount the slides on a mask and then put them between two 1 mm.
Page 4 The achromatic: lenses d= 30 mm. f= 60 mm. Are common lenses and used in other products of ‘ de Wijs’ . The same counts for the lens barrels, they are used in panel viewers as well. Both can be ordered as replacement parts at ‘ de Wijs’ .
Page 5 Cleaning the moving reflection panel and the fixed mirror Remove the 10 bolts at the edge of the front panel with the hexagon tool. The front comes lose, be careful that it does not drop! The big round slide disk is locked with an M14 nut. Remove it. Now, very gently, pull on two opposite edges of the disk, to get the disk loose of its axle.
Page 6 Lubricating moving parts Remove the 10 bolts at the edge of the front panel with the hexagon tool. The front comes lose, be careful that it does not drop! The big round slide disk is locked with an M14 nut. Remove it. Now, very gently, pull on two opposite edges of the disk, to get the disk loose of its axle.
Page 7 The Maltezer disk with its pin should be greased as well. The cross, mounted at the rear of the slide disk, should also be greased. The mechanism that pushes the reflection plate needs grease as well, meaning the nylon white plastic piece and the asymmetric wheel.
Page 8 Technical data: Amount of slides Slide frame format 41x101 mm. (RBT) or between glass mounted Maximum image size 24x33 mm. Ø 30 mm. f= 60 mm. Achromatic Lenses Enlargement 4.2 x Interocular lens base 62 mm. Text card size 73x42 mm. 200 grams paper. Weight of the viewer 31 kg.
