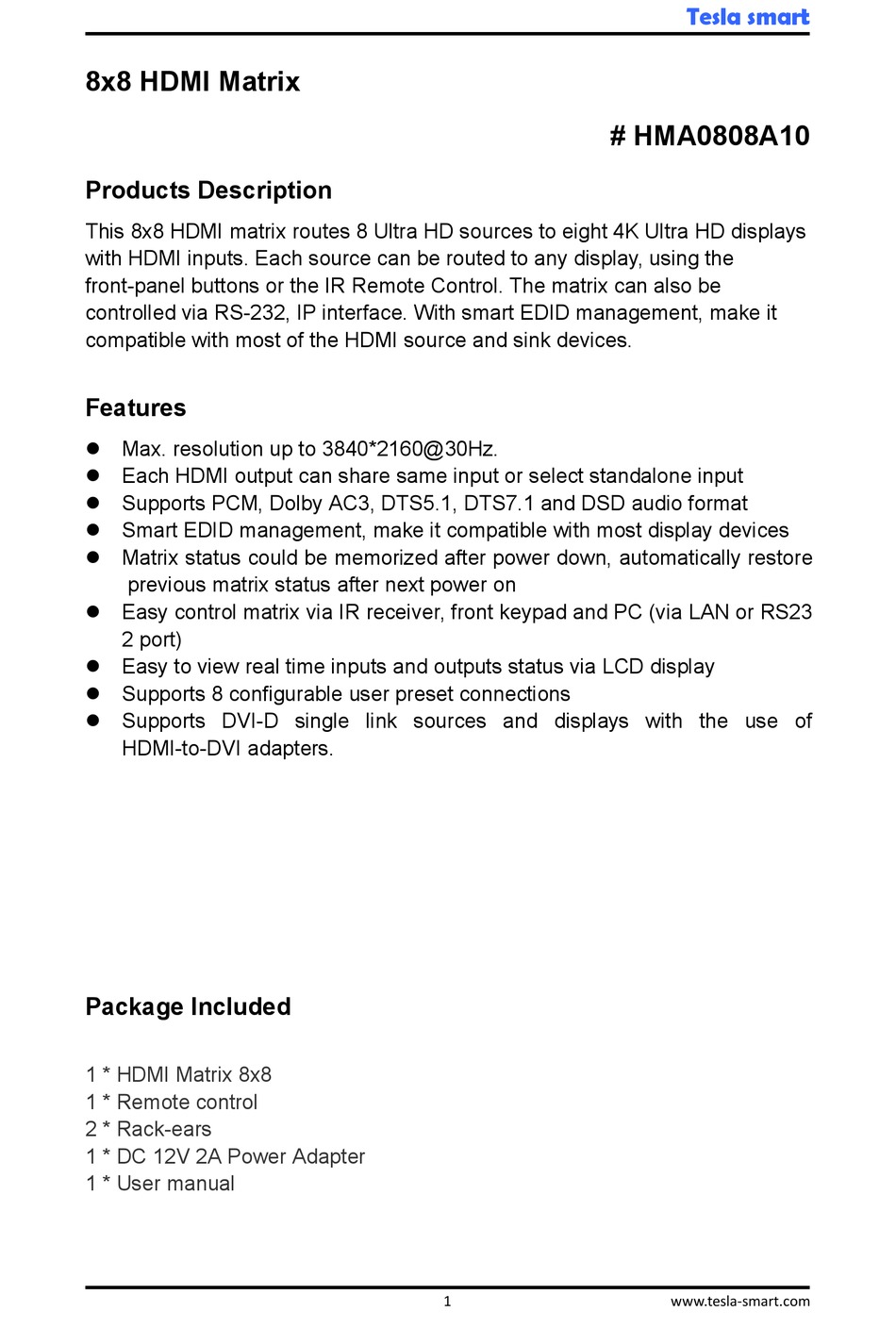

8x8 HDMI Matrix
Products Description
This 8x8 HDMI matrix routes 8 Ultra HD sources to eight 4K Ultra HD displays
with HDMI inputs. Each source can be routed to any display, using the
front-panel buttons or the IR Remote Control. The matrix can also be
controlled via RS-232, IP interface. With smart EDID management, make it
compatible with most of the HDMI source and sink devices.
Features
 Max. resolution up to 3840*2160@30Hz.
 Each HDMI output can share same input or select standalone input
 Supports PCM, Dolby AC3, DTS5.1, DTS7.1 and DSD audio format
 Smart EDID management, make it compatible with most display devices
 Matrix status could be memorized after power down, automatically restore
previous matrix status after next power on
 Easy control matrix via IR receiver, front keypad and PC (via LAN or RS23
2 port)
 Easy to view real time inputs and outputs status via LCD display
 Supports 8 configurable user preset connections
 Supports DVI-D single link sources and displays with the use of
HDMI-to-DVI adapters.
Package Included
1 * HDMI Matrix 8x8
1 * Remote control
2 * Rack-ears
1 * DC 12V 2A Power Adapter
1 * User manual
# HMA0808A10
