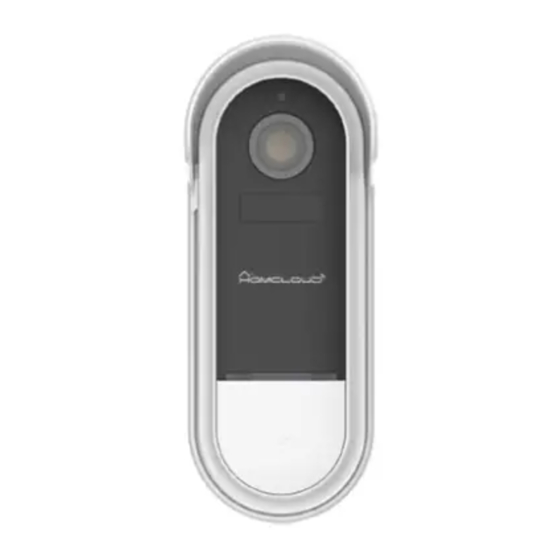

Summary of Contents for HOMCLOUD Bell 15S

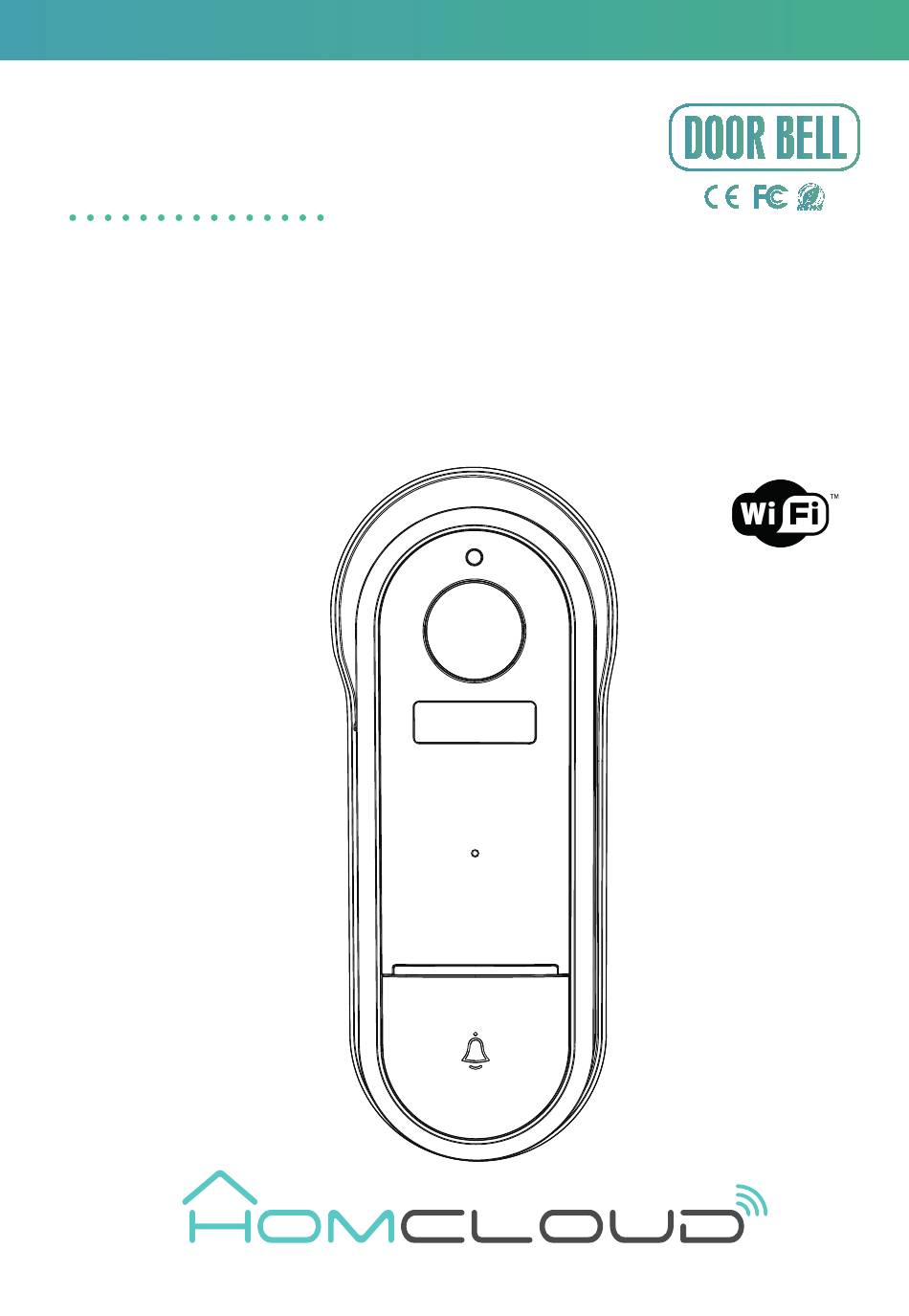

- Page 1 Bell 15S ORIGINALITY DESIGN SMART - AND BEAUTIFUL QUICK GUIDE...
-
Page 2: What's In The Box
What's in the box Please consult this checklist for all parts. A x 4 B x 4 Screws Bell 15S Back panel Screwdriver User Manual USB cable Power adapter Warnings - For internal and external use. - Keep out of reach of children. - Page 3 Description Photosensitive SD card slot Power Lens Reset Micro USB External power port Microphone Status Light Doorbell button Speaker Power Port DC 5V/1A (USB); AC 12V-24V (AC supply) Doorbell button Press the button to activate the doorbell Status light Blinking red light: wait for network connection (slow) connecting the network (fast) Solid blue light on: camera is working correctly Solid red light on: camera is malfunctional...
-
Page 4: Installation
Installation Mode 1 Battery supply 1. Fix the bracket to the wall with the mounting screws 2. Install the camera in the bracket and lock it with the screw Mode 2 12-24V AC supply (optional) 12~24V AC 1. Prepare the accessories which are needed in AC supply 2. - Page 5 Connection Set up router The router supports the 2.4GHz WiFi (doesn't support the 5GHz), and is connected to the WiFi network.Please set the parameters of the router before connecting the WiFi network, and record the SSID and password of your WiFi. Please keep network available 2.4GHz 5GHz...
- Page 6 Connection Open the Homcloud App, click "My" >> "Home Management" >> "Create a home", and you can customize the home name and related settings (optional). Click "Add Device" or "+", and then select “Doorbell 15” or any other "Smart Camera" icons to add camera.
- Page 7 QR Code Configuration Power on and reset doorbell until the status indicator is flashing quickly or a prompt tone is heard, and then click "Next". Then input your WiFi's passwords and click "Next". Remember to power ON the doorbell with the switch on the back part of the doorbell.
- Page 8 QR Code Configuration In this interface, you should scan the QR code in your phone with the camera,when the camera comes out "dong dong dong". And you can complete the configuration about 30s.
- Page 9 QR Code Configuration When connecting, you should make sure your router,mobile,and camera are as close as possible.When camera added successffully,click " " you could also DIY the camera's name. Icons Enlarge the image full screen. Turn on receiving audio. Switch to Full HD resolution (SD is Standard Resolution). Take a snapshot (it will be saved on your smartphone).
- Page 10 QR Code Configuration In "Smart Camera" interface,click " ",you can set the camera common functions. - Waterproof grade: IP54 waterproof - Homcloud code: ME-DB15 - Working temp: -20°C - 50°C - Model No: Doorbell 15 - View Angle: 130° - Power: DC 5V/1A,...
- Page 11 Functions Full-duplex audio When the visitor push the doorbell button, you will get a call. You can see and hear the vistor in your App from the doorbell if you answer. PIR Motion detection Motion sensors will notify you when movement is detected. Shared device The doorbell device can be shared with friends, and friends can also preview online.
-
Page 12: Google Assistant
Google Assistant... - Page 13 Chromecast...
-
Page 14: Amazon Alexa
Amazon Alexa... - Page 15 Advice. The declaration can be consulted on the website www.homcloud.com/doc. www.homcloud.com/doc. "Homcloud" is a registered trademark of Life365 Italy S.p.A. "Homcloud" is a registered trademark of Life365 Italy S.p.A. Imported by: Life365 Italy S.p.A. - European General Agency Imported by: Life365 Italy S.p.A. - European General Agency...
