Summary of Contents for MINIWARE MDP-P905

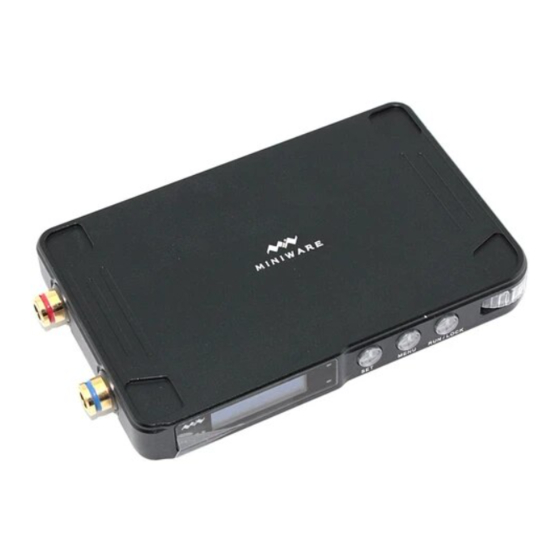

- Page 1 MDP-P905 User Manul Of Digital Power Module Before using this product, please read this manual (This user's manual written based on firmware version V1.20)
-
Page 2: Table Of Contents
table of Contents Describes the functional Operation panel interface 2.1 groundwork interface 2.2 the voltage-current adjustment setting screen (when toggle wheel) 2.3 browse display mode 2.4 Settings menu 2.5 Rapid setting voltage and current menu 2.6 Wireless address modification method The method Described in Appendix indicator definitions updates 1... -
Page 3: Describes The Functional
Operation Panel Explains LOCK MENU <- +> Light output terminal CC / CV Panel Lights Dial LOCK / CONNECT Figure 1.0 The main function switching voltage and current adjustment item; SET Set Press to select sub-functions; coarse enable parameter is set. Switch the display contents of the main function to check the current settings. -
Page 4: Operation Panel Interface
Each function interface 2.1 Foundation work Interface RUN / LOCK: 1) output on or off operation: Press (less than 2 seconds), the output on or off, the highest priority. Immediately determined difference between the current real-time voltage and current provided to the open current voltage if the output is turned on (refer to the Appendix 1) 2) Parameter lock and unlock methods: Press more than 2 seconds to lock the trigger parameters, first press flipping only once. -
Page 5: The Voltage-Current Adjustment Setting Screen (When Toggle Wheel)
2.2 the voltage-current adjustment setting screen (when toggle wheel) 2.2.1 Select Set voltage or current Method: In the non-LOCK state, the main interface SET key press, to modify the "current wheel adjustment item" ( ◀ I ▶ or ◀ U ▶) . select ◀... -
Page 6: Browse Display Mode
2.2.3 How coarse or fine change the values: Coarse: Long press the SET key, while the toggle trackwheel, a coarse adjustment voltage 0.3V per step, stepping current 30mA. Fine: when SET key is not pressed, a jog dial, when the voltage step 0.01V, current stepping 1mA. 2.2.4 The factory default setting voltage 3.000V, the default setting current 1.000A. -
Page 7: Settings Menu
Displaying a menu page status area: ON / CC / CV / OFF Channel number displayed after the connection is displayed Real-time voltage Device ID number Real-time current Hardware version number Software version number 2.4 Setting menu Press button DISP / MENU enter the setup menu by the SET key, to cycle solid angular position, ENCODER scrolling menu item pointing triangle "Menuitem";... -
Page 8: Wireless Address Modification Method
serial number Set voltage Set Current The default value can be modified by Q_SET.TXT documents, the contents of the file as shown below, changes take effect after the restart. Set voltage (0.01V ~ 30. 000V) Set current (0.005A ~ 5. 000A) Serial number (up to 10) File name 2.6 Wireless address modification method... -
Page 9: The Method
Indicator Definition A: lamp output terminal (for details see FIG. 1): Normal full light output, it turns off when the output is off, the output off after 1 minute, go to sleep output off after six minutes, Quanmie off. B: panel lights (for details see FIG. 1): 1) When the output is off, the blue light in the upper respiratory state;... -
Page 10: Described In
Upgrade Press the power button of the SET, while usb connected to the computer with the USB cable, the computer name will appear: DFU Vx_xx_x removable hard disk, the Prepared .hex firmware copied to the root directory of the mobile disk, the firmware when the extension becomes .rdy .hex, power restart, the firmware is completed upgrade.
