Summary of Contents for ZeroKey QTM-UAR10
- Page 1 Quantum RTLS Universal Device Manual Quantum RTLS Universal Device Manual v1.0.4 Quantum RTLS Universal Anchor (QTM-UAR10) Quantum RTLS Universal Mobile (QTM-UMR10) Quantum RTLS Universal Tag (QTM-SMR10) 2021-12-02...
- Page 2 Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification, or alteration is authorized in writing by ZeroKey; or (2) the serial number of the product is defaced or missing.
- Page 3 Conformitè Europëenne (CE) rules and regulations. FCC Regulatory Statement Model(s): QTM-UAR10, Model QTM-UMR10, QTM-SMR10 FCC ID: 2AX6LQTMUR10 Caution: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
- Page 4 Quantum RTLS Universal Device Manual ISED Regulatory Statement Model: QTM-UAR10, Model QTM-UMR10, QTM-SMR10 IC: 26679-QTMUR10 CAN ICES-003(B)/NMB-003(B) This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference.
-
Page 5: Table Of Contents
..............................9 MOUNTING 3.1.1 Clip-on ..............................9 3.1.2 Adjustable Stand ............................ 10 ..............................11 ALIBRATION OPERATION ..............................12 QTM-UAR10 ............................... 12 QTM-UMR10 .............................. 12 CHARGING ..............................13 PRODUCT CARE ............................14 ..............................14 GENERAL CARE 6.1.1 Cleaning ..............................14 6.1.2 Operating Temperature ......................... -
Page 6: Preface
Quantum RTLS Universal Device Manual 1 PREFACE 1.1 ABOUT THIS GUIDE This guide contains the information you will need to operate the QTM-UAR10 and QTM-UMR10 with the Quantum RTLS system. 1.2 WHERE TO FIND MORE INFORMATION Refer to the following sources for additional information and for product and software updates. -
Page 7: Product Overview

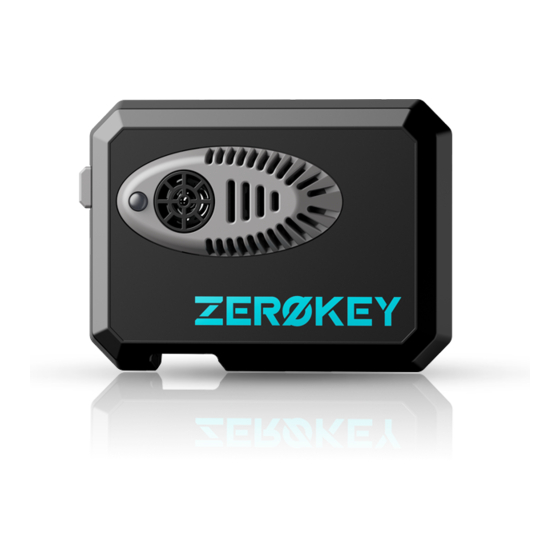

Emphasizes a word or a phrase. 2 PRODUCT OVERVIEW The QTM-UAR10 is configured for use as an Anchor node. It is one of many reference nodes in the tracking system. This Anchor node is the stationary, tracking reference node that should not be moved after system calibration. -
Page 8: Connector(S)
IGHT LERT Upon boot-up, the QTM-UAR10 LED will turn solid white for 1 second, then turn solid red for 1 second before entering idle state. Upon boot-up of the QTM-UMR10, the LED will turn solid white for 1 second, then turn solid red for 5 seconds before entering idle state. -
Page 9: Installation
The QTM-UAR10/QTM-UMR10 features an opening on the back of the device to provide flexible mounting options. This opening can be used to secure the node with materials such as cable ties or Velcro. ZeroKey has two mounting apparatuses’ available that are designed to install into this opening. -
Page 10: Adjustable Stand
Use the holes on the mount to secure to its install location. If using to mount an Anchor node (QTM-UAR10), ensure the device is secure in its mounting location so that there is no risk of it moving after calibration. Adjust the angle of the mount as needed so that the transducer of the node is pointing towards the tracked space. -
Page 11: Calibration
3.2 CALIBRATION Before regular system operation can occur, all Anchor nodes must undergo calibration. With the Gateway of the Quantum RTLS system connected to a PC, use the ZeroKey Configuration Tool for step- by-step guidance through the calibration process. NOTE: For more information on system calibration, see ZeroKey Support Materials at zerokey.com. -
Page 12: Operation
In order to preserve battery life, the anchor node enters a deep sleep if it does not pick up other ZeroKey radio activity for 2 consecutive minutes. This occurs when the system is running idle and not actively positioning. Once in this mode the anchor node will wake up every 30 seconds to determine whether to assume normal activity. -
Page 13: Charging
The device contains a rechargeable lithium polymer battery and can be successfully recharged over 600 times. A QTM-UAR10/QTM-UMR10 takes around 1 hour to fully charge. While charging, the LED will remain red, and will turn off when charging is complete. The QTM-UAR10/QTM-UMR10 contains circuitry that is designed to inhibit charging the battery at temperatures below 0°C (32°F) which could... -
Page 14: Product Care
Quantum RTLS Universal Device Manual 6 PRODUCT CARE 6.1 GENERAL CARE 6.1.1 C LEANING The device can be cleaned using a moistened soft cloth and nonabrasive hand/dish soap. DO NOT IMMERSE. Wipe dry to prevent any moisture build up. 6.1.2 O PERATING EMPERATURE This device is designed to operate from -10°C to +50°C ambient. -
Page 15: Repairs And Disposal
RMA form. 7.4 DISPOSAL OF DEVICE The QTM-UAR10/QTM-UMR10 must be sent to an electronics recycling depot to reclaim the electronics. Please contact your nearest electronics recycling company for details on their collection requirements. 2021-12-02... -
Page 16: Appendix A - Specifications
Quantum RTLS Universal Device Manual APPENDIX A – SPECIFICATIONS Dimensions 62.4 x 45.3 x 17.7 Weight Accuracy (Ultrasonic) 1.5 mm Update Rate 20 Hz Charge Port Micro-USB Battery Life 24 hours (typical) Maximum Range 20 m Wi-Fi Coexistence Bluetooth Coexistence Operating Temperature -10 to 50°C Operating Humidity... -
Page 17: Appendix B - Mechanical Drawings
Quantum RTLS Universal Device Manual APPENDIX B – MECHANICAL DRAWINGS 2021-12-02... -
Page 18: Appendix C - System Diagram
Quantum RTLS Universal Device Manual APPENDIX C – SYSTEM DIAGRAM 2021-12-02...
