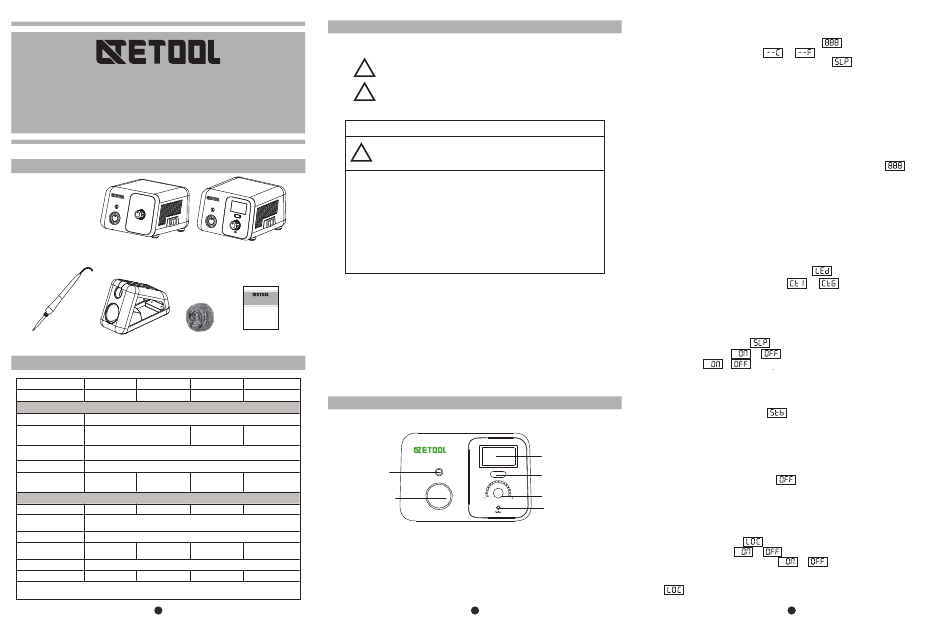

ATETOOL AE988 User Manual

User Manual
AE988/AE988D/AE970/AE970D
Soldering Station
Packing List
Main unit: 1pc
Handle: 1pc
Iron stand: 1pc
User manual: 1pc
Brass wool: 1pc
Main unit （ AE988/AE970)
Handle
Iron stand Brass wool
Product Specification
AE988 AE970
Model No.
70W 80W
Total Power
Main Unit
Output voltage
25VAC
Temperature
200－480℃(392-896℉)
range
±1℃ （±1.8℉） {〉 200℃(400℉)}
Temperature
stability
Dimension 148x120x85mm
weight（power cable
1.32kg 1.32kg
excluded）
Handle
65W 75W
Power consumption
Tip to ground <2Ω
impedance
Tip to ground voltage <2mV
PTC ceramic
Integrated tip
Heating element
heater
1.2m
Cable length
Weight 68g
79g
Note: specifications and appearance are subject to change for product improvement without prior
notice
1
Safety and Precautions
The precautions in this manual are divided into the following [warning] and [attention].
Please fully understand the content.
!
!
For your own safety, please strictly abide by the following precautions
When power is on, the temperature of the soldering iron tip might reach to
!
50 ~ 550 ℃ (120 ~ 1022℉).
Misuse may cause burns and fire, please strictly observe the following precautions:
● Do not touch the soldering iron tip or the metal part around it while using
● Do not use it around combustibles
● Inform the people around of the potential risk caused by high temperature
● Turn the power off when not in use
● Before replacing parts or tip, turn off the power and wait till the iron tip cools down
● Do not use this product if you are inexperienced or have no sufficient necessary knowledge
without the guidance of related qualified personnel
Main unit （ AE988D/AE970D)
● Please keep it out of reach of children
● If the power cord is damaged, please ask the manufacturer or its service agent or similar qualified
personnel to repair it, so as to avoid personal injury or damage to product
Please strictly observe the following precautions, otherwise it may cause injuries or death
● Do not use this product for works other than soldering
使用说明书
AE988/AE988D/AE970/AE970D 电焊台
● Do not hit the handle hard for removing the tin on the iron tip
● Do not modify this product
User manual ● When replace parts, must use original ATETOOL parts
● Do not soak the product in water or use it with wet hands
● Unplug it properly after using
● Smoke will be emitted during soldering, please use it in open space
● Do not engage in other dangerous acts with this product
AE988D
AE970D
70W 80W
Using Method(AE988D/AE970D)
1.Operation and display instructions
50－500℃ 150－550℃
(122-932℉) (302-1022℉)
Indicator
1.33kg 1.334kg
Socket
65W 75W
Panel display:
PTC ceramic
Integrated tip
LED segment:
heater
Indicator:
Function key:
79g 68g
Knob:
Calibration hole: for calibrate the temperature
Warning: misuse may cause death or serious injury to the user
Note: misuse may cause injury to users or substantial damage to objects involved
Warning
LED segment
Function key
Knob
Calibration hole
digital display
indicates the statement of heater (light on/off means power on/off)
function operation
to adjust temperature
2
2.Turn on the power switch
After switching on, indicator lights up and LED segment displays
And then it displays the temperature unit or for 1 second, so you know which unit is used
right now. If the standby function is enabled in this soldering station,
to show standby function is available. Then displays the set temperature for 1.5 seconds, and finally displays
the real time temperature. When the temperature is stable, indicator will flash.
Note: when not in use, please put the soldering iron on the holder. If it won't be used for a while, please cut off
the power supply.
3.After use
After use, please clean the soldering iron tip and apply new solder on it.
4.Temperature unit conversion
First press function key, in the meanwhile switch on the power, till LED segment displays
the function key, now the temperature unit changes. If it was Fahrenheit, now switch to Celsius, and vice versa.
5.Temperature adjustment
Temperature range
AE988D：50-500℃（122-932℉）
AE970D：150-550℃（302-1022℉, note: as LED segment shows only 3 digits, 1022 will be displayed as A22,
"A" represents digit "10"）
Temperature adjusted by knob.
6.Screen brightness setting
1) Press and hold the function key till the the screen displays , to enter the brightness setting.
2) Show the current digital display brightness level -
3) Adjust the brightness level through the knob: gear 1-6.
4) Press the function key or wait for 10s to automatically save to complete the setting.
7.Standby and sleep functions
Standby function on and off:
1)Press and hold the function key till display on LED segment to enter the standby function on/off setting:
2)Display the current setting or
3)Adjust by knob: or to turn on/off the standby and sleep function.
4)Press the function key or wait for 10s to automatically save to complete the setting.
Standby function
1)When standby function is turned on, the soldering station will enter standby mode after not in use for 10 minutes.
and temperature drops to 250 ℃ (482 ℉).
2)In standby mode, LED segment displays
3)When any operation is detected, such as using the soldering iron, adjusting knob or pressing the function key,
it will return to the work mode.
4)When in standby mode, if no further operation is detected for 10 minutes, it will enter sleep mode.
Sleep function:
1)That short press the function key or long time in standby mode can make it enter sleep mode:
2)When entering sleep mode, screen displays and heating is turn off.
3)Press the function key to return to normal heating work mode.
8.Temperature locking function:
Temperature locking function on and off:
1)Turning the knob to adjust the temperature to be set.
2)Long press the function key till is displayed.
3)Now LEd segment displays or .
4)Turn the knob to set the locking function to be or .
5)Press the function key or wait for 10s to automatically save to complete the setting.
6)When the temperature is locked, adjusting the knob does not change the setting temperature, it will display
for 1 second to show that the current temperature is locked.
3
for 1 second, now power is on.
will be displayed for 1 second
, release
.
