MICRO ROBOTICS 5905 Instruction Manual

VM2 Breakout Board
Introduction
The 5905 Breakout Board for the VM2 Controller provides interfaces to the VM2's first RS232 serial port; the
2
first I C bus, and a regulated supply voltage. All of the VM2's connector pins are taken out to two prototyping
areas so you can prototype your VM2 application.
Size - 150 x 100mm
Unpacking
You should have:
5905 Breakout Board
•
Power Connector
•
These instructions
•
WARNING: Users of Micro-Robotics Control Equipment should be aware of the possibility of a system failure, and must consider the
implications of such failure. Micro-Robotics Ltd. can accept no responsibility for loss, injury, or damage resulting from the failure of our
equipment. Use of our products in applications where their failure to perform as specified could result in injury or death is expressly
forbidden.
Copyright 2002-2006 Micro-Robotics Ltd
The Old Maltings
135 Ditton Walk
Cambridge
CB5 8QB
Doc D041 V20090119
Power
Serial
Reg
VM2

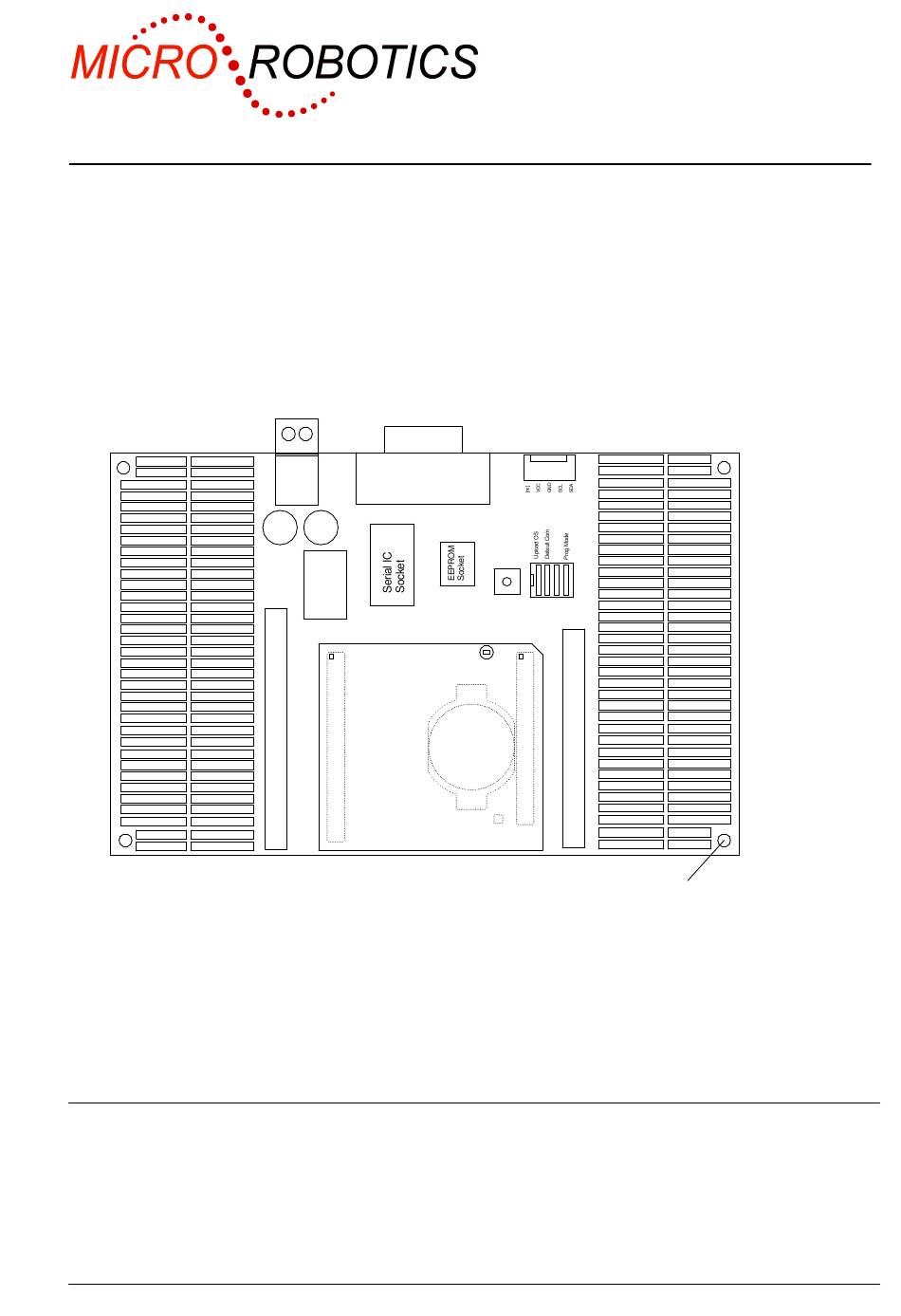

VM2 Breakout Board
VM2 Breakout Board
Prototype Area:
Groups of 6 pads connected with cuttable tracks.
0.1" Grid, 2mm pads, 1mm hole, Plated through.
Indication of grouping on silk screen.
I2C Bus 1
Reset
4 off 3.5 mm holes on
142 x 92 mm rectangle.
5905
tel: +44 (0) 1223 523100
fax: +44 (0) 1223 524242
sales@microrobotics.co.uk
www.microrobotics.co.uk
Page 1 of 3
