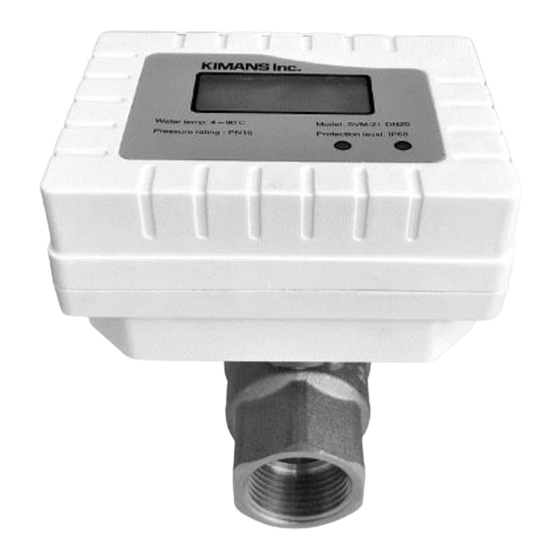

SMART VALVE SVM-21
SMART M-BUS VALVE
Attention:
Installation should only be carried out by qualified and trained personnel
Violation and removal of the manufacturer's seals is not allowed, otherwise the warranties are void
Welding on pipes near the smart valve is prohibited. The device must be dismounted before welding
The ambient temperature should be between -25 °C and 65 °
User Manual
Advertisement
Table of Contents
Summary of Contents for Kimans SVM-21
- Page 1 SMART VALVE SVM-21 SMART M-BUS VALVE Attention: Installation should only be carried out by qualified and trained personnel Violation and removal of the manufacturer's seals is not allowed, otherwise the warranties are void Welding on pipes near the smart valve is prohibited. The device must be dismounted before welding The ambient temperature should be between -25 °C and 65 °...
- Page 2 Table of content General ..................................3 1.1 Operating conditions .............................. 3 2. Transport and storage ..............................4 3. Assembly / Installation ..............................4 3.1 Installation: ................................4 4. Communication ................................5 4.1 M-Bus wired ................................5 5. Software ................................... 5 5.1 User interface ................................
- Page 3 1. General This guide is intended for trained specialized personnel. For this reason, no basic working steps are included. The smart valve tamper-evident seal must not be damaged! A damaged seal will result in immediate invalidation of the factory warranty and verification or declaration of conformity.
- Page 4 2. Transport and storage Unpacking Smart valves are control valves which must be handled with care. To protect against damage and soiling, they should only be unpacked immediately prior to installation. Transport The transport of the smart valve is permitted only in the original package. Storage ▪...
- Page 5 4. Communication 4.1 M-Bus wired A 2 pin M-Bus line lead out of the housing. Connect the M-Bus line with the marked connections of the M-Bus Master. ▪ Standardized according to EN 13757-3 ▪ Galvanic isolation ▪ Polarity reversal protection ▪...
- Page 6 5.2 Smart valve control screen 5.2.1 Valve status check 5.2.2 Valve close command...
- Page 7 5.2.3 Valve open command 6. Maintenance Smart valve may not be disconnected from the integrator. After repair work, perform software testing to ensure valve operation. 7. Disposal The smart valve contains a lithium battery, which is not rechargeable. Do not use force to open the battery.
- Page 8 Kimans Inc. www.kimans.com...
