Summary of Contents for Halo CK10

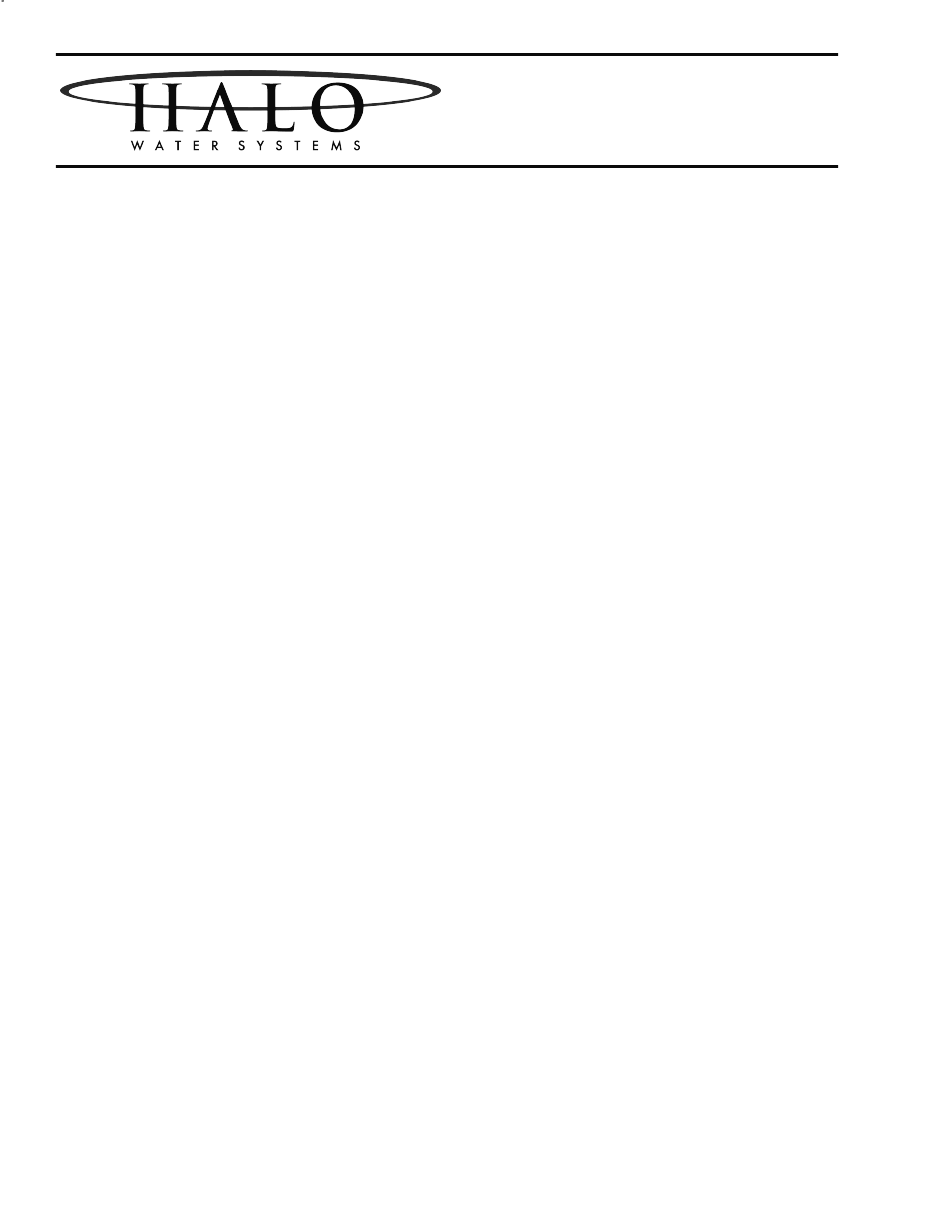

- Page 1 OPERATING MANUAL WATER SOFTENER with CK10 Metered Valve Page 1...
-
Page 2: Table Of Contents
Table of Contents Introduction General Warnings..........3 Principles Of Softening-Ion Exchange....3 Valve Specifi cations............4 Model Specifi cations............5 Assembly................6 Control Valve Function............7 Regeneration Steps and Purpose......7 Exchange Capacity Data........7 Installation................8 Start Up................12 General Operation.............13 Advanced Programming............14 Page 2... -
Page 3: General Warnings
General Warning and establishes the service piston positions. The display should The control valve, fi ttings and, or bypass are designed to fl ash all wording, then fl ash the software version (e.g. 154) and accommodate minor plumbing misalignments but are not the reset the valve to the service position. - Page 4 Specifi cations TABLE 1 Minimum/Maximum Operating Pressure 20-125 psi Minimum/Maximum Operating Temperature 40°F (4°C) -110°F (38°C) Current Draw & Voltage 0.5 Amperes 110 Volts Other options available Table 2 contains a summary of specifi cations for the control valve and bypass valve. Quick Reference Valve Specifi...
-
Page 5: Control Valve Function
Control Valve Function and Cycles of Operation The glass fi lled Noryl fully automatic control valve is designed as The transformer power pack comes with a 15-foot power cord the primary control center to direct and regulate all cycles of a wa- and is designed for use with the control valve. -
Page 6: Installation
Installation Preview Conduct a visual check of all equipment for any damage that Warning: When piping with copper, solder all piping as may have occurred during shipment. subassemblies before installing. Internal damage can result from the high heat of the torch. Note: If there is obvious damage to any equipment, it should be noted on the carrier’s Bill Of Lading. - Page 7 Figure 1: Plumbing with by pass (STANDARD). Figure 2: Plumbing with 3 valve bypass. Figure 3: Bypass (STANDARD). Figure 4: 3 valve bypass plumbing. When installing sweat copper follow state and federal codes by using a lead free solder and fl ux. Use a joint compound to seal threaded pipe.
- Page 8 STEP 3: Note: When assembling the installation fi tting pack- Move Filter age, connect the fi tting to the plumbing system fi rst into place and then attach the nut, split ring, and o-ring. Heat from soldering or solvent cements may damage the Make sure fl...
- Page 9 Connect the Drain Line If the drain is a 5/8” fl exible poly tube, slide the nut onto the poly tube, then place the poly tube insert into the end of the poly tube and tighten the nut on to the 3/4” drain line fi tting. The nut is only designed for use with fl...
-
Page 10: Start Up
Step 5: Start-Up Add salt to the brine tank. Turn the water heater back on. Using a bucket, pour approximately 3 gallons of water into the The valve is preprogrammed at the factory for the most effi cient brine tank. operation. -
Page 11: General Operation
General Operation When the system is operating one of two displays will be shown. Press ing NEXT will alternate between the dis plays. One of the displays is always the current time of day. The second display is one of the fol low ing: days remaining or gallons remaining. - Page 12 STEP 1S OEM Softener System Setup Quick Reference This is a quick reference setup procedure. See OEM Softener System Setup Detail for more STEP 2S information on available settings. STEP 1S – Press NEXT and Down buttons simultaneously for 3 seconds. If screen in step 2S does not appear in 5 seconds the lock on the valve is activated.
- Page 13 Setting Options Table Volume Regeneration Result Capacity Time Option Override Reserve capacity automatically estimated. AUTO NORMAL Regeneration occurs when volume capacity falls below the reserve capacity at the next Regen Set Time Reserve capacity automatically estimated. Regeneration occurs at the next Regen Set Time when volume capacity AUTO NORMAL number...
- Page 14 Installer Display Settings STEP 1I STEP 1I - Press NEXT and Up simultaneously for 3 seconds. STEP 2I – Hardness: Set the amount of hardness in grains of hardness as calcium car bon ate per gallon using the Down or Up buttons. The default is 20 with value ranges from 1 to 150 in 1 grain increments.
- Page 15 Regeneration Mode Typically a system is set to regenerate at a time of low water usage. An example of a time with low water usage is when a household is asleep. If there is a demand for water when the system is regenerating, untreated water will be used.
- Page 16 Diagnostics STEP 1D STEP 1D – Press Down or Up simultaneously for three seconds. If screen in step 2D does not appear in 5 seconds the lock on the valve is activated. To unlock press Down, NEXT, Up, and SET CLOCK in sequence, then press NEXT and Down simultaneously for 3 seconds.
- Page 17 STEP 1VH Valve History STEP 1VH – Press Up and Down simultaneously for three seconds and release. Then press Up and Down si mul ta neous ly and release. If screen in step 2VH does not STEP 1VH appear in 5 seconds the lock on the valve is activated. To unlock press Down, NEXT, Up, and SET CLOCK in sequence, then press Up and Down si mul ta neous ly for 3 seconds and release.
- Page 18 RESIDENTIAL WATER CONDITIONING LIMITED WARRANTY This Water Conditioner is guaranteed to be free of material of manufacturing defects at the time of installation, where originally installed. The warranty period begins on the installation date, but shall not begin later than six (6) months from the date of manufacture.
- Page 19 Softener Panel 5 Button To Change Factory Settings: Diagnostic: Simultaneously Press NEXT & UP then release: Simultaneously Press UP & DOWN then release: 1. Number of Days Since Last Regen 1. Configuration ........... Softener Press Next: Press Next: 2. Number of Gallons Since Last Regen 2.
