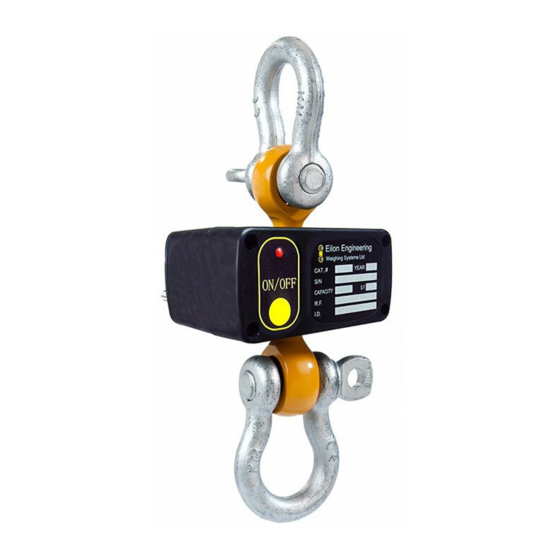

RON 2501 WIRELESS DYNAMOMETER
Eilon Engineering
5.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RON 2501 and is the answer not in the manual?

Questions and answers

Related Manuals for Eilon Engineering RON 2501

Summary of Contents for Eilon Engineering RON 2501

  • Page 1 RON 2501 WIRELESS DYNAMOMETER Eilon Engineering...
  • Page 2 USER'S GUIDE AND INSTRUCTION MANUAL FOR Ron 2501 Shackle Type Hook Type © Eilon Engineering Industrial Weighing Systems Ltd. Phone 1-888-778-8064 • Web www.eilon-engineering.com E-mail: info@eilon-engineering.com...

  • Page 3: Table Of Contents

    Table of Contents General Cautions and Warnings Eilon Engineering Limited Warranty 1. General Description 2. Basic Operation 2.1 - General operation of the keyboard: 2.2 - Tare 2.3 - Max (a.k.a. Peak Hold) 2.4 - Overload Warnings 2.5 - Battery Care 3.

  • Page 4: General Cautions And Warnings

    25% of its rated capacity, no more than once per year. Eilon Engineering will accept no liability for damage caused by the product being used in excess of the working load limit or from abuse.
  • Page 5 engineering personnel should be consulted before using the system to measure dynamic loads. Avoid bending, twisting, side loading and off-axis loading. When connecting the load cell in order to measure forces or loads, special care should be taken in choosing appropriate shackles or other connecting accessories that will permit free movement and prevent bending moments and twisting in the load cell.
  • Page 6 No amount of safety features and engineering can be a substitute for common sense and a desire to work safely. The Ron 2501 relies on wireless communication. Like all wireless devices it is susceptible to interference and other reception issues.

  • Page 7: Eilon Engineering Limited Warranty

    Warranty Period explicitly stated in the Eilon Engineering Ltd. literature that accompanies the product, Eilon Engineering Ltd. will replace or repair the part at no charge at the sole discretion of Eilon Engineering Ltd. This warranty specifically excludes shipping costs.

  • Page 8: General Description

    1. General Description Ron Crane Scale and Dynamometer basic information. The Ron 2501 is available either as a Shackle or Hook Type. The system consists of a Load Cell and an indicator. The indicator includes a 6 digit 0.5" (12 mm) LCD display and front panel standard with a nine button keypad.

  • Page 9: Basic Operation

    2. Basic Operation Basic operation of Ron systems and helpful tips and tricks Before operation, be sure the shackles you intend to use are appropriate for the system (see shackle specification table). Press the key to turn the system on. The display will read BATT, then the percentage of remaining battery life of the indicator and then the load cell, followed by the unit of measurement.

  • Page 10: Tare

    upon completion of the code, but the beep will still follow each valid key press. If the passcode is not accepted, the display will read COD.E.R. In this case, a new attempt should be made. (See Calibration for more.) 2.2 - Tare Switching between Gross and Net modes The system features a Tare function that enables the user to ensure the display reads 0 even though there may be weight on the system such as from a sling, shackles or a...

  • Page 11: Overload Warnings

    max and not the current weight. The system will go back to the current value then a beep will sound indicating that the system is ready for a new operation. The MAX memory is cleared every time the system is powered down or the mode is changed between Net and Gross or Zero is applied.

  • Page 12: Battery Care

    2.5 - Battery Care Maintenance of Ron 2501 batteries for top performance The standard system is powered by two AA 1.5V disposable alkaline batteries in bothe the indicator and load cell. Batteries rated 3AH will result in at least 2000 hours of battery life (more than two months of continuous use).
  • Page 13 2.5.1 - Rechargeable Batteries Though we recommend standard alkaline AA batteries, rechargeable batteries are offered. This option includes 2 AA NiMH 2700 mA rechargeable batteries. The system is supplied with a external wall charger. The batteries should be charged: Prior to using the unit for the first time. Before use, if more than two months have passed since the last charge.

  • Page 14: Calibration

    3. Calibration Performing additional calibration and adjustment to the system Note It is recommended that calibration be performed by authorized and skilled personnel only! It should be performed using an accurate known weight or in a laboratory. nless otherwise required by local laws, it is recommended that the system be calibrated annually.

  • Page 15: Multi Point Calibration

    Once the system is unloaded, press OK. The display will flash WAIT for a few seconds and then L.VALU (load value). This means that the load of a known weight intended for calibration is ready to be applied. Once the known weight has been applied (lifted), press OK. The display will show APPLY followed by the max capacity of the system.
  • Page 16 This means that the load of a known weight intended for calibration is ready to be applied. Important Note: Known weight must be at least 80% of the load cells capacity. (e.g for a 1000 kg capacity system at least 800 kg must be used) Once the known weight has been applied (lifted), press OK.

  • Page 17: Configuration

    (see CALIBRATION section 3.0). At any time you may press ◀ ESC to exit a menu. 4.1 Backlight The Ron 2501 is equipped with a backlight for use in low light environments. The backlight is activated using the button.

  • Page 18: Units, User Selectable

    4.2 Units, user selectable Press and hold Menu/OK Use the arrow keys ▲▼ to scroll through the available options until you see UNITS and press OK. The current unit in use will be displayed. Use the arrow keys again and scroll to the desired unit of measurement.

  • Page 19: Rs-232 Digital Output Communication Data (Optional, If Included)

    4.4 RS-232 Digital Output Communication Data (Optional, if included) Possible baud rates: 9,600 - 19,200 - 38,400 - 115,200. Length: 8 bits Stop bits: 1 bit Paring bit: none Data output modes: The RS-232 output on Ron systems has two modes of data output that are selectable by the user: on demand and continuous stream.
  • Page 20 a rate of about once per second. If there is no change to the load value, no data will be output. When the system is first turned on, it will output a lead section of six lines. The first five of these are the system's owner identification info and must be factory set. If no instructions were given at the time of ordering, these lines will be blank.
  • Page 21 Electronic specifications: Transmission rate: 9600 bps or higher Byte type: hexadecimal Length of each byte: 8 bits Parity: none Flow control: none Stop bit: 1 Line information content: 10-19 designations ( see # in table ). Line Length in bytes varies and depends on which object in the range of possibilities is actually activated.
  • Page 22 Fig # 1A WIN2000 HyperTerminal output file of Fig. # 1B scanned printout of Ron with RTC and Data Logger installed : a session of continuous measurements over a few seconds ( RTC not installed, Data Logger installed ) : LOAD UNITS TARE...

  • Page 23: Totalizer (Optional, If Included)

    4.5 Totalizer (Optional, if included) The totalizer is available as part of the data logger option or as a stand-alone option. The stand-alone version does not include the RS232 output for downloading data to a PC. The totalizer memory can hold roughly 25,000 load values and these can be stored in load groups whose combined totals will be separate from one another.

  • Page 24: Manual Data Logger (Optional, If Included)

    4.6 Manual Data Logger (Optional, if included) The standard data logger (D.L.) stores measurements in the indicator's internal memory. Data logger is capable of storing up 50,000 lines Each single line of data stored in the D.L. memory includes: ● The unit of measurement (Lbs, Kg, kN etc.) ●...

  • Page 25: Automatic Data Logger (Optional, If Included)

    D) Downloading the stored info to PC/serial printer: Note that for a PC, you will need to use a terminal emulator such as Microsoft's HyperTerminal™. Press and hold the Menu/OK button until a beep is heard. Use the arrow keys▲▼ to select DATA.L from the options menu and press OK. Use the arrow keys▲▼...

  • Page 26: Multiple Wire Rope Falls (Optional, If Included)

    Time Interval (T) selection Press and hold the Menu/OK button until a beep is heard. Use the arrow keys▲▼ to select DATA.L, press Menu/OK. Use the arrow keys▲▼and select T.VALUE Press: OK Display: DAY Press: ENTER Display: 0000 – The two digits on the left will be blinking. Use the arrows keys to select the number of days.

  • Page 27: Dampened Reading Aka Averaging

    The system will multiply the sensed load by any number selected by the user to suit the actual reeving arrangement for a given set up. The overload threshold levels also receive the correct values which are the measured threshold levels multiplied by the number of falls.

  • Page 28: Connector Cables

    The dampening option calculates the average load based on the measurements taken over a given number of seconds (here called T). When measuring begins, the first reading will show after about one second. After two seconds, the display will show a reading based on the average of the readings from the first two seconds.

  • Page 29: Multiple Load Cells With Single Indicator

    100 hours. The load cells in the multi load cell system will last, as in the standard Ron 2501, more than 2000 hours. Switching between individual load cells and SUM display: Pressing ESC will cycle through all of the currently active load cells.
  • Page 30 To move to the next load cell press the Up or Down arrow keys ( ▲▼) In this way you can change any of the load cells to be active or inactive. To exit press Menu/OK. This display will read OK and then return to the standard measuring screen.

  • Page 31: Troubleshooting

    5. Troubleshooting 1. The system will not turn on: After the system has been turned off, you must wait a few seconds before turning it on again. Try again after waiting about 10 seconds. Open the battery compartment cover. Check the battery connection and wiring.
  • Page 32 6. The system switches itself off: a) Check the batteries (see battery care section). Try to operate the system without the extension cable as per #5. If this is the problem, replace the cable. If the problem persists, send the system to be checked in an authorized service laboratory.

  • Page 33: Error Table

    6. Error Table Error codes that may appear on the Ron 2501 indicator display E=Eilon only Error Description S=User Serviceable E1, E2, E3 EEprom Erron Read/Write Calibration or EEprom memory error Calibration Baud Watch Timer Scrolling Capacity 10% higher than allowed. Recalibrate. Do not load the system with a weight higher than the test load.

  • Page 34: Suitable Shackles

    When ordering shackles, it is strongly recommended to verify the maximum shackle pin diameter and the dimension between pin holes to fit the load cell. Eilon Engineering Ltd reserves the right to make changes in design, specifications, and price without notice.
