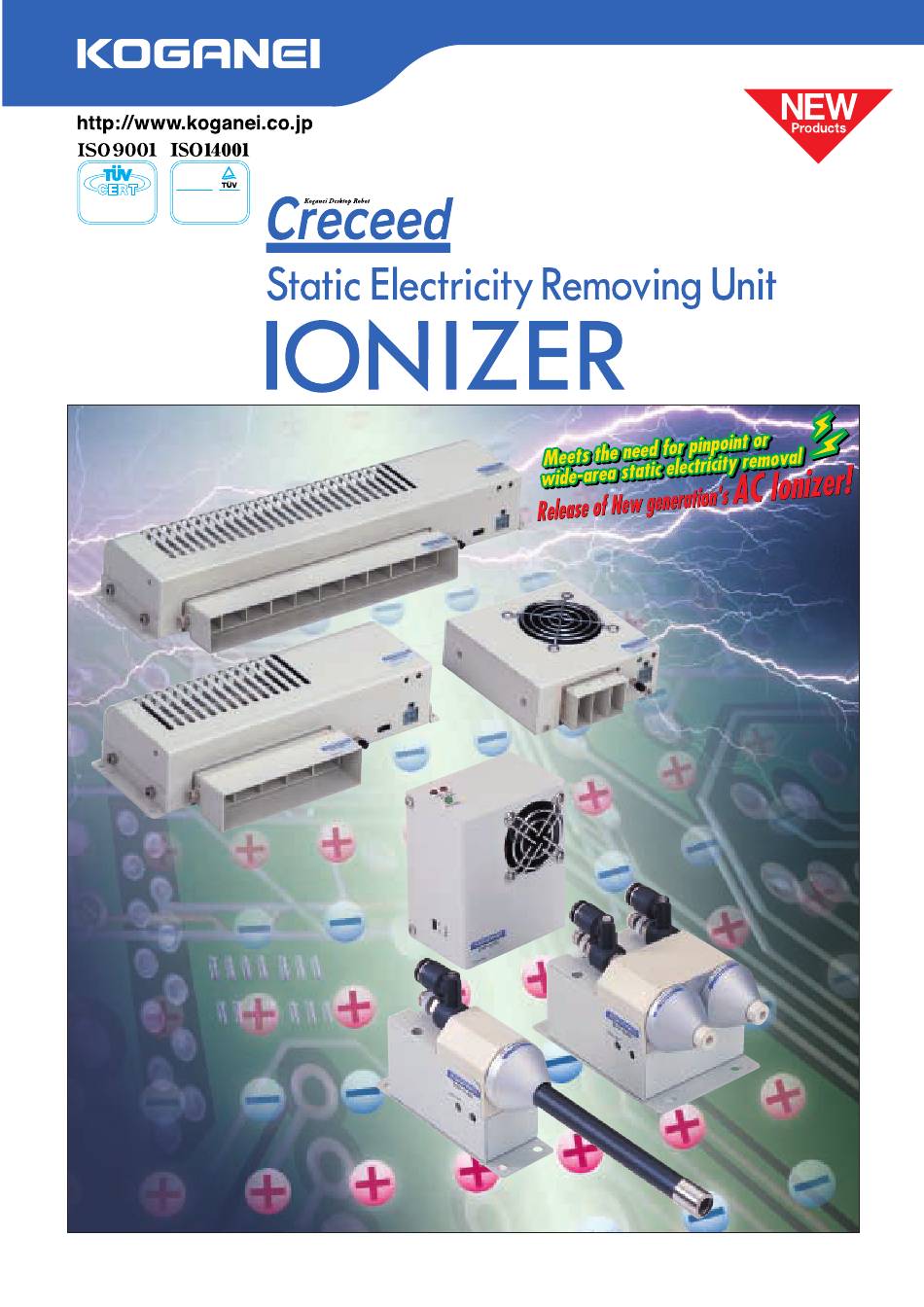

- Page 1 Catalog No.BKC0010 TUV Rheinland / œœ Berlin Brandenburg Anlagentechnik GmbH DIN EN ISO 9001 ISO 14001, JIS Q 14001 JIS Z 9901 Certificate-No.: 09 104 8118 Certificate:09 100 5919...
-
Page 2: Application Example
●A strong electric field is generated at the high voltage applying section in current ionizers. This can cause breakage of the device when bringing the ionizer close. However, the Koganei Ionizer causes no damage to the device even when bringing it close. - Page 3 Caution Please always read the “Safety Precautions” on p.5 before use. Various applications are possible by replacing the choice of nozzle. Standard nozzle Conventional method (commercial frequency) DTRY-NZR01 50/60Hz Voltage Voltage (+) Voltage (-) →Time ＋ − ＋ ＋ − ＋ ＋ − ＋ ＋ ...
-
Page 4: Application Examples
Fan type Turbo-flow fan type Wide-flow fan type DTRY-ELW12 DTRY-ELW11 Application DTRY-ELF01 Flow direction-adjusting example DTRY-ELT11 bracket (option) ■Compact body unit allows installation ■You can make pinpoint static electricity removal ■Most suitable for static electricity removal for wide and large work pieces. in confined spaces such as inside application for distant work pieces. - Page 5 Graphs of Static Electricity Removing Characteristics Main Unit : DTRY-ELB01 Nozzle : DTRY-NZR01 Main Unit : DTRY-ELB01 Nozzle : DTRY-NZR□ ＋ ＋ Static Electricity Removing Characteristics obtained when the Standard Nozzle is used Flexible Pipe Length and Static Electricity Removing Characteristics Positive static electricity removal 100mm ...
- Page 6 Always read these precautions carefully before use. Safety precautions (IONIZER) Before selecting and using products, please read all the Safety Precautions carefully to ensure proper product use. The Safety Precautions shown below are to help you use the product safely and correctly, and to prevent injury or damage to assets beforehand. Follow the Safety Precautions for: ISO4414 (Pneumatic fluid power--Recommendations for the application of equipment to transmission and control systems), JIS B 8370 (Pneumatic system regulations) “DANGER!”...
-
Page 7: Installation
4. In case the unit turns faulty, it will have to be adjusted and repaired by functions. specialized personnel. Contact Koganei for such a service. KOGANEI cannot be responsible if these items are not properly 5. To replace the discharging needle of the Blow Type unit, a dedicated tool observed. -
Page 8: Specifications

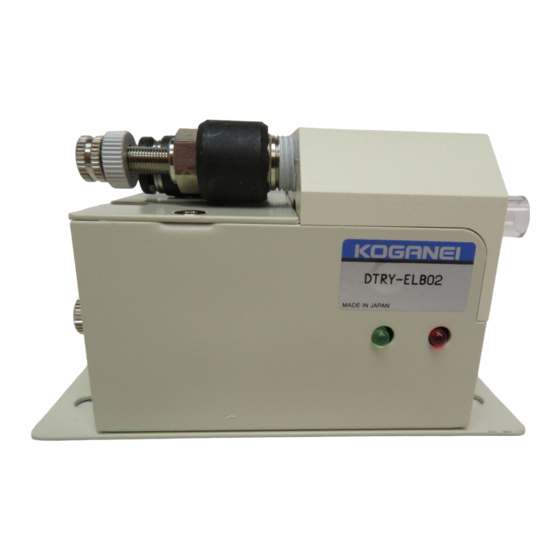

Specifications ■ Blow Type Model DTRY-ELB01 DTRY-ELB02 Item (Main Unit for a Single Nozzle) (Main Unit for Twin Nozzles) Power supply Note 1 24 VDC ± 5% Consumption current Approx. 100 Operating high-voltage power supply Miniaturized AC high-voltage high-frequency type Output voltage Approx. 2 Note 2 Power safety circuit Alarm signal output when abnormality in high-voltage section. (When this unit is used, supply air continuously.) Abnormal output circuit Open collector 24 VDC (10 mA, max.) Outer dimensions 92 (L) × 30 (W) × 54 (H) (Main unit only) 92 (L) × 62 (W) × 54 (H) (Main unit only) Mass 190 (Main unit only) - Page 9 ■ Turbo-flow fan type ionizer Item Model DTRY-ELT11 Power supply DC24V ±10％ Operating high-voltage power supply Miniaturized AC high-voltage high-frequency type Consumption current Output voltage About 2 Power supply When the supply power is turned on, POWER LED (green) on the front of the main unit lights up. Indicator lamp Abnormality When an abnormal condition occurs, ALARM LED (red) on the front of the main unit lights up. Power safety circuit When an abnormal high-voltage condition occurs, the warning signal is output (open collector output: DC24V, 10mA Max) Outer dimensions 102 (L) × 114 (W) × 37 (H) Mass Ion balance ±20 Ozone generation amount 0.05 (200 mm away from the front of the flow outlet) Max. flow rate /min 0.26 Fan capacity Adjusting Adjustments are made using the flow rate adjusting plate. Operating environmental temperature ℃ 0 to 40 for indoor Accessories 1 power and signal cable (2 m), 1 ground wire (2 m), and 1 flow rate adjusting plate...
-
Page 10: Order Code
1-head type Standard nozzle AC adapter ● ● ● (For Blow Type : DTRY-ELB01 & 02) Note: This adapter cannot be used for the fan type, DTRY-ELB01 DTRY-NZR01 turbo-flow fan type, wide-flow fan type and for Caution The main unit cannot be operated alone. - Page 11 Turbo-flow fan type Main unit Options ■ ■ Turbo-flow fan type AC adapter ● ● (for the turbo-flow fan type and the wide-flow fan type) DTRY-ELT11 DTRY-ELC03 Rating Input: AC100V to AC240V 50/60 Hz 40VA Output: DC24V 750mA Flow rate adjusting plate Optional bracket ●...
- Page 12 : Input power ＋24 VDC #4 [Green] : Ground for power 1-head type ● TVS6-01 Section A-A' DTRY-ELB01 (Throttle valve) Ground terminal Pin location of molex#5557-04R (female) (Nut Ｍ3) Power and signal cable ： VCTF-0.3mm, 2 × 4 wires 4- φ4.5 (Mounting hole) ...
- Page 13 Dimensions (Unit mm) BLOW TYPE ■ Nozzles Standard nozzle Conductive tube ● DTRY-NZR01 ● DTRY-NZR03 Plastic nozzle TSH6-01M (Fitting) M24×1 M24×1 φ4 φ4 Conductive tube (6/4) (31) (538) Stainless steel pipe ● DTRY-NZR02 M24×1 φ3 (152) Flexible pipe ● DTRY-NZR □ Flexible pipe M24×1 φ7...
- Page 14 Pin location of molex#5557-04R (female) ON at supplying power. Front fan guard Rear fan guard 3-M3×0.5 , 4mm deep (Mounting hole) KOGANEI DTRY-ELF01 MADE IN JAPAN Fan capacity selector switch Power and signal connector (molex 5557-04R) Power and signal cable: VCTF-0.3 mm, 2 × 4 wires 10±1...
- Page 15 Turbo-flow fan type ●DTRY-ELT11 Note Flow direction adjusting plate (4 pcs.) Flow rate adjusting plate (provided part) Power and signal cable (Accessory) ●Input power: DC+24V ●Connector pin location and lead wire colors: #1 [white] :Abnormal output #2 [black] :Output GND #3 [red] :Input power DC+24V #4 [green] :Power GND...
-
Page 16: Optional Bracket
Dimensions (Unit mm) Optional Bracket ● (for the fan type) DTRY-ELF31 2- φ3.4, φ6.5 counter bore depth 3.3 φ9 (2pcs. M3 × 0.5, 8 mm length bolts included) 2- φ4.2 (2pcs. M4 × 07, 10mm length bolts included) Optional bracket ●... - Page 17 Wide-flow fan type DTRY-ELW11 ● (100 mm opening type) Power and signal cable (Accessary) 4- φ 4.5 (mounting hole) (provided bracket) ●Input power: DC+24V ●Connector pin location and lead wire colors: #1 [white] :Abnormal output #2 [black] :Output GND #3 [red] :Input power DC+24V #4 [green] :Power GND View from A...
- Page 18 memo memo...
- Page 19 和文カタログ No. C2152-w...
- Page 20 Tel: 310-792-0471 Fax: 310-792-0462 OVERSEAS DIVISION Shinjuku-TX Bldg., 1-3-21, Ohkubo Shinjuku-ku, Tokyo 169-0072 Japan SINGAPORE REPRESENTATIVE OFFICE Tel: 03-5272-8781 Fax: 03-5286-2763 Block 1001, Jalan Bukit Merah #06-08 Singapore 159455 Tel: 2736461 Fax: 2752551 1/‘01 30 CHS ©KOGANEI CORP. PRINTED IN JAPAN RECYCLED PAPER...
