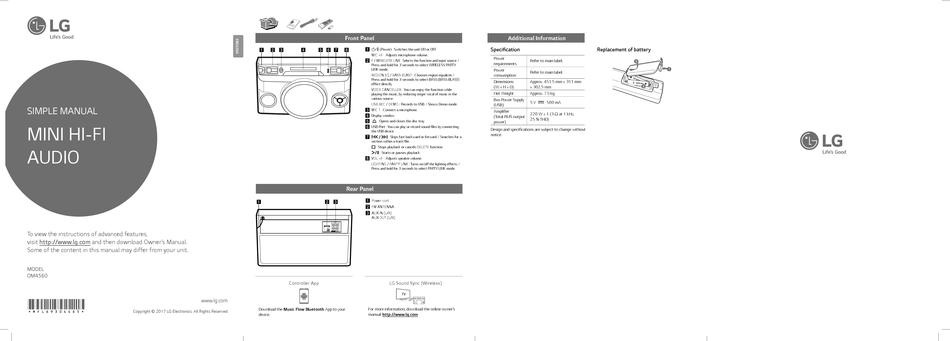

LG OM4560 Simple Manual

SIMPLE MANUAL
MINI HI-FI
AUDIO
To view the instructions of advanced features,
visit http://www.lg.com and then download Owner's Manual.
Some of the content in this manual may differ from your unit.
MODEL
OM4560
www.lg.com
*MFL69304465*
Copyright © 2017 LG Electronics. All Rights Reserved

Front Panel

a b c d e f g h a 1/! (Power) : Switches the unit ON or OFF.
MIC +/- : Adjusts microphone volume.
b F / WIRELESS LINK : Selects the function and input source. /
Press and hold for 3 seconds to select WIRELESS PARTY
LINK mode.
REGION EQ / BASS BLAST : Chooses region equalizer. /
Press and hold for 3 seconds to select BASS (BASS BLAST)
effect directly.
VOICE CANCELLER : You can enjoy the function while
playing the music, by reducing singer vocal of music in the
various source.
USB REC / DEMO : Records to USB. / Shows Demo mode.
c MIC 1 : Connect a microphone.
d Display window
e R : Opens and closes the disc tray.
f USB Port : You can play or record sound files by connecting
the USB device.
g Y/U : Skips fast backward or forward. / Searches for a
section within a track/file.
I : Stops playback or cancels DELETE function.
z : Starts or pauses playback.
h VOL +/- : Adjusts speaker volume.
LIGHTING / PARTY LINK : Turns on/off the lighting effects. /
Press and hold for 3 seconds to select PARTY LINK mode.

Rear Panel

a Power cord
a b c
b FM ANTENNA
c AUX IN (L/R)
AUX OUT (L/R)
Controller App LG Sound Sync (Wireless)
Download the Music Flow Bluetooth App to your For more information, download the online owner' s
device. manual. http://www.lg.com

Additional Information

Specification

Replacement of battery

Power
Refer to main label.
requirements
Power
Refer to main label.
consumption
Dimensions Approx. 451.5 mm x 311 mm
(W x H x D) x 302.5 mm

Net Weight

Approx. 7.5 kg
Bus Power Supply
5 V 0 500 mA
(USB)
Amplifier
220 W x 1 (3 Ω at 1 kHz,
(Total RMS output
25 % THD)
power)
Design and specifications are subject to change without
notice.
